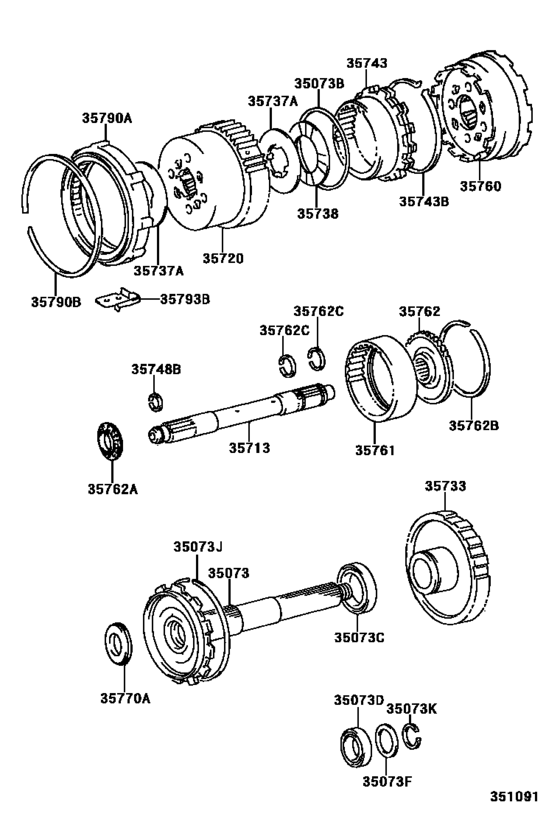

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.1998 - 08.2002] A442F (9801-0208)ATM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35073
|
35073
35073-60100 Shaft Sub-Assy, Output[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35073-60100 |
US $513.97 |
||
|
35073B
|
35073B
90301-99076 Ring, O (For Output Shaft)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-99076 |
US $2.77 |
||
|
35073C
|
35073C
90363-45008 Bearing, Radial Ball (For Output Shaft Front)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90363-45008 |
US $32.26 |
||
|
35073D
|
35073D
90363-40059 Bearing, Radial Ball (For Output Shaft Rear)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90363-40059 |
US $29.57 |
||
|
35073F
|
35073F
90560-40002 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．５，マーク ０ |
90560-40002 |
US $0.70 |
||
|
35073F
|
35073F
90560-40003 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．６，マーク １ |
90560-40003 |
US $1.16 |
||
|
35073F
|
35073F
90560-40004 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．７，マーク ２ |
90560-40004 |
US $1.16 |
||
|
35073F
|
35073F
90560-40005 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．８，マーク ３ |
90560-40005 |
US $1.16 |
||
|
35073J
|
35073J
90521-99042 Ring, Hole Snap (For Output Shaft)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90521-99042 |
US $3.20 |
||
|
35073K
|
35073K
90520-36024 Ring, Shaft Snap (For Output Shaft Rear Bearing)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90520-36024 |
US $1.79 |
||
|
35713
|
35713
35713-60030 Shaft, Intermediate[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35713-60030 |
US $64.79 |
||
|
35720
|
35720
35720-60030 Gear Assy, Front Planetary[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35720-60030 |
US $718.10 |
||
|
35733
|
35733
35733-60030 Gear, Parking Lock[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35733-60030 |
from US $50.22 |
||
|
35737A
|
35737A
35737-60011 Washer, Planetary Carrier Thrust, No.1[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35737-60011 |
US $9.26 |
||
|
35738
|
35738
35738-36020 Washer, Planetary Carrier Thrust, No.2[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35738-36020 |
US $5.64 |
||
|
35743
|
35743
35743-60030 Gear, Front Planetary Ring[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35743-60030 |
US $113.57 |
||
|
35743B
|
35743B
90521-99018 Ring, Hole Snap (For Direct Clutch Flange)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90521-99018 |
US $2.48 |
||
|
35748B
|
35748B
35748-36010 Ring, Intermediate Shaft Oil Seal[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35748-36010 |
US $5.42 |
||
|
35760
|
35760
35760-60050 Gear Assy, Rear Planetary[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35760-60050 |
US $762.94 |
||
|
35761
|
35761
35761-60030 Gear, Rear Planetary Ring[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35761-60030 |
from US $123.76 |
||
|
35762
|
35762
35762-60030 Flange, Rear Planetary Ring Gear[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35762-60030 |
US $87.36 |
||
|
35762A
|
35762A
90374-32006 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90374-32006 |
US $8.56 |
||
|
35762B
|
35762B
90521-99041 Ring, Hole Snap (For Output Shaft)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90521-99041 |
US $3.20 |
||
|
35762C
|
35762C
90520-23063 Ring, Shaft Snap (For Rear Planetary Ring Gear)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90520-23063 |
US $1.16 |
||
|
35770A
|
35770A
90374-32006 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90374-32006 |
US $8.56 |
||
|
35790A
|
35790A
35790-36020 Clutch Assy, 1 Way[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35790-36020 |
US $354.68 |
||
|
35790B
|
35790B
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90521-99109 |
US $3.40 |
||
|
35793B
|
35793B
35793-60010 Retainer, 1 Way Clutch[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35793-60010 |
US $4.37 |
