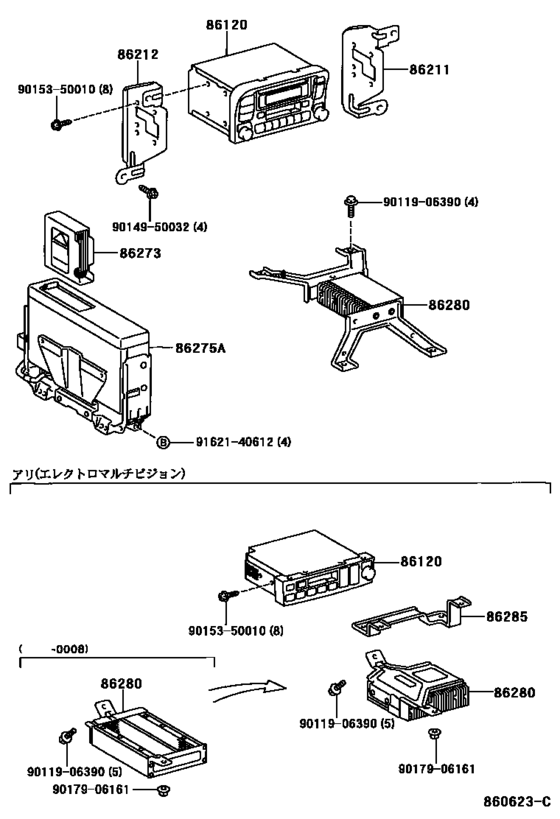

Radio Receiver & Amplifier & Condenser ([01.1998 - 08.2002] (9801-0208)) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-2A290 Receiver Assy, Radio[01.1998 - 07.1999] HDJ101,UZJ100..VX ＭＡＴＳＵＳＨＩＴＡ，ＩＤ＝５５４０４,ｱﾘ(ﾌﾞﾛﾝｽﾞ UV ｶﾂﾄ ｻｲﾄﾞ ｶﾞﾗｽ) |
86120-2A290 |
US $1,266.72 |
||
|
86120
|
86120
86120-2B530
Receiver Assy, Radio
[01.1998 - 08.2002] HDJ101,UZJ100..VX ＭＡＴＳＵＳＨＩＴＡ，ＩＤ＝５５４０３ |
86120-2B530 |
— | ||
|
86211
|
86211
86211-60070
Bracket, Radio, No.1
[01.1998 - 08.1998] HDJ101,UZJ100 ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86211-60070 |
— | ||
| replacement | |||||
|
86211
|
86211
86211-60071
Bracket, Radio, No.1
[01.1998 - 08.1998] HDJ101,UZJ100 ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86211-60071 |
— | ||
|
86211
|
86211
86211-60071
Bracket, Radio, No.1
[08.1998 - 08.2002] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86211-60071 |
— | ||
|
86212
|
86212
86212-60070
Bracket, Radio, No.2
[01.1998 - 08.1998] HDJ101,UZJ100 ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86212-60070 |
— | ||
| replacement | |||||
|
86212
|
86212
86212-60071
Bracket, Radio, No.2
[01.1998 - 08.1998] HDJ101,UZJ100 ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86212-60071 |
— | ||
|
86212
|
86212
86212-60071
Bracket, Radio, No.2
[08.1998 - 08.2002] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾗｼﾞｵﾚｽ 6ｽﾋﾟ-ｶ OR 5.8 ｲﾝﾁ ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86212-60071 |
— | ||
|
86273
|
86273
86273-50060 Magazine, Disc Player[08.1998 - 10.1998] HDJ101,UZJ100 |
86273-50060 |
US $74.95 |
||
|
86275A
|
86275A
86270-60030 Changer, Disc Player[08.1998 - 10.1998] HDJ101,UZJ100 |
86270-60030 |
US $2,533.44 |
||
|
86280
|
86280
86280-60140 Amplifier Assy, Stereo Component[08.1998 - 10.1998] HDJ101,UZJ100..VX |
86280-60140 |
US $1,011.92 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.16 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.89 |
||
