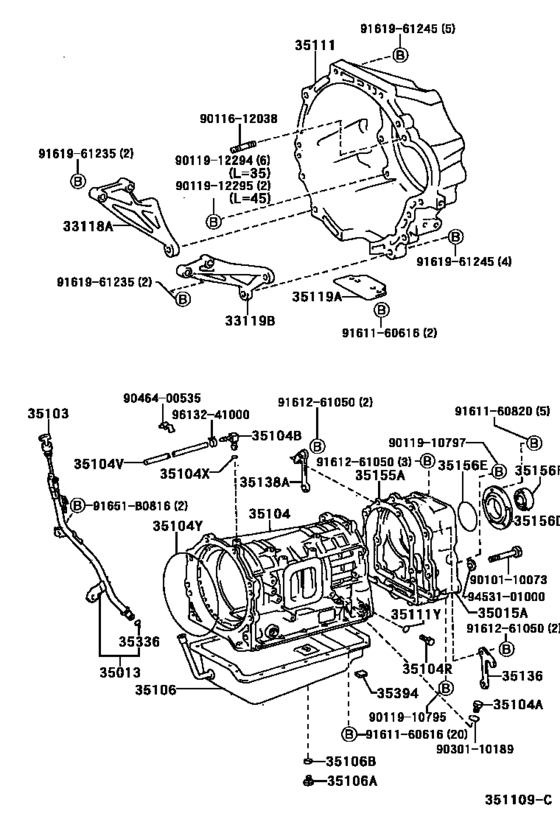

Transmission Case & Oil Pan (Atm) ([01.1998 - 08.2002] A442F (9801-0208)HDJ101..ATM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118A
|
33118A
33118-60060 Plate, Stiffener, Rh(Mtm)[01.1998 - 08.2002] HDJ101..ATM |
33118-60060 |
from US $58.01 |
||
|
33119B
|
33119B
33119-60070 Plate, Stiffener, Lh(Mtm)[01.1998 - 08.2002] HDJ101..ATM |
33119-60070 |
US $47.70 |
||
|
35013
|
35013
35013-60190
Tube Sub-Assy, Transmission Oil Filler
[01.1998 - 08.2002] HDJ101..ATM |
35013-60190 |
— | ||
|
35015A
|
35015A
35015-60080 Adapter Sub-Assy, Transmission Case, Rear[01.1998 - 08.2002] HDJ101..ATM |
35015-60080 |
US $605.70 |
||
|
35103
|
35103
35103-60150 Gage Sub-Assy, Transmission Oil Level[01.1998 - 08.2002] HDJ101..ATM |
35103-60150 |
US $18.78 |
||
|
35104
|
35104
35104-60160 Case Sub-Assy, Automatic Transmission[01.1998 - 08.2002] HDJ101..ATM |
35104-60160 |
US $1,387.57 |
||
|
35104A
|
35104A
90341-13001 Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)[01.1998 - 08.2002] HDJ101..ATM |
90341-13001 |
US $2.33 |
||
|
35104B
|
35104B
90930-03094 Plug, Breather, No.1 (Atm)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90930-03094 |
from US $3.33 |
||
|
35104R
|
35104R
90341-08001 Plug, Transaxle Case, No.1[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90341-08001 |
from US $1.48 |
||
|
35104V
|
35104V
90445-11113 Hose (For Breather Plug)[01.1998 - 08.2002] HDJ101..ATM |
90445-11113 |
US $5.53 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-06005 |
from US $2.24 |
||
|
35104Y
|
35104Y
90301-99067 Ring, O (For Automatic Transmission Case)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-99067 |
from US $3.23 |
||
|
35106
|
35106
35106-60050 Pan Sub-Assy, Automatic Transmission Oil[01.1998 - 08.2002] HDJ101..ATM |
35106-60050 |
from US $145.02 |
||
|
35106A
|
35106A
90341-18057 Drain Plug (with Magnet)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90341-18057 |
from US $6.27 |
||
|
35106B
|
35106B
12157-10010 Gasket (For Drain Plug)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
12157-10010 |
from US $0.72 |
||
|
35111
|
35111
35111-60041 Housing, Automatic Transmission[01.1998 - 08.2002] HDJ101..ATM |
35111-60041 |
US $768.77 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-06196 |
from US $2.36 |
||
|
35119A
|
35119A
35119-36010 Cover, Transmission Housing[01.1998 - 08.2002] HDJ101..ATM |
35119-36010 |
US $19.22 |
||
|
35136
|
35136
35136-60020 Hanger, Transmission,no.1[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35136-60020 |
US $7.57 |
||
|
35138A
|
35138A
35136-60020 Hanger, Transmission,no.1[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35136-60020 |
US $7.57 |
||
|
35155A
|
35155A
35182-60010 Gasket, Transmission Case Adapter[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35182-60010 |
from US $8.24 |
||
|
35156D
|
35156D
35156-60010 Cover, Transmission Case Rear Adapter[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35156-60010 |
US $15.72 |
||
|
35156E
|
35156E
90301-81005 Ring, O(Transmission Case Rear Adapter)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-81005 |
from US $3.44 |
||
|
35156F
|
35156F
90311-48016 Seal, Oil(For Transmission Oil Pump Cover)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90311-48016 |
from US $5.56 |
||
|
35336
|
35336
90301-09011 Ring, O (For Transmission Oil Filler Tube)[01.1998 - 08.2002] HDJ101..ATM |
90301-09011 |
US $4.84 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35394-30011 |
from US $5.43 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
9010110073
|
9010110073
90101-10073 Shaft, Clutch Pedal |
90101-10073 |
US $1.31 |
||
|
9011612038
|
9011612038
90116-12038 New Genuine Part |
90116-12038 |
US $5.53 |
||
|
9011910795
|
9011910795
90119-10795 New Genuine Part |
90119-10795 |
US $3.06 |
||
|
9011910797
|
9011910797
90119-10797 New Genuine Part |
90119-10797 |
US $3.20 |
||
|
9011912294
|
9011912294
90119-12294 Bolt (For Transmission Housing & Case Setting) |
90119-12294 |
US $2.04 |
||
|
9011912295
|
9011912295
90119-12295 Bolt (For Transmission Housing & Case Setting) |
90119-12295 |
US $2.04 |
||
|
9030110189
|
9030110189
90301-10189 Ring, O(For Oil Cooler Tube Union) |
90301-10189 |
from US $2.57 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.24 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
