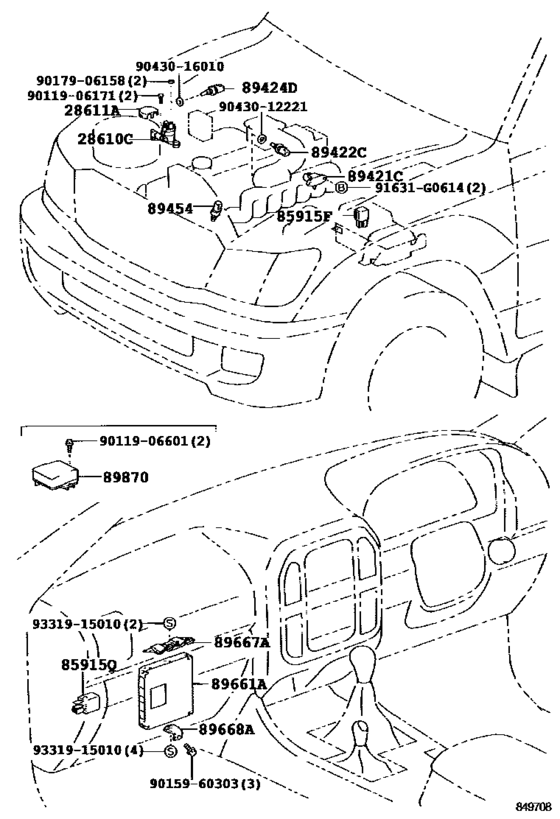

Electronic Controled Diesel (Ecd) ([01.1998 - ] (9801- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610C
|
28610C
28610-17090
Relay Assy, Intake Heater
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28610-17090 |
— | ||
| replacement | |||||
|
28610C
|
28610C
28610-17091 Relay Assy, Intake Heater[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28610-17091 |
US $197.43 |
||
|
28611A
|
28611A
28611-55010 Cover, Glow Plug Relay[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28611-55010 |
from US $4.02 |
||
|
85915F
|
85915F
85915-30050 Relay, Main[01.1998 - 08.2002] HDJ101 |
85915-30050 |
from US $71.57 |
||
|
85915Q
|
85915Q
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2002] HDJ101 |
90987-02012 |
from US $25.86 |
||
|
89421C
|
89421C
89421-20210 Sensor, Turbo Pressure (For Diesel Turbo)[08.2001 - 08.2002] HDJ101 |
89421-20210 |
from US $154.16 |
||
|
89421C
|
89421C
89421-21010 Sensor Assy, Vacuum (For E.f.i.)[01.1998 - 08.2001] HDJ101 |
89421-21010 |
US $154.16 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[01.1998 - 08.2002] HDJ101 |
89422-35010 |
from US $43.53 |
||
|
89424D
|
89424D
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[01.1998 - 08.2002] HDJ101 |
89424-60010 |
from US $73.08 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[01.1998 - 08.2002] HDJ101 |
89454-60010 |
from US $36.69 |
||
|
89661A
|
89661A
89661-60730
Computer, Engine Control
[01.1998 - 05.2000] HDJ101..ATM |
89661-60730 |
— | ||
|
89661A
|
89661A
89666-60420
Computer, Engine Control
[05.2000 - 08.2002] HDJ101..ATM |
89666-60420 |
— | ||
|
89667A
|
89667A
89667-60140 Bracket, Engine Control Computer[01.1998 - 08.2002] HDJ101 |
89667-60140 |
from US $10.24 |
||
|
89668A
|
89668A
89668-60150
Bracket, Engine Control Computer, No.2
[01.1998 - 08.2002] HDJ101 |
89668-60150 |
— | ||
|
89870
|
89870
89870-60010 Driver Assy, Spill Valve Control[01.1998 - 08.2002] HDJ101 |
89870-60010 |
from US $623.58 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
