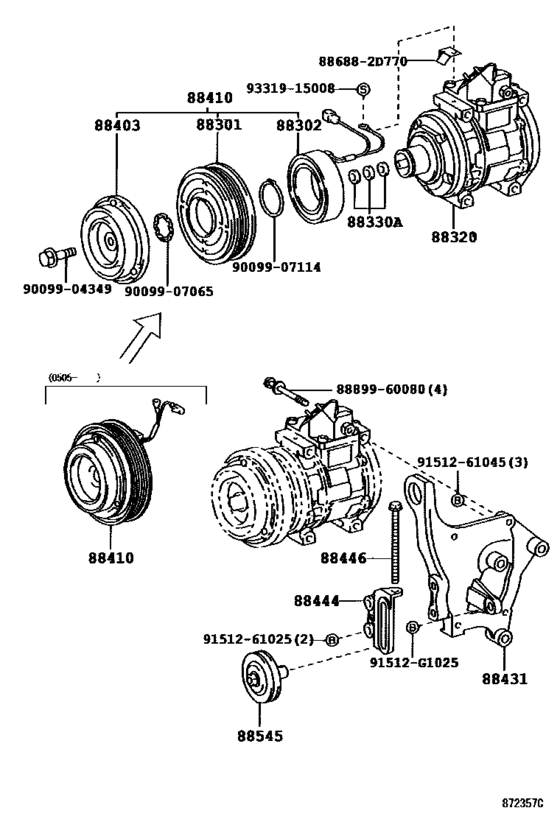

Heating & Air Conditioning - Compressor ([01.1998 - ] (9801- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-6A020
Rotor Sub-Assy, Magnet Clutch
[01.1998 - 08.2002] HDJ101 |
88412-6A020 |
— | ||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[01.1998 - 08.2002] HDJ101 |
88411-2A030 |
from US $75.24 |
||
|
88320
|
88320
88320-60700
Compressor Assy, Cooler
[01.1998 - 08.2002] HDJ101 |
88320-60700 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[01.1998 - 08.2002] HDJ101,UZJ100 |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[01.1998 - 08.2002] HDJ101,UZJ100 |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-6A010 Clutch Assy, Magnet[01.1998 - 08.2002] HDJ101 |
88410-6A010 |
from US $447.85 |
||
|
88431
|
88431
88431-60260 Bracket, Compressor Mounting, No.1[01.1998 - 08.2002] HDJ101 |
88431-60260 |
US $157.25 |
||
|
88444
|
88444
88444-60120 Bracket, Idle Pulley[01.1998 - 08.2002] HDJ101 |
88444-60120 |
from US $63.21 |
||
|
88446
|
88446
88446-60030 Bolt, Idle Pulley[01.1998 - 08.2002] HDJ101 |
88446-60030 |
from US $2.97 |
||
|
88446
|
88446
90109-08253 Bolt, Idle Pulley[01.1998 - 08.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
90109-08253 |
from US $1.41 |
||
|
88545
|
88545
88440-60060 Pulley Assy, Idle[01.1998 - 08.2002] HDJ101 |
88440-60060 |
from US $166.40 |
||
|
88545
|
88545
88440-60070 Pulley Assy, Idle[01.1998 - 08.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
88440-60070 |
from US $96.76 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.93 |
||
|
886882D770
|
886882D770
88688-2D770
Bracket, Cooler Compressor
|
88688-2D770 |
— | ||
|
8889960080
|
8889960080
88899-60080 Cover, Evaporator |
88899-60080 |
from US $3.14 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.93 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.51 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
