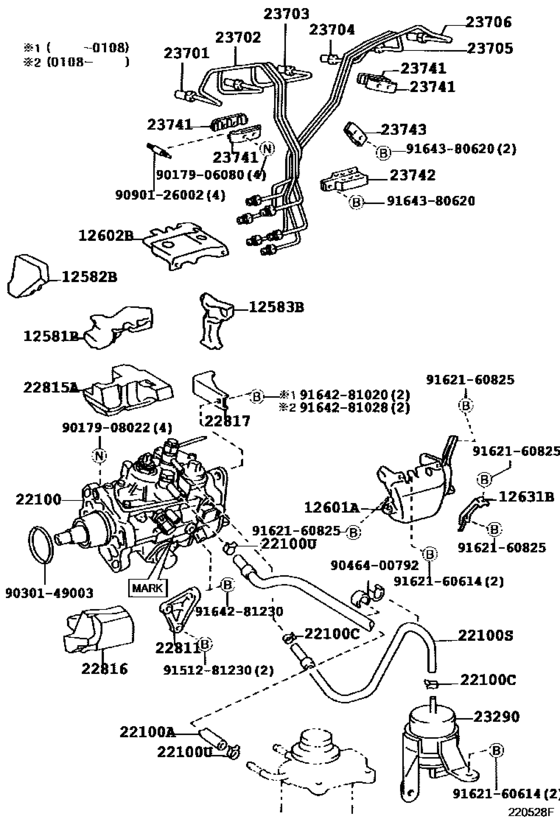

Injection Pump Assembly ([01.1998 - 08.2002] (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12581B
|
12581B
12581-17020 Insulator, Cylinder Block, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
12581-17020 |
US $29.35 |
||
|
12582B
|
12582B
12582-17010 Insulator, Cylinder Block, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
12582-17010 |
US $27.22 |
||
|
12583B
|
12583B
12583-17010 Insulator, Cylinder Block, No.3[01.1998 - 08.2002] 1HDFTE..HDJ101 |
12583-17010 |
US $18.17 |
||
|
12601A
|
12601A
12601-17010 Insulator, Cylinder Block[01.1998 - 08.2002] 1HDFTE..HDJ101 |
12601-17010 |
from US $114.32 |
||
|
12602B
|
12602B
12602-17010 Cover Sub-Assy, Engine, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
12602-17010 |
from US $48.24 |
||
|
12631B
|
12631B
12631-17010 Bracket, Engine Cover[01.1998 - 05.1999] 1HDFTE..HDJ101 |
12631-17010 |
US $14.56 |
||
| replacement | |||||
|
12631B
|
12631B
12631-17012
Bracket, Engine Cover
[01.1998 - 05.1999] 1HDFTE..HDJ101 |
12631-17012 |
— | ||
|
12631B
|
12631B
12631-17011 Bracket, Engine Cover[05.1999 - 08.2002] 1HDFTE..HDJ101 |
12631-17011 |
US $14.56 |
||
| replacement | |||||
|
12631B
|
12631B
12631-17012
Bracket, Engine Cover
[05.1999 - 08.2002] 1HDFTE..HDJ101 |
12631-17012 |
— | ||
|
22100
|
22100
22100-1C170 Pump Assy, Injection Or Supply[01.1998 - 07.2001] 1HDFTE..HDJ101 マーク＝２２１００−１Ｃ１７０ |
22100-1C170 |
US $5,503.68 |
||
| replacements | |||||
|
22100
|
22100
22100-1C420 Pump Assy, Injection Or Supply[01.1998 - 07.2001] 1HDFTE..HDJ101 マーク＝２２１００−１Ｃ１７０ |
22100-1C420 |
from US $5,244.36 |
||
|
22100
|
22100
82989-36010 Wire, Connecting Repair[01.1998 - 07.2001] 1HDFTE..HDJ101 マーク＝２２１００−１Ｃ１７０ |
82989-36010 |
US $7.86 |
||
|
22100
|
22100
82999-12020 Wire Sub-assy, Oil Temperature Sender[01.1998 - 07.2001] 1HDFTE..HDJ101 マーク＝２２１００−１Ｃ１７０ |
82999-12020 |
US $3.05 |
||
|
22100
|
22100
22100-1C420 Pump Assy, Injection Or Supply[07.2001 - 08.2002] 1HDFTE..HDJ101 マーク＝２２１００−１Ｃ４２０ |
22100-1C420 |
from US $5,244.36 |
||
|
22100A
|
22100A
23271-17120 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23271-17120 |
US $46.37 |
||
|
22100C
|
22100C
96132-41300
Clip, No.4(For Idle-Up Hose)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
96132-41300 |
— | ||
| replacement | |||||
|
22100C
|
22100C
96132-51300 Clip(For Ventilation Hose No.2)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
96132-51300 |
from US $1.44 |
||
|
22100S
|
22100S
23273-17040 Hose, Fuel(For Injection Pump To Fuel Pipe)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23273-17040 |
US $24.70 |
||
|
22100U
|
22100U
90467-18002
Clip(For Ventilation Hose)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90467-18002 |
— | ||
| replacement | |||||
|
22100U
|
22100U
90467-18008 Clip(For Water By-Pass Hose No.2)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90467-18008 |
from US $1.08 |
||
|
22811
|
22811
22811-17030 Stay, Injection Pump, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
22811-17030 |
US $10.83 |
||
|
22815A
|
22815A
22815-17020 Insulator, Injection Pump[01.1998 - 08.2002] 1HDFTE..HDJ101 |
22815-17020 |
US $23.41 |
||
|
22816
|
22816
22816-17010 Insulator, Injection Pump, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．１ |
22816-17010 |
US $21.67 |
||
|
22817
|
22817
22817-17010
Bracket, Pump Stay
[01.1998 - 06.2001] 1HDFTE..HDJ101 |
22817-17010 |
— | ||
|
22817
|
22817
22817-17020 Bracket, Pump Stay[06.2001 - 08.2002] 1HDFTE..HDJ101 |
22817-17020 |
US $52.59 |
||
|
23290
|
23290
23290-17010 Damper Assy, Fuel Suction[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23290-17010 |
from US $47.41 |
||
|
23701
|
23701
23701-17060 Pipe Sub-Assy, Injection, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23701-17060 |
from US $49.74 |
||
|
23702
|
23702
23702-17060 Pipe Sub-Assy, Injection, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23702-17060 |
from US $47.39 |
||
|
23703
|
23703
23703-17060 Pipe Sub-Assy, Injection, No.3[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23703-17060 |
from US $47.63 |
||
|
23704
|
23704
23704-17060 Pipe Sub-Assy, Injection, No.4[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23704-17060 |
from US $48.47 |
||
|
23705
|
23705
23705-17060 Pipe Sub-Assy, Injection, No.5[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23705-17060 |
from US $49.21 |
||
|
23706
|
23706
23706-17060 Pipe Sub-Assy, Injection, No.6[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23706-17060 |
from US $52.63 |
||
|
23741
|
23741
23741-17050 Clamp, Injection Pipe, No.1[01.1998 - 02.2001] 1HDFTE..HDJ101 |
23741-17050 |
US $19.95 |
||
| replacement | |||||
|
23741
|
23741
23741-17051 Clamp, Injection Pipe, No.1[01.1998 - 02.2001] 1HDFTE..HDJ101 |
23741-17051 |
US $19.99 |
||
|
23741
|
23741
23741-17051 Clamp, Injection Pipe, No.1[02.2001 - 08.2002] 1HDFTE..HDJ101 |
23741-17051 |
US $19.99 |
||
|
23742
|
23742
23742-17030 Clamp, Injection Pipe, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23742-17030 |
from US $21.20 |
||
|
23743
|
23743
23743-17010 Clamp, Injection Pipe, No.3[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23743-17010 |
from US $9.58 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.48 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.15 |
||
|
9046400792
|
9046400792
90464-00792 CLAMP |
90464-00792 |
US $3.32 |
||
|
9090126002
|
9090126002
90901-26002 STUD, HEX LOBULAR |
90901-26002 |
from US $4.48 |
||
|
9151281230
|
9151281230
91512-81230 BOLT FLANGE |
91512-81230 |
US $4.66 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9164281020
|
9164281020
91642-81020
New Genuine Part
|
91642-81020 |
— | ||
| replacement | |||||
|
9164281020
|
9164281020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
9164281028
|
9164281028
91642-81028 New Genuine Part |
91642-81028 |
US $2.51 |
||
|
9164281230
|
9164281230
91642-81230
BOLT WWASHER
|
91642-81230 |
— | ||
|
9164380620
|
9164380620
91643-80620 New Genuine Part |
91643-80620 |
US $1.46 |
||
| replacement | |||||
|
9164380620
|
9164380620
91641-80616 BOLTWWASHER |
91641-80616 |
from US $0.80 |
||
