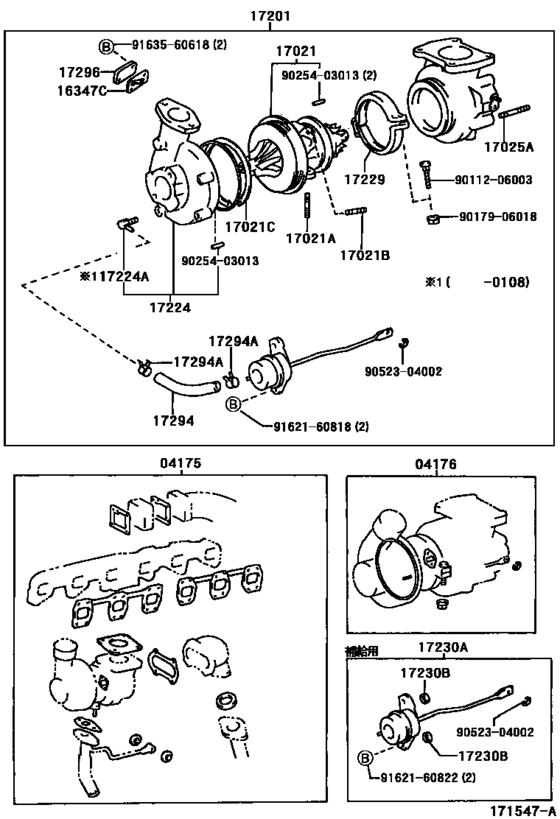

Manifold ([01.1998 - 08.2002] (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-17030 Gasket Kit, Turbocharger[01.1998 - 08.2002] 1HDFTE..HDJ101 |
04175-17030 |
from US $161.37 |
||
|
04176
|
04176
04176-17010 Seal Kit, Turbocharger[01.1998 - 08.2002] 1HDFTE..HDJ101 |
04176-17010 |
from US $16.16 |
||
|
16347C
|
16347C
16347-42020 Gasket, Water By-Pass[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16347-42020 |
from US $2.64 |
||
|
17021
|
17021
17021-17010 Housing Sub-Assy, Bearing[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17021-17010 |
US $1,630.72 |
||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-08158 |
US $5.56 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-06048 |
from US $0.65 |
||
|
17021C
|
17021C
90521-99023 Ring, Hole Snap(For Bearing Housing)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90521-99023 |
US $5.53 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-10125 |
from US $1.25 |
||
|
17201
|
17201
17201-17040 Turbocharger Sub-Assy[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17201-17040 |
from US $2,779.50 |
||
|
17224
|
17224
17024-17030 Housing, Compressor[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17024-17030 |
US $346.53 |
||
|
17224
|
17224
17224-17020 Housing, Compressor[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17224-17020 |
US $256.26 |
||
| replacements | |||||
|
17224
|
17224
17024-17030 Housing, Compressor[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17024-17030 |
US $346.53 |
||
|
17224
|
17224
90445-12265 Hose, Actuator[01.1998 - 08.2001] 1HDFTE..HDJ101 |
90445-12265 |
US $3.99 |
||
|
17224A
|
17224A
90404-51040 Union, No.1[01.1998 - 08.2001] 1HDFTE..HDJ101 |
90404-51040 |
US $4.84 |
||
|
17229
|
17229
17229-46010 Band, V[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17229-46010 |
from US $20.60 |
||
|
17230A
|
17230A
17230-19035 Repair Actuaor Assy, W/bracket[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17230-19035 |
US $518.34 |
||
|
17230B
|
17230B
90201-08081 Washer, Plate(For Repair Actuator Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．５ |
90201-08081 |
US $2.51 |
||
|
17230B
|
17230B
90201-08082 Washer, Plate(For Repair Actuator Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０ |
90201-08082 |
US $1.79 |
||
|
17230B
|
17230B
90201-08086 Washer, Plate(For Repair Actuator Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０ |
90201-08086 |
US $1.46 |
||
|
17230B
|
17230B
90201-08087 Washer, Plate(For Repair Actuator Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝３．０ |
90201-08087 |
US $1.89 |
||
|
17294
|
17294
17294-17010 Hose, Actuator[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17294-17010 |
US $21.84 |
||
|
17294
|
17294
90445-12265 Hose, Actuator[08.2001 - 08.2002] 1HDFTE..HDJ101 |
90445-12265 |
US $3.99 |
||
|
17294A
|
17294A
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
96132-41100 |
— | ||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
96132-51100 |
from US $1.39 |
||
|
17296
|
17296
17296-28010 Plate, Bearing Housing, Side[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17296-28010 |
US $10.57 |
||
|
9011206003
|
9011206003
90112-06003 New Genuine Part |
90112-06003 |
US $4.80 |
||
|
9017906018
|
9017906018
90179-06018 New Genuine Part |
90179-06018 |
US $0.83 |
||
|
9025403013
|
9025403013
90254-03013 New Genuine Part |
90254-03013 |
US $0.70 |
||
|
9052304002
|
9052304002
90523-04002 RING |
90523-04002 |
US $1.43 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
