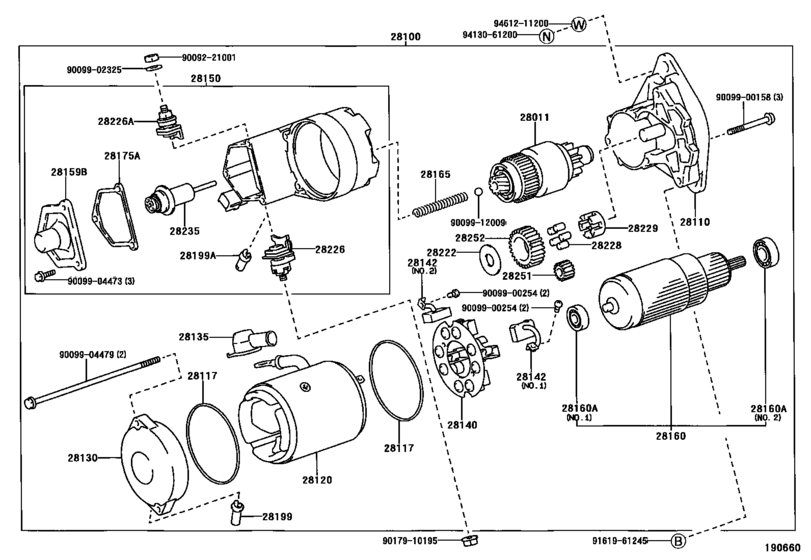

Starter ([01.1998 - 08.2002] 12V 3.0KW (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28011-54010 |
from US $184.93 |
||
|
28100
|
28100
28100-17070
Starter Assy
[01.1998 - 08.2002] 1HDFTE..HDJ101 １２Ｖ ３．０ＫＷ |
28100-17070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-17081 Starter Assy[01.1998 - 08.2002] 1HDFTE..HDJ101 １２Ｖ ３．０ＫＷ |
28100-17081 |
US $1,494.72 |
||
|
28110
|
28110
28115-17070 Housing Assy, Starter Drive[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28115-17070 |
US $96.62 |
||
|
28117
|
28117
28117-67090 Rubber(For Starter Yoke)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28117-67090 |
US $5.64 |
||
|
28120
|
28120
28120-17070
Yoke Assy, Starter
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28120-17070 |
— | ||
|
28130
|
28130
28130-17070
Frame Assy, Starter Commutator End
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28130-17070 |
— | ||
|
28135
|
28135
28135-67090
Bushing, Terminal Insulating
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28135-67090 |
— | ||
|
28140
|
28140
28140-67090 Holder Assy, Starter Brush[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28140-67090 |
US $42.94 |
||
|
28142
|
28142
28142-67090 Brush, Starter[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．１，ポジテイブ |
28142-67090 |
from US $5.24 |
||
|
28142
|
28142
28142-67100 Brush, Starter[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．２，ネガティブ |
28142-67100 |
from US $4.81 |
||
|
28150
|
28150
28150-17070 Switch Assy, Magnet Starter[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28150-17070 |
US $353.81 |
||
|
28159B
|
28159B
28159-17030
Cover, Magnet Switch
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28159-17030 |
— | ||
|
28160
|
28160
28160-67090 Armature Assy, Starter[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28160-67090 |
US $283.92 |
||
|
28160A
|
28160A
90099-10215
Bearing, Starter Armature
[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．２ |
90099-10215 |
— | ||
|
28160A
|
28160A
90099-65030
Bearing, Starter Armature
[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．１ |
90099-65030 |
— | ||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28175-56310 |
from US $1.67 |
||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-54190 Cover, Starter End Frame[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28199-54190 |
US $1.92 |
||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28222-77090 |
— | ||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28226-54320 |
from US $10.01 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28226-54220 |
from US $11.21 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28235-17030 |
from US $25.44 |
||
|
28251
|
28251
28251-67090
Pinion, Starter Drive
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28251-67090 |
— | ||
|
28252
|
28252
28254-67090
Gear, Starter Idle
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
28254-67090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $0.42 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.28 |
||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904479
|
9009904479
90099-04479
New Genuine Part
|
90099-04479 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.97 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.70 |
||
