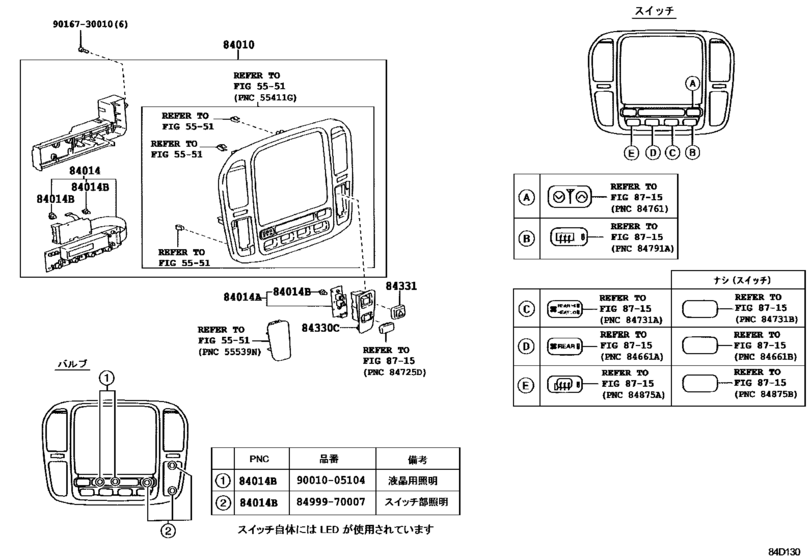

Switch & Relay & Computer ([01.1998 - 08.2002] ｾﾝﾀｸﾗｽﾀ ｲﾝﾃｸﾞﾚｰｼｮﾝ (9801-0208)CYG,VXL) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010
|
84010
84012-60070
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ101,UZJ100 ﾅｼ(ﾗｼﾞｵ) |
84012-60070 |
— | ||
| replacement | |||||
|
84010
|
84010
84012-60071
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ101,UZJ100 ﾅｼ(ﾗｼﾞｵ) |
84012-60071 |
— | ||
|
84010
|
84010
84012-60071
Switch Assy, Center Cluster Integration
[11.1998 - 05.2000] HDJ101,UZJ100..VX,VXL ﾅｼ(ﾗｼﾞｵ) |
84012-60071 |
— | ||
|
84010
|
84010
84012-60072
Switch Assy, Center Cluster Integration
[05.2000 - 08.2000] HDJ101..MTM; HDJ101,UZJ100..ATM..(VX,VXL) ﾅｼ(ﾗｼﾞｵ) |
84012-60072 |
— | ||
|
84010
|
84010
84012-60130
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ101,UZJ100..VXL |
84012-60130 |
— | ||
| replacement | |||||
|
84010
|
84010
84012-60131
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ101,UZJ100..VXL |
84012-60131 |
— | ||
|
84010
|
84010
84012-60131
Switch Assy, Center Cluster Integration
[11.1998 - 05.2000] HDJ101,UZJ100..VXL |
84012-60131 |
— | ||
|
84010
|
84010
84012-60132
Switch Assy, Center Cluster Integration
[05.2000 - 08.2002] HDJ101..ATM;UZJ100..VXL |
84012-60132 |
— | ||
|
84010
|
84010
84012-60160
Switch Assy, Center Cluster Integration
[01.1998 - 05.2000] HDJ101,UZJ100..VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
84012-60160 |
— | ||
| replacement | |||||
|
84010
|
84010
84012-60161
Switch Assy, Center Cluster Integration
[01.1998 - 05.2000] HDJ101,UZJ100..VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
84012-60161 |
— | ||
|
84010
|
84010
84012-60161
Switch Assy, Center Cluster Integration
[05.2000 - 08.2002] HDJ101,UZJ100..VXL ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 7ｽﾋﾟ-ｶ) |
84012-60161 |
— | ||
|
84014
|
84014
84014-60070
Board Sub-Assy, Printed Wire Integration
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
84014-60070 |
— | ||
|
84014
|
84014
84014-60100
Board Sub-Assy, Printed Wire Integration
[01.1998 - 05.2000] HDJ101,UZJ100..VXL ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 7ｽﾋﾟ-ｶ) |
84014-60100 |
— | ||
| replacement | |||||
|
84014
|
84014
84014-60101
Board Sub-Assy, Printed Wire Integration
[01.1998 - 05.2000] HDJ101,UZJ100..VXL ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 7ｽﾋﾟ-ｶ) |
84014-60101 |
— | ||
|
84014
|
84014
84014-60101
Board Sub-Assy, Printed Wire Integration
[05.2000 - 08.2002] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
84014-60101 |
— | ||
|
84014A
|
84014A
84014-60120
Board Sub-Assy, Printed Wire Integration, No.2
[01.1998 - 07.1998] HDJ101,UZJ100 |
84014-60120 |
— | ||
| replacement | |||||
|
84014A
|
84014A
84014-60140
Board Sub-Assy, Printed Wire Integration, No.2
[01.1998 - 07.1998] HDJ101,UZJ100 |
84014-60140 |
— | ||
|
84014A
|
84014A
84014-60140
Board Sub-Assy, Printed Wire Integration, No.2
[07.1998 - 08.2002] HDJ101,UZJ100 |
84014-60140 |
— | ||
|
84014B
|
84014B
84999-70007 Bulb, Air Conditioner Control[01.1998 - 08.2002] HDJ101,UZJ100..CYG,VXL １４Ｖ １．４Ｗ,ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),照明 |
84999-70007 |
from US $7.30 |
||
|
84014B
|
84014B
90010-05104 Bulb, Air Conditioner Control[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL １４Ｖ １．１２Ｗ,照明 |
90010-05104 |
US $2.09 |
||
|
84330C
|
84330C
84332-60210
Cover, Hazard Warning Signal Switch
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
84332-60210 |
— | ||
|
84331
|
84331
84331-60040
Knob, Hazard Warning Signal Switch
[01.1998 - 08.2002] HDJ101,UZJ100 |
84331-60040 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
