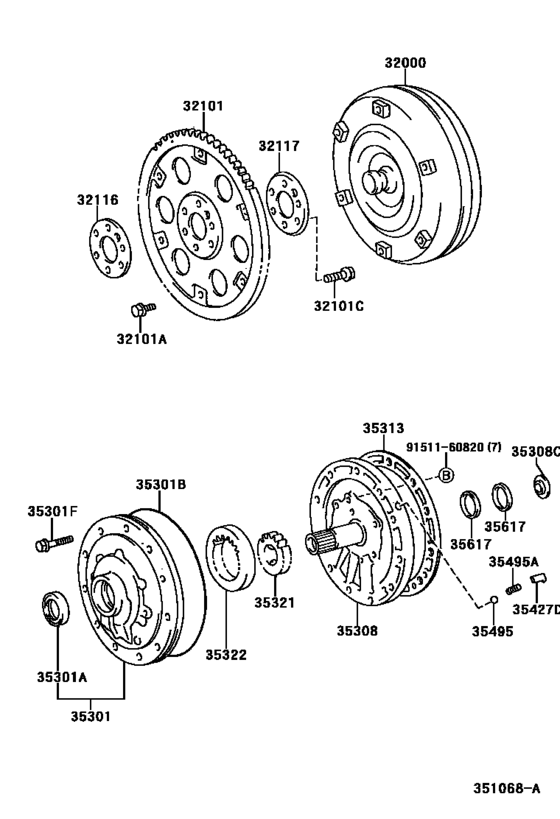

Torque Converter, Front Oil Pump & Chain (Atm) ([01.1998 - 08.2002] A442F (9801-0208)ATM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-60150
Converter Assy, Torque
[01.1998 - 08.2001] HDJ101..ATM |
32000-60150 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-60200 Converter Assy, Torque[01.1998 - 08.2001] HDJ101..ATM |
32000-60200 |
US $2,166.53 |
||
|
32000
|
32000
32000-60200 Converter Assy, Torque[08.2001 - 08.2002] HDJ101..ATM |
32000-60200 |
US $2,166.53 |
||
|
32101
|
32101
32101-60040 Gear Sub-Assy, Drive Plate & Ring[01.1998 - 08.2002] HDJ101..ATM |
32101-60040 |
US $334.88 |
||
|
32101A
|
32101A
90119-10789 Bolt(For Drive Plate & Torque Converter Setting)[01.1998 - 08.2002] HDJ101..ATM ＊１０−１．２５ＰＸ１４−９,グリーン |
90119-10789 |
US $1.38 |
||
|
32101A
|
32101A
90119-10790
Bolt(For Drive Plate & Torque Converter Setting)
[01.1998 - 08.2002] HDJ101..ATM ＊１０−１．２５ＰＸ１４−９,ブラック |
90119-10790 |
— | ||
| replacement | |||||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[01.1998 - 08.2002] HDJ101..ATM ＊１０−１．２５ＰＸ１４−９,ブラック |
90119-10954 |
US $2.51 |
||
|
32101C
|
32101C
90105-12198 Bolt, Hexagon(For Drive Plate Setting)[01.1998 - 08.2002] HDJ101..ATM |
90105-12198 |
US $5.56 |
||
|
32117
|
32117
32117-60030 Spacer, Drive Plate, Rear[01.1998 - 08.2002] HDJ101..ATM |
32117-60030 |
US $20.38 |
||
|
35301
|
35301
35301-60020 Body Sub-Assy, Front Oil Pump[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35301-60020 |
from US $304.10 |
||
|
35301A
|
35301A
90311-42010 Seal, Oil (For Front Oil Pump)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90311-42010 |
from US $7.37 |
||
|
35301B
|
35301B
90301-99029 Ring, O (For Front Oil Pump Body)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90301-99029 |
from US $5.02 |
||
|
35301F
|
35301F
90105-08212 Bolt (For Front Oil Pump Setting)[01.1998 - 08.2002] HDJ101,UZJ100..ATM ＊８−１．２５ＰＸ６０−３０ |
90105-08212 |
US $1.16 |
||
|
35301F
|
35301F
90105-08213 Bolt (For Front Oil Pump Setting)[01.1998 - 08.2002] HDJ101,UZJ100..ATM ＊８−１．２５ＰＸ６０−２０ |
90105-08213 |
US $1.16 |
||
|
35308
|
35308
35308-60080 Cover Sub-Assy, Front Oil Pump[01.1998 - 08.2002] HDJ101..ATM |
35308-60080 |
US $571.33 |
||
|
35308C
|
35308C
35789-36040 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝０．８ |
35789-36040 |
US $6.99 |
||
|
35308C
|
35308C
35789-36050 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．０ |
35789-36050 |
US $6.99 |
||
|
35308C
|
35308C
35789-36060 Race, Thrust Bearing (For Front Oil Pump Cover)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１．４ |
35789-36060 |
US $8.04 |
||
|
35313
|
35313
35313-60010 Gasket, Front Oil Pump Cover[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35313-60010 |
from US $5.93 |
||
|
35321
|
35321
35321-60040 Gear, Front Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９４８−１３．９６２ |
35321-60040 |
US $44.99 |
||
|
35321
|
35321
35321-60050 Gear, Front Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９６３−１３．９７７ |
35321-60050 |
US $44.99 |
||
|
35321
|
35321
35321-60060 Gear, Front Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９７８−１３．９９２ |
35321-60060 |
US $47.35 |
||
|
35321
|
35321
35321-60070 Gear, Front Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９９３−１４．００７ |
35321-60070 |
US $44.99 |
||
|
35321
|
35321
35321-60080 Gear, Front Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１４．００８−１４．０２２ |
35321-60080 |
US $40.05 |
||
|
35322
|
35322
35322-60040 Gear, Front Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９４８−１３．９６２ |
35322-60040 |
from US $45.57 |
||
|
35322
|
35322
35322-60050 Gear, Front Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９６３−１３．９７７ |
35322-60050 |
US $45.57 |
||
|
35322
|
35322
35322-60060 Gear, Front Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９７８−１３．９９２ |
35322-60060 |
US $45.57 |
||
|
35322
|
35322
35322-60070 Gear, Front Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１３．９９３−１４．００７ |
35322-60070 |
US $45.57 |
||
|
35322
|
35322
35322-60080 Gear, Front Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝１４．００８−１４．０２２ |
35322-60080 |
US $40.56 |
||
|
35427D
|
35427D
35427-60010 Seat, Check Valve Spring[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35427-60010 |
US $1.46 |
||
|
35495
|
35495
35495-60010 Ball, Check[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35495-60010 |
US $4.37 |
||
|
35495A
|
35495A
90501-18106 Spring, Compression (For Check Ball)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90501-18106 |
US $1.31 |
||
|
35617
|
35617
35617-60010 Ring, Clutch Drum Oil Seal[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35617-60010 |
US $21.50 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
