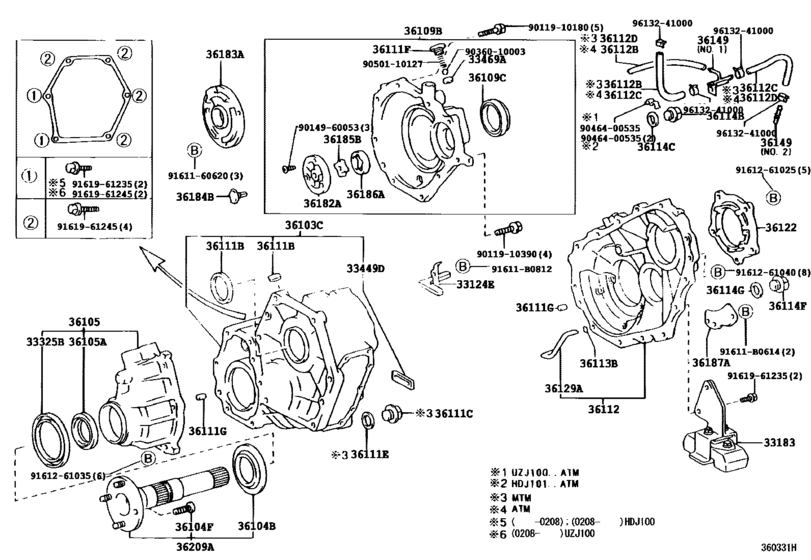

Transfer Case & Extension Housing ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33124E
|
33124E
33124-60030 Pipe, Oil Receiver(For Transfer)[01.1998 - 08.2002] HDJ101,UZJ100 |
33124-60030 |
US $4.02 |
||
|
33325B
|
33325B
33325-60050 Deflector, Dust[01.1998 - 08.2002] HDJ101,UZJ100 |
33325-60050 |
from US $6.63 |
||
|
33449D
|
33449D
33449-60010 Magnet, Transmission[01.1998 - 08.2002] HDJ101,UZJ100 |
33449-60010 |
from US $3.85 |
||
|
33469A
|
33469A
33469-60020 Seat, Relief Valve (For Transfer Extension Rear Housing)[01.1998 - 08.2002] HDJ101,UZJ100 |
33469-60020 |
US $3.06 |
||
|
36103C
|
36103C
36103-60290 Case, Transfer, Front[01.1998 - 08.2002] HDJ101,UZJ100 |
36103-60290 |
from US $702.73 |
||
|
36104B
|
36104B
33325-60040 Deflector, Dust (For Transfer Output Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 |
33325-60040 |
from US $9.50 |
||
|
36104F
|
36104F
90114-10061 Bolt (For Transfer Output Shaft Companion Flange)[01.1998 - 08.2002] HDJ101,UZJ100 |
90114-10061 |
from US $0.91 |
||
|
36105
|
36105
36105-60010 Housing Sub-Assy, Transfer Extension, Front[01.1998 - 08.2002] HDJ101,UZJ100 |
36105-60010 |
from US $220.15 |
||
|
36105A
|
36105A
90311-50014 Seal, Oil (Transfer Extension Front Housing Sub-Assy)[01.1998 - 08.2002] HDJ101,UZJ100 |
90311-50014 |
from US $7.53 |
||
|
36109B
|
36109B
36109-60060 Housing Sub-Assy, Transfer Extension, Rear[01.1998 - 04.2001] HDJ101,UZJ100 |
36109-60060 |
US $327.60 |
||
| replacements | |||||
|
36109B
|
36109B
33325-60110 Deflector, Dust[01.1998 - 04.2001] HDJ101,UZJ100 |
33325-60110 |
US $5.24 |
||
|
36109B
|
36109B
36109-60061 Housing Sub-Assy, Transfer Extension, Rear[01.1998 - 04.2001] HDJ101,UZJ100 |
36109-60061 |
US $342.45 |
||
|
36109B
|
36109B
36109-60061 Housing Sub-Assy, Transfer Extension, Rear[04.2001 - 08.2002] HDJ101,UZJ100 |
36109-60061 |
US $342.45 |
||
|
36109C
|
36109C
90311-58008 Seal, Oil (Transfer Extension Rear Housing Sub-Assy)[01.1998 - 04.2001] HDJ101,UZJ100 |
90311-58008 |
from US $9.32 |
||
|
36109C
|
36109C
90311-58011 Seal, Oil (Transfer Extension Rear Housing Sub-Assy)[04.2001 - 08.2002] HDJ101,UZJ100 |
90311-58011 |
from US $12.19 |
||
|
36111B
|
36111B
90310-16001 Seal, Oil (For Transfer Case)[01.1998 - 08.2002] HDJ101,UZJ100 レバー側 |
90310-16001 |
from US $2.87 |
||
|
36111B
|
36111B
90311-48018
Seal, Oil (Transfer Extension Rear Housing Sub-Assy)
[01.1998 - 08.2002] HDJ101,UZJ100 シャフト側 |
90311-48018 |
— | ||
| replacement | |||||
|
36111B
|
36111B
90311-48025 Seal, Oil (For Transfer Case)[01.1998 - 08.2002] HDJ101,UZJ100 シャフト側 |
90311-48025 |
from US $5.56 |
||
|
36111F
|
36111F
90341-18039 Plug, No.2(For Transmission Case)[01.1998 - 08.2002] HDJ101,UZJ100 |
90341-18039 |
US $1.49 |
||
|
36111G
|
36111G
90250-12002 Pin, Straight(For Manual Transmission Case)[01.1998 - 08.2002] HDJ101,UZJ100 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.24 |
||
|
36112
|
36112
36104-60020 Case, Transfer, Rear[01.1998 - 08.2002] HDJ101,UZJ100 |
36104-60020 |
US $346.53 |
||
|
36112B
|
36112B
90447-08151 Hose, No.1 (For Transfer Rear Case)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90447-08151 |
US $24.75 |
||
|
36112C
|
36112C
90445-11136
Hose, No.2 (For Transfer Rear Case)
[01.1998 - 08.2002] HDJ101..ATM |
90445-11136 |
— | ||
|
36112D
|
36112D
90445-11138 Hose, No.2 (For Transfer Rear Case)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90445-11138 |
US $4.80 |
||
|
36113B
|
36113B
90301-07012 Ring, O (For Transfer Case Plug)[01.1998 - 08.2002] HDJ101,UZJ100 内径＝６．０ |
90301-07012 |
US $2.87 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[01.1998 - 08.2002] HDJ101,UZJ100 |
90341-18006 |
from US $3.23 |
||
|
36114C
|
36114C
90430-18008 Gasket[01.1998 - 08.2002] HDJ101,UZJ100 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1998 - 08.2002] HDJ101,UZJ100 |
90430-T0021 |
US $0.99 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[01.1998 - 08.2002] HDJ101,UZJ100 |
90341-18057 |
from US $6.27 |
||
|
36114G
|
36114G
90430-18008 Gasket[01.1998 - 08.2002] HDJ101,UZJ100 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1998 - 08.2002] HDJ101,UZJ100 |
90430-T0021 |
US $0.99 |
||
|
36122
|
36122
36122-36010 Cover, Transfer Case, No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
36122-36010 |
US $38.88 |
||
|
36129A
|
36129A
36129-60030 Tube, Transfer Oil[01.1998 - 08.2002] HDJ101,UZJ100 |
36129-60030 |
US $3.35 |
||
|
36149
|
36149
36149-60010 Pipe, Transfer Breather[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．１ |
36149-60010 |
US $4.08 |
||
|
36149
|
36149
36149-60030 Pipe, Transfer Breather[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．２ |
36149-60030 |
US $4.08 |
||
|
36182A
|
36182A
36182-60011 Cover, Transfer Oil Pump[01.1998 - 08.2002] HDJ101,UZJ100 |
36182-60011 |
US $23.94 |
||
|
36183A
|
36183A
36183-60012 Plate, Transfer Oil Pump[01.1998 - 08.2002] HDJ101,UZJ100 |
36183-60012 |
US $35.82 |
||
|
36184B
|
36184B
36184-60060 Shaft, Transfer Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100 |
36184-60060 |
US $4.54 |
||
|
36185B
|
36185B
36185-60030 Rotor, Transfer Oil Pump Drive[01.1998 - 08.2002] HDJ101,UZJ100 |
36185-60030 |
from US $4.37 |
||
|
36186A
|
36186A
36186-60010 Rotor, Transfer Oil Pump Driven[01.1998 - 08.2002] HDJ101,UZJ100 |
36186-60010 |
US $6.29 |
||
|
36187A
|
36187A
36187-60010 Strainer, Transfer Oil, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
36187-60010 |
US $9.26 |
||
|
36209A
|
36209A
36209-60020 Shaft, Transfer Output, Front[01.1998 - 08.2002] HDJ101,UZJ100 |
36209-60020 |
from US $291.20 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9011910180
|
9011910180
90119-10180 Bolt (For Transfer Extension Rear Housing) |
90119-10180 |
US $2.33 |
||
|
9011910390
|
9011910390
90119-10390 Bolt (For Transfer Extension Rear Housing) |
90119-10390 |
US $1.97 |
||
|
9014960053
|
9014960053
90149-60053 Screw(For Transmission Oil Pump Cover) |
90149-60053 |
US $0.61 |
||
|
9036010003
|
9036010003
90360-10003 Ball(For Transmission Oil Pump Cover) |
90360-10003 |
from US $1.16 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9050110127
|
9050110127
90501-10127 Spring, Compression(For Transmission Oil Pump Cover) |
90501-10127 |
US $0.79 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9161261025
|
9161261025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
