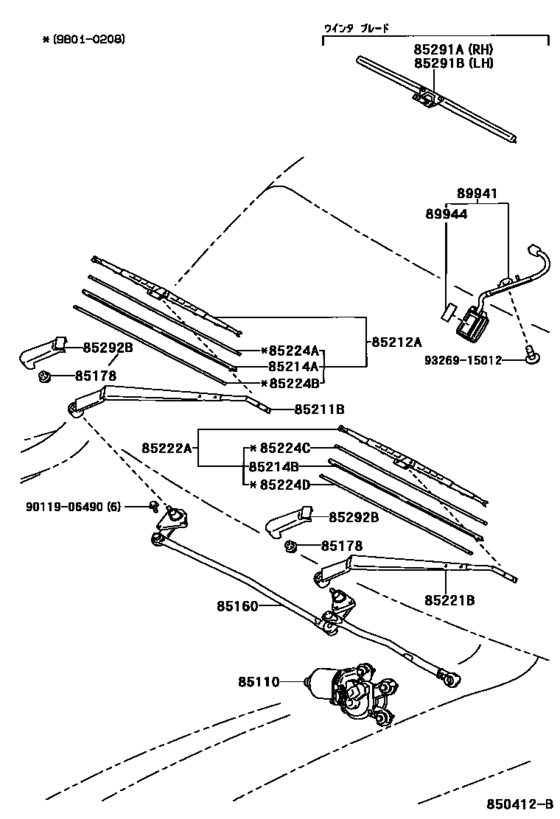

Windshield Wiper ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60260 Motor Assy, Windshield Wiper[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL |
85110-60260 |
US $398.94 |
||
| replacement | |||||
|
85110
|
85110
85110-60280 Motor Assy, Windshield Wiper[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL |
85110-60280 |
US $385.28 |
||
|
85110
|
85110
85110-60280 Motor Assy, Windshield Wiper[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
85110-60280 |
US $385.28 |
||
|
85110
|
85110
85110-60310 Motor Assy, Windshield Wiper[07.1999 - 08.2002] UZJ100..CYG; HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
85110-60310 |
US $431.56 |
||
|
85160
|
85160
85150-60190
Link Assy, Windshield Wiper
[01.1998 - 07.1999] HDJ101,UZJ100 |
85150-60190 |
— | ||
|
85160
|
85160
85150-60220 Link Assy, Windshield Wiper[07.1999 - 08.2002] HDJ101,UZJ100 |
85150-60220 |
US $182.40 |
||
|
85178
|
85178
90179-08113 Nut (For Front Wiper Arm Setting)[01.1998 - 08.2002] HDJ101,UZJ100 |
90179-08113 |
from US $0.95 |
||
|
85211B
|
85211B
85211-60130
Arm, Front Wiper, Rh
[01.1998 - 07.1999] HDJ101,UZJ100 |
85211-60130 |
— | ||
|
85211B
|
85211B
85211-60180 Arm, Front Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85211-60180 |
US $70.73 |
||
|
85212A
|
85212A
85212-60100 Blade, Fr Wiper, Rh[01.1998 - 08.1998] HDJ101,UZJ100 |
85212-60100 |
US $44.26 |
||
| replacement | |||||
|
85212A
|
85212A
85212-26051 Blade, Fr Wiper, Rh[01.1998 - 08.1998] HDJ101,UZJ100 |
85212-26051 |
from US $40.32 |
||
|
85212A
|
85212A
85212-60101
Blade, Fr Wiper, Rh
[08.1998 - 07.1999] HDJ101,UZJ100 |
85212-60101 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-26051 Blade, Fr Wiper, Rh[08.1998 - 07.1999] HDJ101,UZJ100 |
85212-26051 |
from US $40.32 |
||
|
85212A
|
85212A
85212-60150 Blade, Fr Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85212-60150 |
US $62.03 |
||
| replacement | |||||
|
85212A
|
85212A
85212-60151 Blade, Fr Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85212-60151 |
from US $52.78 |
||
|
85214A
|
85214A
85214-30300 Rubber, Wiper, Rh[01.1998 - 06.1998] HDJ101,UZJ100 |
85214-30300 |
US $12.96 |
||
| replacement | |||||
|
85214A
|
85214A
85214-24051 Rubber, Wiper, Rh[01.1998 - 06.1998] HDJ101,UZJ100 |
85214-24051 |
from US $12.86 |
||
|
85214A
|
85214A
85214-60090 Rubber, Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85214-60090 |
US $13.98 |
||
| replacement | |||||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85214-50100 |
from US $12.73 |
||
|
85214A
|
85214A
85214-60110 Rubber, Wiper, Rh[06.1998 - 07.1999] HDJ101,UZJ100 |
85214-60110 |
US $11.07 |
||
| replacement | |||||
|
85214A
|
85214A
85214-24051 Rubber, Wiper, Rh[06.1998 - 07.1999] HDJ101,UZJ100 |
85214-24051 |
from US $12.86 |
||
|
85214B
|
85214B
85214-30300 Rubber, Wiper, Rh[01.1998 - 06.1998] HDJ101,UZJ100 |
85214-30300 |
US $12.96 |
||
| replacement | |||||
|
85214B
|
85214B
85214-24051 Rubber, Wiper, Rh[01.1998 - 06.1998] HDJ101,UZJ100 |
85214-24051 |
from US $12.86 |
||
|
85214B
|
85214B
85214-60100 Rubber, Wiper, Lh[07.1999 - 08.2002] HDJ101,UZJ100 |
85214-60100 |
US $13.98 |
||
| replacement | |||||
|
85214B
|
85214B
85214-48010 Rubber, Wiper, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85214-48010 |
from US $11.50 |
||
|
85214B
|
85214B
85214-60110 Rubber, Wiper, Rh[06.1998 - 07.1999] HDJ101,UZJ100 |
85214-60110 |
US $11.07 |
||
| replacement | |||||
|
85214B
|
85214B
85214-24051 Rubber, Wiper, Rh[06.1998 - 07.1999] HDJ101,UZJ100 |
85214-24051 |
from US $12.86 |
||
|
85221B
|
85221B
85221-60150
Arm, Front Wiper, Lh
[01.1998 - 07.1999] HDJ101,UZJ100 |
85221-60150 |
— | ||
|
85221B
|
85221B
85221-60200 Arm, Front Wiper, Lh[07.1999 - 08.2002] HDJ101,UZJ100 |
85221-60200 |
US $67.54 |
||
|
85222A
|
85222A
85222-60160 Blade, Fr Wiper, Lh[01.1998 - 06.1998] HDJ101,UZJ100 |
85222-60160 |
US $44.26 |
||
| replacement | |||||
|
85222A
|
85222A
85222-43021 Blade, Fr Wiper, Lh[01.1998 - 06.1998] HDJ101,UZJ100 |
85222-43021 |
US $40.32 |
||
|
85222A
|
85222A
85222-60190 Blade, Fr Wiper, Lh[06.1998 - 07.1999] HDJ101,UZJ100 |
85222-60190 |
US $44.26 |
||
| replacement | |||||
|
85222A
|
85222A
85222-43021 Blade, Fr Wiper, Lh[06.1998 - 07.1999] HDJ101,UZJ100 |
85222-43021 |
US $40.32 |
||
|
85222A
|
85222A
85222-60200 Blade, Fr Wiper, Lh[07.1999 - 08.2002] HDJ101,UZJ100 |
85222-60200 |
US $53.44 |
||
| replacement | |||||
|
85222A
|
85222A
85222-60201 Blade, Fr Wiper, Lh[07.1999 - 08.2002] HDJ101,UZJ100 |
85222-60201 |
from US $36.52 |
||
|
85224A
|
85224A
85224-10210
Plate, Wiper Rubber Backing, No.1
[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-10210 |
— | ||
| replacement | |||||
|
85224A
|
85224A
85224-10180 Plate, Wiper Rubber Backing, No.1[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-10180 |
US $4.19 |
||
|
85224A
|
85224A
85224-44040
Plate, Wiper Rubber Backing, No.1
[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-44040 |
— | ||
| replacement | |||||
|
85224A
|
85224A
85224-44010 Plate, Wiper Rubber Backing, No.1[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-44010 |
US $6.03 |
||
|
85224B
|
85224B
85224-10210
Plate, Wiper Rubber Backing, No.1
[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-10210 |
— | ||
| replacement | |||||
|
85224B
|
85224B
85224-10180 Plate, Wiper Rubber Backing, No.1[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-10180 |
US $4.19 |
||
|
85224B
|
85224B
85224-44040
Plate, Wiper Rubber Backing, No.1
[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-44040 |
— | ||
| replacement | |||||
|
85224B
|
85224B
85224-44010 Plate, Wiper Rubber Backing, No.1[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-44010 |
US $6.03 |
||
|
85224C
|
85224C
85224-33070
Plate, Wiper Rubber Backing, No.3
[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-33070 |
— | ||
| replacement | |||||
|
85224C
|
85224C
85224-30470 Plate, Wiper Rubber Backing, No.1[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-30470 |
US $6.29 |
||
|
85224C
|
85224C
85224-60110 Plate, Wiper Rubber Backing, No.3[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-60110 |
US $6.41 |
||
|
85224D
|
85224D
85224-33070
Plate, Wiper Rubber Backing, No.3
[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-33070 |
— | ||
| replacement | |||||
|
85224D
|
85224D
85224-30470 Plate, Wiper Rubber Backing, No.1[01.1998 - 07.1999] HDJ101,UZJ100 |
85224-30470 |
US $6.29 |
||
|
85224D
|
85224D
85224-60110 Plate, Wiper Rubber Backing, No.3[07.1999 - 08.2002] HDJ101,UZJ100 |
85224-60110 |
US $6.41 |
||
|
85291A
|
85291A
85291-13030 Blade, Front Wiper, Winter, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85291-13030 |
US $106.29 |
||
| replacement | |||||
|
85291A
|
85291A
85291-24090 Blade, Front Wiper, Winter, Rh[07.1999 - 08.2002] HDJ101,UZJ100 |
85291-24090 |
US $51.72 |
||
|
85291A
|
85291A
85291-22050
Blade Assy, Windshield Wiper
[06.1998 - 07.1999] HDJ101,UZJ100 |
85291-22050 |
— | ||
| replacement | |||||
|
85291A
|
85291A
85291-33060 Blade, Front Wiper, Winter, Rh[06.1998 - 07.1999] HDJ101,UZJ100 |
85291-33060 |
US $80.64 |
||
|
85291A
|
85291A
85291-60020 Blade Assy, Windshield Wiper[01.1998 - 06.1998] HDJ101,UZJ100 |
85291-60020 |
US $78.62 |
||
| replacement | |||||
|
85291A
|
85291A
85291-33050 Blade Assy, Windshield Wiper[01.1998 - 06.1998] HDJ101,UZJ100 |
85291-33050 |
from US $70.56 |
||
|
85291B
|
85291B
85291-24060 Blade Assy, Windshield Wiper[06.1998 - 08.2002] HDJ101,UZJ100 |
85291-24060 |
US $69.89 |
||
| replacement | |||||
|
85291B
|
85291B
85291-24110 Blade, Front Wiper, Winter, Lh[06.1998 - 08.2002] HDJ101,UZJ100 |
85291-24110 |
US $43.68 |
||
|
85291B
|
85291B
85291-30030 Blade Assy, Windshield Wiper[01.1998 - 06.1998] HDJ101,UZJ100 |
85291-30030 |
US $66.39 |
||
| replacement | |||||
|
85291B
|
85291B
85291-22080 Blade Assy, Windshield Wiper[01.1998 - 06.1998] HDJ101,UZJ100 |
85291-22080 |
US $70.56 |
||
|
85292B
|
85292B
85292-44010 Cover, Windshield Wiper Arm[01.1998 - 08.2002] HDJ101,UZJ100 |
85292-44010 |
from US $4.58 |
||
|
9011906490
|
9011906490
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.19 |
||
|
9326915012
|
9326915012
93269-15012 New Genuine Part |
93269-15012 |
US $1.16 |
||
