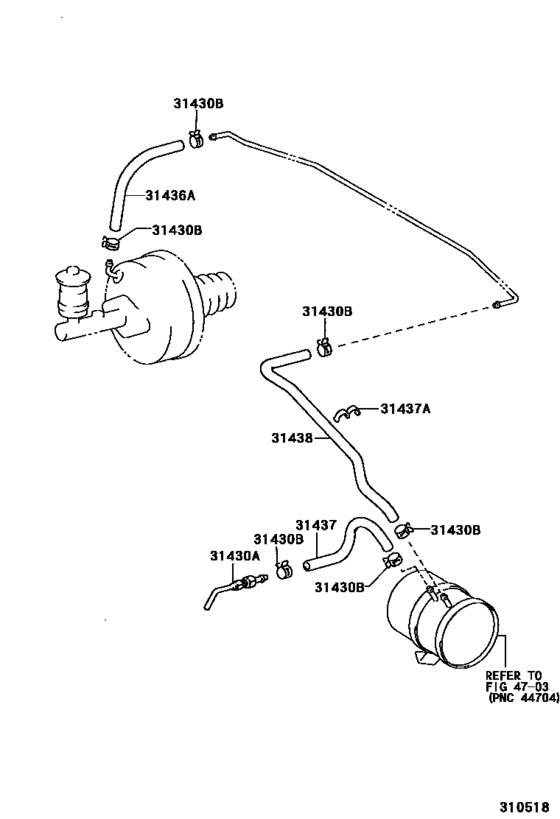

Clutch Booster ([01.1990 - 01.1995] (9001-9501)HDJ80..RHD..5F) Diagram Toyota LAND CRUISER
- Year
- 1992 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1992
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31430A
|
31430A
44730-16010 Valve Assy, Vacuum Check(For Clutch Vacuum)[01.1990 - 08.1992] HDJ80,HZJ80..5F..VX |
44730-16010 |
US $29.27 |
||
|
31430B
|
31430B
90467-16020
Clip(For Ventilation Hose No.2)
[01.1990 - 08.1992] HDJ80..RHD..5F..VX |
90467-16020 |
— | ||
| replacement | |||||
|
31430B
|
31430B
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.1990 - 08.1992] HDJ80..RHD..5F..VX |
96133-41500 |
from US $2.32 |
||
|
31436A
|
31436A
31436-60060
Hose, No.1(For Clutch Booster Vacuum)
[01.1990 - 08.1992] HDJ80..RHD..5F..VX |
31436-60060 |
— | ||
|
31437
|
31437
31437-60140 Hose, No.2(For Clutch Booster Vacuum)[01.1990 - 08.1992] HDJ80,HZJ80..5F..VX |
31437-60140 |
US $21.84 |
||
|
31437A
|
31437A
90464-00176 Clamp(For Clutch Booster Vacuum)[01.1990 - 08.1992] HDJ80..RHD..5F..VX |
90464-00176 |
US $0.96 |
||
|
31438
|
31438
31437-60150 Hose, No.3(For Clutch Booster Vacuum)[01.1990 - 08.1992] HDJ80..RHD..5F..VX |
31437-60150 |
US $39.31 |
||
