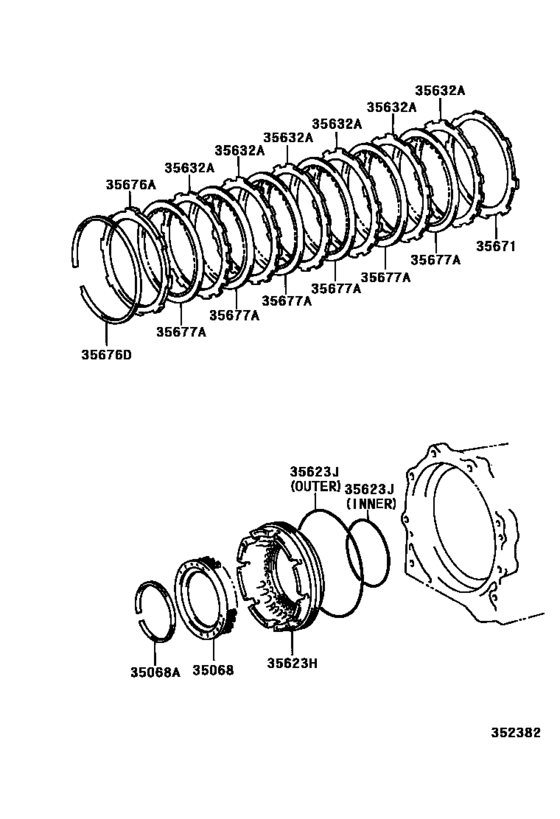

Brake No.3, 1St & Reverse Brake (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-36010 Spring Sub-Assy, 1St & Reverse Brake Return[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35068-36010 |
from US $24.32 |
||
|
35068A
|
35068A
90520-87001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90520-87001 |
from US $2.48 |
||
|
35623H
|
35623H
35623-60020 Piston, 1St & Reverse Brake[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35623-60020 |
US $100.46 |
||
|
35623J
|
35623J
90301-94002 Ring, O (For 1St & Reverse Brake)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC INNER |
90301-94002 |
US $2.62 |
||
|
35623J
|
35623J
90301-99030 Ring, O (For Overdrive Brake Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC OUTER |
90301-99030 |
US $5.02 |
||
|
35632A
|
35632A
35632-60030 Plate, Brake (For 1St & Reverse Brake)[08.1992 - 09.1999] FZJ80,HDJ80,HZJ80..4FC |
35632-60030 |
US $29.56 |
||
|
35632A
|
35632A
35632-60031 Plate, Brake (For 1St & Reverse Brake)[09.1999 - 03.2001] FZJ80,HDJ80..4FC |
35632-60031 |
US $42.81 |
||
| replacement | |||||
|
35632A
|
35632A
35632-60030 Plate, Brake (For 1St & Reverse Brake)[09.1999 - 03.2001] FZJ80,HDJ80..4FC |
35632-60030 |
US $29.56 |
||
|
35671
|
35671
35671-36010 Plate, Brake Cushion[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35671-36010 |
US $19.80 |
||
|
35676A
|
35676A
35676-60050 Flange, Brake (For 1St & Reverse Brake)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC T=6.65 |
35676-60050 |
US $40.77 |
||
|
35676A
|
35676A
35676-60060 Flange, Brake (For 1St & Reverse Brake)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC T=7.05 |
35676-60060 |
US $40.77 |
||
|
35676A
|
35676A
35676-60070 Flange, Brake (For 1St & Reverse Brake)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC T=7.45 |
35676-60070 |
from US $40.77 |
||
|
35676D
|
35676D
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[07.1994 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90521-99109 |
US $3.40 |
||
|
35677A
|
35677A
35633-60030 Disc, Clutch (For 1St & Reverse Brake)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35633-60030 |
from US $36.63 |
||
