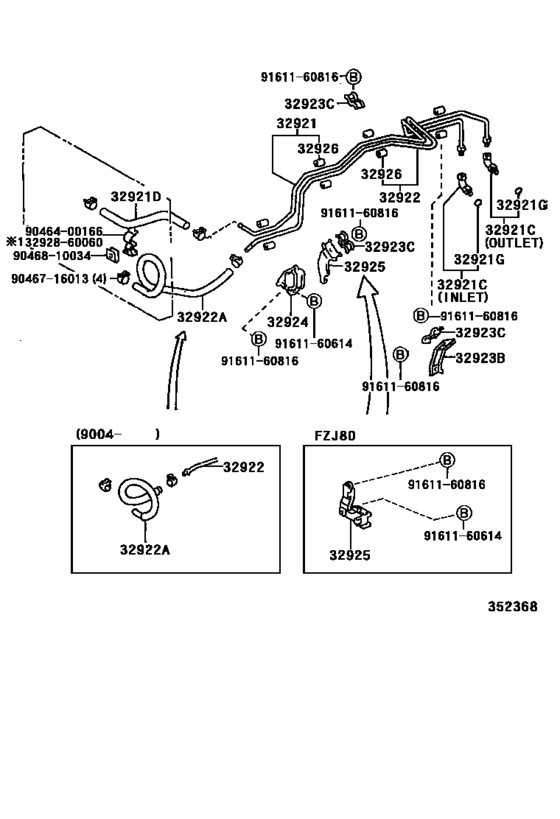

Oil Cooler & Tube (Atm) ([01.1990 - ] (9001- )FZJ80,HDJ80,HZJ80..4FC) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-60140
Tube, Oil Cooler Inlet, No.1
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
32921-60140 |
— | ||
|
32921C
|
32921C
90407-20004 Union(For Oil Cooler Tube)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC OUTLET |
90407-20004 |
from US $7.71 |
||
|
32921C
|
32921C
90407-20006 Union(For Oil Cooler Tube)[07.1994 - 03.2001] FZJ80,HDJ80,HZJ80..4FC INLET |
90407-20006 |
from US $11.70 |
||
|
32921D
|
32921D
32941-60070 Hose(For Oil Cooler Inlet)[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
32941-60070 |
US $53.09 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90301-11006 |
from US $2.43 |
||
|
32922
|
32922
32922-60061
Tube, Oil Cooler Outlet, No.1
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
32922-60061 |
— | ||
|
32922A
|
32922A
32942-60091
Hose(For Oil Cooler Outlet)
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
32942-60091 |
— | ||
|
32923B
|
32923B
32923-60050 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.1992 -] FZJ80,HDJ80,HZJ80..4FC |
32923-60050 |
US $8.91 |
||
|
32923C
|
32923C
90462-12076 Clamp, Automatic Transmission Oil Cooler Tube[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
90462-12076 |
US $4.66 |
||
|
32924
|
32924
32909-60010
Clamp, Oil Cooler Tube, No.2
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
32909-60010 |
— | ||
|
32925
|
32925
32925-60070
Clamp, Oil Cooler Tube, No.3
[08.1992 - 03.2001] HDJ80,HZJ80..4FC..(DSL,TD2) |
32925-60070 |
— | ||
|
32926
|
32926
32926-60010 Cushion, Oil Cooler Tube(Atm)[08.1992 -] FZJ80,HDJ80,HZJ80..4FC L=45,ID=12 |
32926-60010 |
US $5.02 |
||
|
3292860060
|
3292860060
32928-60060
Clamp, Flexible Hose, No.1
|
32928-60060 |
— | ||
|
9046400166
|
9046400166
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
90464-00166 |
US $2.87 |
||
|
9046716013
|
9046716013
90467-16013
Clip(For Oil Return Hose)
|
90467-16013 |
— | ||
| replacement | |||||
|
9046716013
|
9046716013
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9046810034
|
9046810034
90468-10034 CLIP |
90468-10034 |
US $2.62 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
