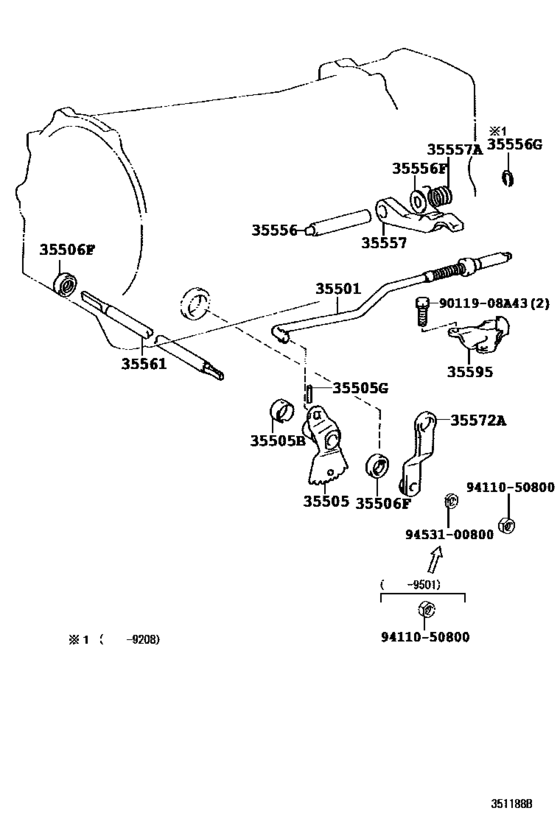

Throttle Link & Valve Lever (Atm) ([01.1990 - ] A440F,A442F (9001- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-36010 Rod Sub-Assy, Parking Lock[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35501-36010 |
US $48.78 |
||
|
35505
|
35505
35505-36030 Lever Sub-Assy, Manual Valve[08.1992 - 10.1997] FZJ80,HDJ80,HZJ80..4FC |
35505-36030 |
US $38.88 |
||
|
35505
|
35505
35505-60020 Lever Sub-Assy, Manual Valve[10.1997 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35505-60020 |
US $36.98 |
||
|
35505B
|
35505B
90560-20008 Spacer (For Manual Valve Lever)[08.1992 -] FZJ80,HDJ80,HZJ80..4FC |
90560-20008 |
US $0.79 |
||
|
35505G
|
35505G
90254-04012 Pin, Slotted Spring (For Manual Valve Lever)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90254-04012 |
US $1.14 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[08.1992 -] FZJ80,HDJ80,HZJ80..4FC |
90311-12002 |
from US $3.93 |
||
|
35556
|
35556
35556-36010 Shaft, Parking Lock Pawl[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35556-36010 |
US $13.69 |
||
|
35556F
|
35556F
90201-16012 Washer, Plate (For Parking Lock Pawl Shaft)[01.1995 -] FZJ80,HDJ80,HZJ80..4FC |
90201-16012 |
US $0.87 |
||
|
35557
|
35557
35557-60030 Pawl, Parking Lock[01.1995 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35557-60030 |
US $60.13 |
||
|
35557A
|
35557A
90508-30010 Spring, Torsion (For Parking Lock Pawl)[01.1995 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90508-30010 |
US $2.33 |
||
|
35561
|
35561
35561-60020 Shaft, Manual Valve Lever[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35561-60020 |
US $38.79 |
||
|
35572A
|
35572A
35572-60050 Lever, Transmission Control Shaft[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35572-60050 |
US $13.54 |
||
|
35595
|
35595
35595-60020 Bracket, Parking Lock Pawl[01.1995 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35595-60020 |
US $15.58 |
||
|
9011908A43
|
9011908A43
90119-08A43 New Genuine Part |
90119-08A43 |
US $1.43 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
