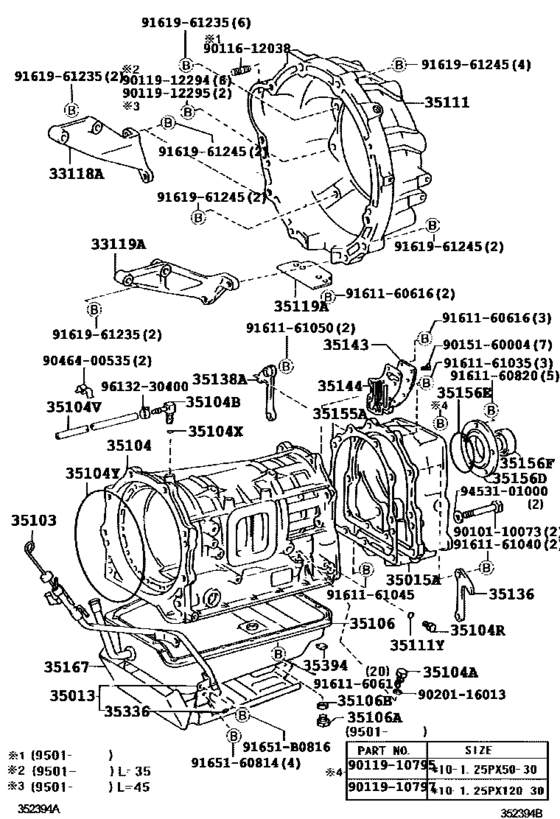

Transmission Case & Oil Pan (Atm) ([01.1990 - 03.2001] A440F,A442F (9001-0103)HDJ80,HZJ80..4FC) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118A
|
33118A
33118-60030
Plate, Stiffener, Rh(Mtm)
[03.1995 - 01.1998] HDJ80,HZJ80..4FC |
33118-60030 |
— | ||
| replacement | |||||
|
33118A
|
33118A
33118-60060 Plate, Stiffener, Rh(Mtm)[03.1995 - 01.1998] HDJ80,HZJ80..4FC |
33118-60060 |
from US $58.01 |
||
|
33118A
|
33118A
33118-60060 Plate, Stiffener, Rh(Mtm)[01.1998 - 03.2001] HDJ80,HZJ80..4FC |
33118-60060 |
from US $58.01 |
||
|
33119A
|
33119A
33119-60031
Plate, Stiffener, Lh(Mtm)
[03.1995 - 01.1998] HDJ80,HZJ80..4FC |
33119-60031 |
— | ||
| replacement | |||||
|
33119A
|
33119A
33119-60070 Plate, Stiffener, Lh(Mtm)[03.1995 - 01.1998] HDJ80,HZJ80..4FC |
33119-60070 |
US $47.70 |
||
|
33119A
|
33119A
33119-60070 Plate, Stiffener, Lh(Mtm)[01.1998 - 03.2001] HDJ80,HZJ80..4FC |
33119-60070 |
US $47.70 |
||
|
35013
|
35013
35013-60110
Tube Sub-Assy, Transmission Oil Filler
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
35013-60110 |
— | ||
|
35015A
|
35015A
35015-60080 Adapter Sub-Assy, Transmission Case, Rear[01.1995 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35015-60080 |
US $605.70 |
||
|
35103
|
35103
35103-60050
Gage Sub-Assy, Transmission Oil Level
[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
35103-60050 |
— | ||
|
35104
|
35104
35104-60100 Case Sub-Assy, Automatic Transmission[01.1995 - 03.2001] HDJ80..RHD..4FC;FZJ80,HZJ80..4FC |
35104-60100 |
US $1,391.94 |
||
|
35104A
|
35104A
90341-16010 Plug, Automatic Transmission Case[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90341-16010 |
US $4.02 |
||
|
35104B
|
35104B
90930-03094 Plug, Breather, No.1 (Atm)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90930-03094 |
from US $3.33 |
||
|
35104R
|
35104R
90341-08001 Plug, Transaxle Case, No.1[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90341-08001 |
from US $1.48 |
||
|
35104V
|
35104V
90445-11113 Hose (For Breather Plug)[08.1992 - 03.2001] HDJ80,HZJ80..4FC |
90445-11113 |
US $5.53 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90301-06005 |
from US $2.24 |
||
|
35104Y
|
35104Y
90301-99067 Ring, O (For Automatic Transmission Case)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90301-99067 |
from US $3.23 |
||
|
35106
|
35106
35106-60030 Pan Sub-Assy, Automatic Transmission Oil[09.1995 - 03.2001] FZJ80,HDJ80..4FC..(EFI,TD2) |
35106-60030 |
US $122.30 |
||
|
35106A
|
35106A
90341-18057 Drain Plug (with Magnet)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90341-18057 |
from US $6.27 |
||
|
35106B
|
35106B
12157-10010 Gasket (For Drain Plug)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
12157-10010 |
from US $0.74 |
||
|
35111
|
35111
35111-60040 Housing, Automatic Transmission[08.1992 - 01.1998] HDJ80,HZJ80..4FC |
35111-60040 |
US $768.77 |
||
| replacement | |||||
|
35111
|
35111
35111-60041 Housing, Automatic Transmission[08.1992 - 01.1998] HDJ80,HZJ80..4FC |
35111-60041 |
US $768.77 |
||
|
35111
|
35111
35111-60041 Housing, Automatic Transmission[01.1998 - 03.2001] HDJ80,HZJ80..4FC |
35111-60041 |
US $768.77 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90301-06196 |
from US $2.45 |
||
|
35119A
|
35119A
35119-36010 Cover, Transmission Housing[07.1994 - 03.2001] HDJ80,HZJ80..4FC |
35119-36010 |
US $19.22 |
||
|
35136
|
35136
35136-60020 Hanger, Transmission,no.1[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35136-60020 |
US $7.57 |
||
|
35138A
|
35138A
35136-60020 Hanger, Transmission,no.1[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35136-60020 |
US $7.57 |
||
|
35143
|
35143
35143-36011 Cover, Transmission Case, Rear[07.1994 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35143-36011 |
US $7.28 |
||
|
35144
|
35144
35144-60011 Gasket, Transmission Case Rear Cover[07.1994 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35144-60011 |
US $2.62 |
||
|
35155A
|
35155A
35182-60010 Gasket, Transmission Case Adapter[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35182-60010 |
from US $8.24 |
||
|
35156D
|
35156D
35156-60010 Cover, Transmission Case Rear Adapter[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35156-60010 |
US $15.72 |
||
|
35156E
|
35156E
90301-81005 Ring, O(Transmission Case Rear Adapter)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90301-81005 |
from US $3.44 |
||
|
35156F
|
35156F
90311-48016 Seal, Oil(For Transmission Oil Pump Cover)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC |
90311-48016 |
from US $5.56 |
||
|
35167
|
35167
35167-60030 Protector, Transmission Oil Pal[09.1995 -] FZJ80,HDJ80..4FC..(EFI,TD2) |
35167-60030 |
US $126.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1992 -] FZJ80,HDJ80,HZJ80..4FC |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35394-30011 |
from US $5.47 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
9010110073
|
9010110073
90101-10073 Shaft, Clutch Pedal |
90101-10073 |
US $1.31 |
||
|
9011612038
|
9011612038
90116-12038 New Genuine Part |
90116-12038 |
US $5.53 |
||
|
9011910795
|
9011910795
90119-10795 New Genuine Part |
90119-10795 |
US $3.06 |
||
|
9011910797
|
9011910797
90119-10797 New Genuine Part |
90119-10797 |
US $3.20 |
||
|
9011912294
|
9011912294
90119-12294 Bolt (For Transmission Housing & Case Setting) |
90119-12294 |
US $2.04 |
||
|
9011912295
|
9011912295
90119-12295 Bolt (For Transmission Housing & Case Setting) |
90119-12295 |
US $2.04 |
||
|
9015160004
|
9015160004
90151-60004 SCREW |
90151-60004 |
US $1.60 |
||
|
9020116013
|
9020116013
90201-16013 Washer, Plate (For Automatic Transmission Case) |
90201-16013 |
US $0.96 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.24 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
