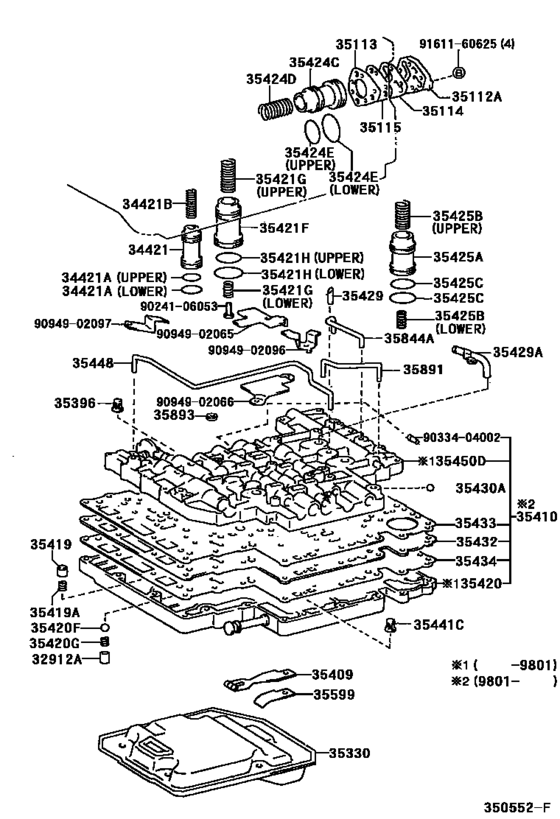

Valve Body & Oil Strainer (Atm) ([08.1992 - ] A440F,A442F (9208- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32912A
|
32912A
32912-60010 Cage, Check Valve(For Valve Body)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
32912-60010 |
US $7.28 |
||
|
34421
|
34421
34421-37010 Piston, Overdrive Brake Accumulator[09.1995 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
34421-37010 |
US $11.36 |
||
|
34421A
|
34421A
90301-26003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC UPPER |
90301-26003 |
from US $2.97 |
||
|
34421A
|
34421A
90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC LOWER |
90301-29003 |
from US $2.87 |
||
|
34421B
|
34421B
90501-32013 Spring (For Overdrive Brake Accumulator Piston)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90501-32013 |
US $3.20 |
||
|
35112A
|
35112A
35112-36010 Cover, Front Clutch Accumulator[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35112-36010 |
US $32.61 |
||
|
35113
|
35113
35113-60010 Gasket, Front Clutch Accumlator, No.2[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35113-60010 |
US $5.42 |
||
|
35114
|
35114
35114-60010 Gasket, Front Clutch Accumlator, No.1[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35114-60010 |
US $5.42 |
||
|
35115
|
35115
35115-36010 Plate, Front Clutch Accumulator[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35115-36010 |
US $10.34 |
||
|
35330
|
35330
35330-60010 Strainer Assy, Valve Body Oil[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35330-60010 |
from US $64.85 |
||
|
35396
|
35396
35396-36020 Strainer, Throttle Oil[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35396-36020 |
US $3.32 |
||
|
35409
|
35409
35409-60010 Spring Sub-Assy, Manual Detent[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35409-60010 |
US $15.43 |
||
|
35410
|
35410
35410-60322 Body Assy, Transmission Valve[01.1998 - 03.2001] HDJ80..4FC |
35410-60322 |
US $1,557.92 |
||
|
35419
|
35419
35419-36010 Valve, Check, No.1[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35419-36010 |
US $4.51 |
||
|
35419A
|
35419A
90501-12129 Spring, Compression (For Check Valve)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90501-12129 |
US $1.16 |
||
|
35420
|
35420
35420-60090
Body Assy, Lower Valve
[01.1995 - 10.1997] HDJ80..4FC |
35420-60090 |
— | ||
|
35420
|
35420
35420-60091 Body Assy, Lower ValveLOWER VALVE [10.1997 - 01.1998] HDJ80..4FC..TD2 |
35420-60091 |
US $880.88 |
||
|
35420F
|
35420F
90360-10006 Ball (For Pressure Relief)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90360-10006 |
US $1.16 |
||
|
35420G
|
35420G
90503-04004 Spring, Barrel Shaped[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
90503-04004 |
US $1.16 |
||
|
35421F
|
35421F
35402-60020 Piston, Accumulator, No.2[01.1995 - 03.2001] HDJ80,HZJ80..4FC..GEN |
35402-60020 |
US $21.14 |
||
|
35421G
|
35421G
90501-20110 Spring, Compression (For Accumulator Piston No.2)[08.1992 - 03.2001] HDJ80,HZJ80..4FC UPPER |
90501-20110 |
US $3.49 |
||
|
35421G
|
35421G
90501-40028 Spring, Compression (For Accumulator Piston No.2)[08.1992 - 03.2001] HDJ80,HZJ80..4FC..(DSL,TD2) LOWER |
90501-40028 |
US $4.22 |
||
|
35421H
|
35421H
90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC UPPER |
90301-29003 |
from US $2.87 |
||
|
35421H
|
35421H
90301-37004 Ring (For Accumulator Piston No.2)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC LOWER |
90301-37004 |
US $3.76 |
||
|
35424C
|
35424C
35424-36010 Piston, C-1 Accumulator[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35424-36010 |
US $24.75 |
||
|
35424D
|
35424D
90501-26076 Spring, Compression (For C-1 Accumulator Piston)[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) |
90501-26076 |
US $5.53 |
||
|
35424E
|
35424E
90301-22003 Ring, O (For C-1 Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC LOWER |
90301-22003 |
from US $2.59 |
||
|
35424E
|
35424E
90301-24002 Ring, O (For C-1 Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC UPPER |
90301-24002 |
US $4.54 |
||
|
35425A
|
35425A
35405-60050 Piston, C-2 Accumulator[01.1995 - 03.2001] HDJ80,HZJ80..4FC..GEN |
35405-60050 |
US $30.43 |
||
|
35425B
|
35425B
90501-18098 Spring, Compression (For C-2 Accumulator Piston)[01.1995 - 03.2001] HDJ80,HZJ80..4FC LOWER |
90501-18098 |
US $1.40 |
||
|
35425B
|
35425B
90501-34009 Spring (For Overdrive Brake Accumulator Piston)[01.1995 - 03.2001] HDJ80..4FC UPPER |
90501-34009 |
US $1.16 |
||
|
35425C
|
35425C
90301-28003 Ring, O (For C-1 Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC UPPER |
90301-28003 |
from US $2.61 |
||
|
35425C
|
35425C
90301-33006 Ring, O (For C-2 Accumulator Piston)[08.1992 - 12.2006] FZJ80,HDJ80,HZJ80..4FC LOWER |
90301-33006 |
US $1.40 |
||
|
35429
|
35429
35429-36010 Tube, Line Pressure[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35429-36010 |
US $4.30 |
||
|
35429A
|
35429A
35429-60010 Tube, Line Pressure[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35429-60010 |
US $4.80 |
||
|
35430A
|
35430A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[01.1995 - 12.2006] FZJ80,HDJ80,HZJ80..4FC OD=6.35 |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35430A
|
35430A
90080-36191
Ball, Check Valve
[01.1995 - 12.2006] FZJ80,HDJ80,HZJ80..4FC OD=6.35 |
90080-36191 |
— | ||
|
35432
|
35432
35432-60100
Plate, Valve Body, No.1
[01.1995 - 10.1997] HDJ80..4FC |
35432-60100 |
— | ||
|
35432
|
35432
35432-60101 Plate, Valve Body, No.1[10.1997 - 01.1998] HDJ80..4FC..TD2 |
35432-60101 |
US $59.26 |
||
|
35432
|
35432
35432-60102 Plate, Valve Body, No.1[01.1998 - 03.2001] HDJ80..4FC |
35432-60102 |
US $59.11 |
||
|
35433
|
35433
35433-36021 Gasket, Valve Body, No.1[11.1993 - 10.1997] FZJ80,HDJ80,HZJ80..4FC |
35433-36021 |
US $10.66 |
||
|
35433
|
35433
35433-36022 Gasket, Valve Body, No.1[10.1997 - 12.1997] FZJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) |
35433-36022 |
US $12.38 |
||
|
35433
|
35433
35433-36023 Gasket, Valve Body, No.1[01.1998 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35433-36023 |
from US $12.01 |
||
|
35434
|
35434
35434-36021 Gasket, Valve Body, No.2[11.1993 - 10.1997] FZJ80,HDJ80,HZJ80..4FC |
35434-36021 |
US $10.66 |
||
|
35434
|
35434
35434-36022 Gasket, Valve Body, No.2[10.1997 - 12.1997] FZJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) |
35434-36022 |
US $12.38 |
||
|
35434
|
35434
35434-36023 Gasket, Valve Body, No.2[01.1998 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35434-36023 |
US $12.93 |
||
|
35441C
|
35441C
35441-36010 Strainer, Solenoid Oil[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35441-36010 |
US $4.30 |
||
|
35448
|
35448
35448-36010 Tube, 2-3 Shift Valve Apply[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35448-36010 |
US $10.34 |
||
|
35450D
|
35450D
35450-60050 Body Assy, Upper ValveUPPER VALVE [01.1995 - 10.1997] HDJ80..4FC..TD2 |
35450-60050 |
US $637.73 |
||
|
35450D
|
35450D
35450-60051 Body Assy, Upper ValveUPPER VALVE [10.1997 - 01.1998] HDJ80..4FC..TD2 |
35450-60051 |
US $639.18 |
||
|
35599
|
35599
35599-60010 Cover, Manual Detent Spring[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35599-60010 |
US $3.20 |
||
|
35844A
|
35844A
35844-36010 Tube, Accumulator Back Pressure, No.1[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35844-36010 |
US $6.26 |
||
|
35891
|
35891
35891-36010 Tube, Overdrive Direct Clutch[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35891-36010 |
US $15.87 |
||
|
35893
|
35893
35893-36010 Gasket, Center Support Apply[08.1992 - 03.2001] FZJ80,HDJ80,HZJ80..4FC |
35893-36010 |
US $3.40 |
||
|
9024106053
|
9024106053
90241-06053
New Genuine Part
|
90241-06053 |
— | ||
|
9033404002
|
9033404002
90334-04002 New Genuine Part |
90334-04002 |
US $2.04 |
||
|
9094902065
|
9094902065
90949-02065 New Genuine Part |
90949-02065 |
US $5.53 |
||
|
9094902066
|
9094902066
90949-02066 New Genuine Part |
90949-02066 |
US $3.20 |
||
|
9094902096
|
9094902096
90949-02096 New Genuine Part |
90949-02096 |
US $1.46 |
||
|
9094902097
|
9094902097
90949-02097 New Genuine Part |
90949-02097 |
US $1.31 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
