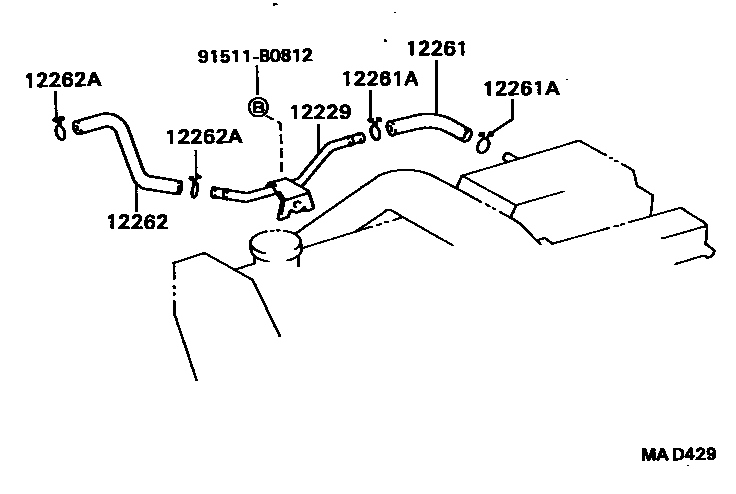

Ventilation Hose ([01.1990 - ] (9001- )1HDT) Diagram Toyota LAND CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 10.1996
- To
- 03.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12229
|
12229
12229-17010 Pipe, Ventilation[08.1992 - 01.1998] 1HDT..HDJ80 |
12229-17010 |
from US $21.68 |
||
|
12261
|
12261
12261-17010 Hose, Ventilation[08.1992 - 01.1998] 1HDT,1HZ..HDJ80,HZJ80 |
12261-17010 |
from US $7.71 |
||
|
12261A
|
12261A
90467-22010 Clip Or Clamp(For Ventilation Hose)[08.1992 - 01.1998] 1HDT,1HZ..HDJ80,HZJ80 |
90467-22010 |
from US $1.39 |
||
|
12262
|
12262
12262-17020 Hose, Ventilation, No.2[08.1992 - 03.2001] 1HDT..HDJ80 |
12262-17020 |
from US $20.03 |
||
|
12262A
|
12262A
90467-22010 Clip Or Clamp(For Ventilation Hose)[08.1992 - 01.1998] 1HD#..HDJ80 |
90467-22010 |
from US $1.39 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
