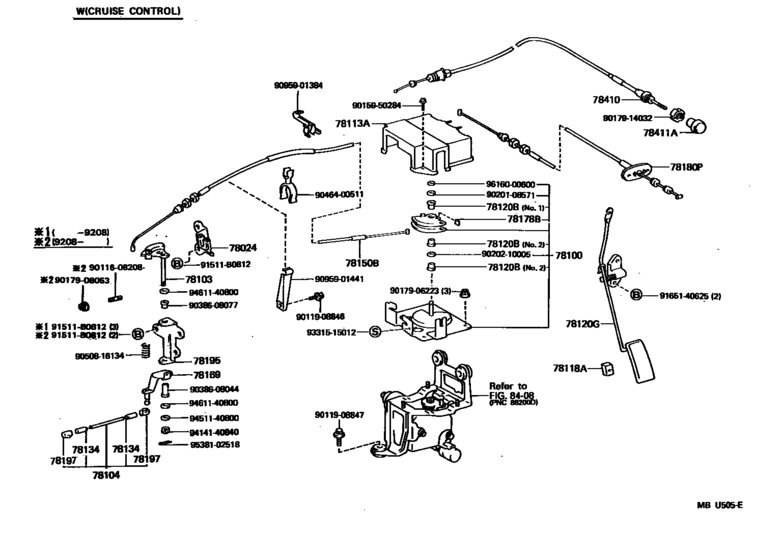

Accelerator Link ([01.1990 - 01.1995] W(CRUISE CONTROL) (9001-9501)HDJ80..4FC..ARL) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- HDJ80
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-60010 Bracket Sub-Assy, Accelerator Control Cable[01.1990 - 08.1992] HDJ80,HZJ80 |
78024-60010 |
US $24.29 |
||
|
78100
|
78100
78100-60040
Link Assy, Accelerator
[01.1990 - 08.1992] HDJ80..4FC..ARL |
78100-60040 |
— | ||
|
78103
|
78103
78103-60020
Rod Sub-Assy, Accelerator Connecting, No.1
[01.1990 - 08.1992] HDJ80,HZJ80 |
78103-60020 |
— | ||
| replacements | |||||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1990 - 08.1992] HDJ80,HZJ80 |
78103-60022 |
US $8.56 |
||
|
78103
|
78103
94142-60840 NUTSOLOTTED[01.1990 - 08.1992] HDJ80,HZJ80 |
94142-60840 |
US $1.16 |
||
|
78103
|
78103
94531-00800 Washer (For Transfer Shift Outer Lever)[01.1990 - 08.1992] HDJ80,HZJ80 |
94531-00800 |
from US $1.93 |
||
|
78103
|
78103
78103-60021
Rod Sub-Assy, Accelerator Connecting, No.1
[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
78103-60021 |
— | ||
| replacements | |||||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
78103-60022 |
US $8.56 |
||
|
78103
|
78103
94142-60840 NUTSOLOTTED[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
94142-60840 |
US $1.16 |
||
|
78103
|
78103
94531-00800 Washer (For Transfer Shift Outer Lever)[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
94531-00800 |
from US $1.93 |
||
|
78104
|
78104
78104-60010 Rod Sub-Assy, Accelerator Connecting, No.2[01.1990 - 08.1992] HDJ80,HZJ80 |
78104-60010 |
from US $6.81 |
||
|
78113A
|
78113A
78113-60040
Cover, Auto Drive Accelerator Link
[01.1990 - 08.1992] FJ80,HDJ80..4FC..ARL |
78113-60040 |
— | ||
|
78118A
|
78118A
78118-60010 Stopper, Accelerator Pedal[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80..RHD |
78118-60010 |
US $4.80 |
||
|
78120B
|
78120B
90386-08005 Bush (For Rear Seat Center Armrest)[01.1990 - 08.1992] FJ80,HDJ80..4FC..ARL NO.1 |
90386-08005 |
US $0.87 |
||
|
78120B
|
78120B
90386-08077 Bush (For Throttle Cam Shaft)[01.1990 - 08.1992] FJ80,HDJ80..4FC..ARL NO.2 |
90386-08077 |
from US $1.44 |
||
|
78120G
|
78120G
78120-60030 Rod Assy, Accelerator Pedal[01.1990 - 06.1990] FJ80,HDJ80,HZJ80..RHD |
78120-60030 |
US $49.50 |
||
|
78120G
|
78120G
78120-60070
Rod Assy, Accelerator Pedal
[06.1990 - 08.1992] FJ80,HDJ80..4FC..ARL |
78120-60070 |
— | ||
|
78134
|
78134
78134-10010 End, Accelerator Connecting Rod[01.1990 - 08.1992] HDJ80,HZJ80 |
78134-10010 |
US $2.80 |
||
|
78150B
|
78150B
78150-60020
Cable Assy, Accelerator Auto Drive
[01.1990 - 08.1992] HDJ80..4FC..ARL |
78150-60020 |
— | ||
| replacement | |||||
|
78150B
|
78150B
78150-60021
Cable Assy, Accelerator Auto Drive
[01.1990 - 08.1992] HDJ80..4FC..ARL |
78150-60021 |
— | ||
|
78150B
|
78150B
78150-60021
Cable Assy, Accelerator Auto Drive
[08.1992 - 01.1995] HDJ80..4FC..ARL |
78150-60021 |
— | ||
|
78169
|
78169
78169-60010 Hanger, Accelerator Spring[01.1990 - 08.1992] HDJ80,HZJ80 |
78169-60010 |
from US $3.57 |
||
|
78178B
|
78178B
78178-14010
Damper, Accel Control No.4 Rod Bracket
[08.1992 - 08.1996] HDJ80..TD4;HDJ80..4FC..ARL..TD2 |
78178-14010 |
— | ||
|
78180P
|
78180P
78180-60100
Cable Assy, Accelerator Control
[01.1990 - 06.1992] HDJ80..4FC..ARL |
78180-60100 |
— | ||
| replacement | |||||
|
78180P
|
78180P
78180-60320
Cable Assy, Accelerator Control
[01.1990 - 06.1992] HDJ80..4FC..ARL |
78180-60320 |
— | ||
|
78180P
|
78180P
78180-60101
Cable Assy, Accelerator Control
[06.1992 - 08.1992] HDJ80..4FC..ARL |
78180-60101 |
— | ||
|
78180P
|
78180P
78180-60103 Cable Assy, Accelerator Control[02.1993 - 03.2001] HDJ80..RHD..4FC..TD2 |
78180-60103 |
US $69.77 |
||
|
78180P
|
78180P
78180-60120
Cable Assy, Accelerator Control
[01.1990 - 08.1992] HDJ80..4FC..ARL W(*CRC) |
78180-60120 |
— | ||
|
78195
|
78195
78195-60010
Bracket, Accelerator Link
[01.1990 - 08.1992] HDJ80,HZJ80 |
78195-60010 |
— | ||
| replacement | |||||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[01.1990 - 08.1992] HDJ80,HZJ80 |
78195-60011 |
from US $5.42 |
||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[08.1992 - 03.2001] HDJ80,HZJ80..DSL,TD2 |
78195-60011 |
from US $5.42 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[01.1990 - 08.1992] HDJ80,HZJ80 |
78197-10010 |
from US $2.08 |
||
|
78410
|
78410
78410-60100 Cable Assy, Throttle Control[01.1990 - 08.1992] HDJ80,HZJ80..RHD |
78410-60100 |
US $33.90 |
||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80 |
78402-60030 |
from US $10.16 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9011608208
|
9011608208
90116-08208 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
90116-08208 |
US $1.44 |
||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.12 |
||
|
9011908847
|
9011908847
90119-08847
New Genuine Part
|
90119-08847 |
— | ||
|
9015950284
|
9015950284
90159-50284
New Genuine Part
|
90159-50284 |
— | ||
|
9017906223
|
9017906223
90179-06223
Clip(For Front Bumper), No.1
|
90179-06223 |
— | ||
| replacement | |||||
|
9017906223
|
9017906223
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.62 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
from US $0.96 |
||
|
9020108571
|
9020108571
90201-08571 New Genuine Part |
90201-08571 |
US $2.77 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
from US $1.76 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046400511
|
9046400511
90464-00511
New Genuine Part
|
90464-00511 |
— | ||
| replacement | |||||
|
9046400511
|
9046400511
90464-00612 New Genuine Part |
90464-00612 |
US $3.49 |
||
|
9050816134
|
9050816134
90508-16134 Spring, Clamp, No.4 |
90508-16134 |
US $0.96 |
||
|
9095901384
|
9095901384
90959-01384 Clamp, Accelerator Control Cable |
90959-01384 |
US $3.64 |
||
|
9095901441
|
9095901441
90959-01441
New Genuine Part
|
90959-01441 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9414140840
|
9414140840
94141-40840 New Genuine Part |
94141-40840 |
US $1.60 |
||
|
9451140800
|
9451140800
94511-40800
New Genuine Part
|
94511-40800 |
— | ||
|
9461140800
|
9461140800
94611-40800 New Genuine Part |
94611-40800 |
US $1.89 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
