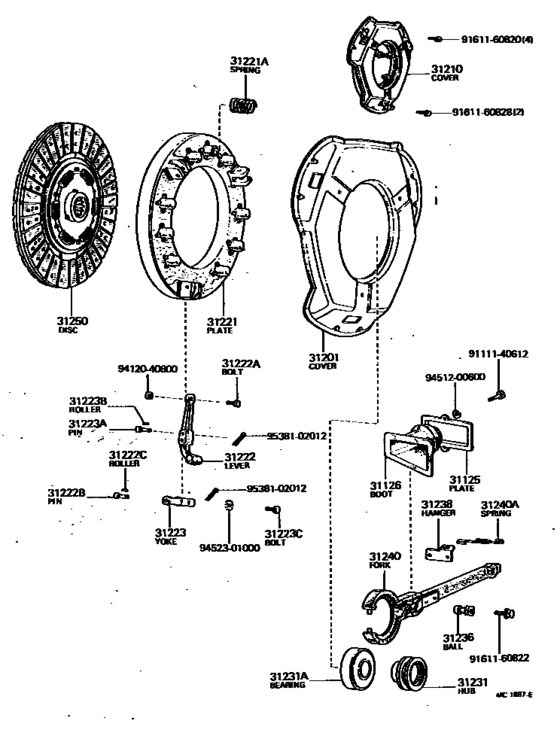

Clutch & Release Fork ([04.1972 - 07.1980] (7204-8007)HJ45) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31125
|
31125
31125-36020
Plate, Release Fork Boot
[04.1972 - 07.1980] HJ45 |
31125-36020 |
— | ||
|
31126
|
31126
31126-55020
Boot, Clutch Release Fork
[04.1972 - 07.1980] HJ45 |
31126-55020 |
— | ||
|
31201
|
31201
31201-61010 Cover Sub-Assy, ClutchCLUTCH [04.1972 - 07.1980] HJ45 |
31201-61010 |
US $81.54 |
||
|
31210
|
31210
31210-61021 Cover Assy, ClutchCLUTCH [09.1973 - 07.1980] HJ45 |
31210-61021 |
US $361.09 |
||
| replacement | |||||
|
31210
|
31210
31210-61023
Cover Assy, Clutch
[09.1973 - 07.1980] HJ45 |
31210-61023 |
— | ||
|
31221
|
31221
31221-55010 Plate, Clutch PressureCLUTCH PRESSURE [08.1974 - 07.1980] HJ45 |
31221-55010 |
US $107.74 |
||
|
31221A
|
31221A
90501-50047 Spring, Compression(For Clutch)COMPRESSION(FOR CLUTCH) [08.1974 - 07.1980] HJ45 WD=5,CW=7 |
90501-50047 |
US $7.57 |
||
|
31221A
|
31221A
90501-50056 Spring, Compression(For Clutch)COMPRESSION(FOR CLUTCH) [08.1974 - 07.1980] HJ45 WD=5,CW=5 |
90501-50056 |
US $10.05 |
||
|
31222
|
31222
31222-60011
Lever, Clutch Pressure
[08.1974 - 07.1980] HJ45 |
31222-60011 |
— | ||
|
31222A
|
31222A
90106-08005
Bolt, Clutch Pressure Lever Adjust
[08.1974 - 07.1980] HJ45 |
90106-08005 |
— | ||
|
31222B
|
31222B
90240-08011 Pin, W/hole(For Clutch Pressure Lever)W/HOLE(FOR CLUTCH PRESSURE LEVER) [08.1974 - 07.1980] HJ45 |
90240-08011 |
US $3.49 |
||
|
31222C
|
31222C
90361-02057 Roller Or Bearing, Clutch Pressure Plate PinCLUTCH PRESSURE PLATE PIN [07.1975 - 07.1980] HJ45 |
90361-02057 |
US $1.31 |
||
|
31223
|
31223
31223-55040 Yoke, Clutch Release LeverCLUTCH RELEASE LEVER [08.1974 - 07.1980] HJ45 |
31223-55040 |
US $14.27 |
||
|
31223A
|
31223A
90249-06003 Pin(For Clutch Pressure Lever)[08.1974 - 07.1980] HJ45 |
90249-06003 |
US $3.79 |
||
|
31223B
|
31223B
90361-06020 Roller, Clutch Pressure LeverCLUTCH PRESSURE LEVER [08.1974 - 07.1980] HJ45 |
90361-06020 |
US $1.60 |
||
|
31223C
|
31223C
90101-10077 Bolt, Hexagon(For Clutch Release Lever Yoke)HEXAGON(FOR CLUTCH RELEASE LEVER YOKE) [08.1974 - 07.1980] HJ45 |
90101-10077 |
US $2.33 |
||
|
31231
|
31231
31231-60020
Hub, Clutch Release Bearing
[04.1972 - 07.1980] HJ45 |
31231-60020 |
— | ||
|
31231A
|
31231A
90363-45079 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [08.1974 - 07.1980] BJ4#,HJ45 |
90363-45079 |
US $37.85 |
||
|
31236
|
31236
31236-55010
Ball, Release Fork
[04.1972 - 07.1980] HJ45 |
31236-55010 |
— | ||
|
31238
|
31238
31238-60050
Hanger, Release Fork Retracting Spring
[04.1972 - 07.1980] HJ45 |
31238-60050 |
— | ||
|
31240
|
31240
31204-55020
Fork Assy, Clutch Release
[04.1972 - 07.1980] HJ45 |
31204-55020 |
— | ||
|
31240A
|
31240A
90506-18055
Spring, Tension(For Clutch Release Fork Return)
[08.1974 - 07.1980] HJ45 |
90506-18055 |
— | ||
|
31250
|
31250
31250-60013 Disc Assy, ClutchCLUTCH [02.1979 - 07.1980] HJ45 |
31250-60013 |
US $240.24 |
||
| replacement | |||||
|
31250
|
31250
31250-36353 Disc Assy, Clutch[02.1979 - 07.1980] HJ45 |
31250-36353 |
US $250.43 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9452301000
|
9452301000
94523-01000 Washer, Toothed(For Rear Brake Shoe Retracting Spring) |
94523-01000 |
US $2.33 |
||
|
9538102012
|
9538102012
95381-02012
New Genuine Part
|
95381-02012 |
— | ||
