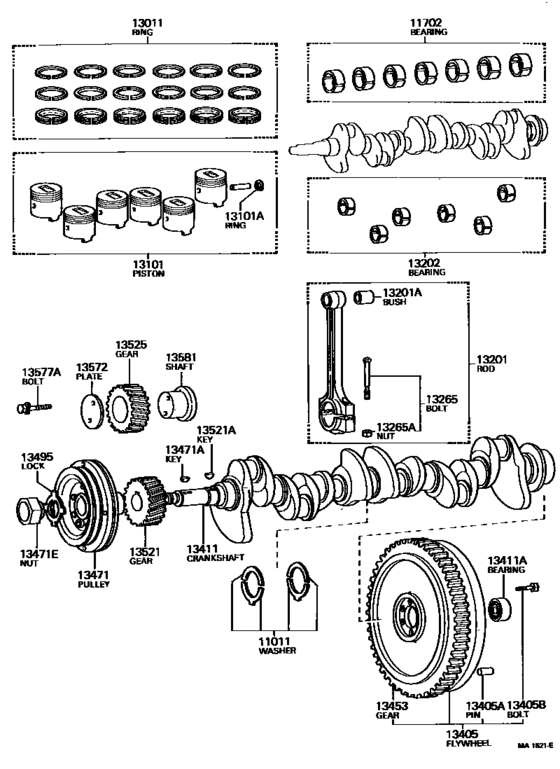

Crankshaft & Piston ([01.1975 - 07.1980] (7501-8007)H) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-46020
Washer Set, Crankshaft Thrust
[04.1972 - 07.1980] H..HJ45 STD |
11011-46020 |
— | ||
|
11011
|
11011
11012-46020 Washer Set, Crankshaft Thrust[04.1972 - 07.1980] H..HJ45 O/S 0.125 |
11012-46020 |
US $38.58 |
||
|
11011
|
11011
11013-46020
Washer Set, Crankshaft Thrust
[04.1972 - 07.1980] H..HJ45 O/S 0.25 |
11013-46020 |
— | ||
|
11702
|
11702
11702-47012
Bearing Set, Crankshaft
[09.1977 - 07.1980] H..HJ45 STD |
11702-47012 |
— | ||
|
11702
|
11702
11703-47012
Bearing Set, Crankshaft
[09.1977 - 07.1980] H..HJ45 U/S 0.05 |
11703-47012 |
— | ||
|
11702
|
11702
11704-47012 Bearing Set, CrankshaftCRANKSHAFT [09.1977 - 07.1980] H..HJ45 U/S 0.25 |
11704-47012 |
US $372.74 |
||
|
11702
|
11702
11705-47012 Bearing Set, CrankshaftCRANKSHAFT [09.1977 - 07.1980] H..HJ45 U/S 0.50 |
11705-47012 |
US $372.74 |
||
|
11702
|
11702
11706-47012 Bearing Set, CrankshaftCRANKSHAFT [09.1977 - 07.1980] H..HJ45 U/S 0.75 |
11706-47012 |
US $372.74 |
||
|
11702
|
11702
11707-47012
Bearing Set, Crankshaft
[09.1977 - 07.1980] H..HJ45 U/S 1.00 |
11707-47012 |
— | ||
|
13011
|
13011
13011-47023
Ring Set, Piston (STD)
[10.1976 - 07.1980] H..HJ45 STD |
13011-47023 |
— | ||
|
13011
|
13011
13015-47023
Ring Set, Piston (OS 1.00)
[10.1976 - 07.1980] H..HJ45 O/S 1.00 |
13015-47023 |
— | ||
|
13101
|
13101
13081-47013
Piston Sub-Assy, W/pin (STD)
[02.1979 - 07.1980] H..HJ45 STD |
13081-47013 |
— | ||
|
13101
|
13101
13085-47013
Piston Sub-Assy, W/pin (OS 1.00)
[02.1979 - 07.1980] H..HJ45 O/S 1.00 |
13085-47013 |
— | ||
|
13101A
|
13101A
90521-31068
Ring, Hole Snap(For Piston Pin)
[04.1972 - 07.1980] H..HJ45 |
90521-31068 |
— | ||
|
13201
|
13201
13201-48010
Rod Sub-Assy, Connecting
[04.1972 - 07.1980] H..HJ45 |
13201-48010 |
— | ||
|
13201A
|
13201A
90999-73083
Bush(For Connecting Rod Small End)
[09.1978 - 07.1980] H..HJ45 |
90999-73083 |
— | ||
|
13202
|
13202
13202-47011
Bearing Set, Connecting Rod
[04.1972 - 07.1980] H..HJ45 STD |
13202-47011 |
— | ||
|
13202
|
13202
13203-47011 Bearing Set, Connecting Rod[04.1972 - 07.1980] H..HJ45 U/S 0.05 |
13203-47011 |
US $183.46 |
||
|
13202
|
13202
13204-47011 Bearing Set, Connecting Rod[04.1972 - 07.1980] H..HJ45 U/S 0.25 |
13204-47011 |
US $183.46 |
||
|
13202
|
13202
13205-47011 Bearing Set, Connecting Rod[04.1972 - 07.1980] H..HJ45 U/S 0.50 |
13205-47011 |
US $183.46 |
||
|
13202
|
13202
13207-47011 Bearing Set, Connecting Rod[04.1972 - 07.1980] H..HJ45 U/S 1.00 |
13207-47011 |
US $183.46 |
||
|
13265
|
13265
13265-48010
Bolt, Connecting Rod
[04.1972 - 07.1980] H..HJ45 |
13265-48010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-49035
Bolt, Connecting Rod
[04.1972 - 07.1980] H..HJ45 |
13265-49035 |
— | ||
|
13265A
|
13265A
90170-11112
Nut, Hexagon(For Connecting Rod Bolt)
[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
90170-11112 |
— | ||
| replacement | |||||
|
13265A
|
13265A
90170-11008 Nut, Hexagon(For Connecting Rod Bolt)HEXAGON(FOR CONNECTING ROD BOLT) [04.1972 - 07.1980] B..BJ4#; H..HJ45 |
90170-11008 |
US $2.77 |
||
|
13405
|
13405
13405-49065
Flywheel Sub-Assy
[04.1972 - 07.1980] H..HJ45 N=108 |
13405-49065 |
— | ||
|
13405A
|
13405A
90253-11009 Pin, Straight(For Flywheel)STRAIGHT(FOR FLYWHEEL) [04.1972 - 07.1980] H..HJ45 L=14,OD=11 |
90253-11009 |
US $2.77 |
||
|
13405B
|
13405B
90105-12039 Bolt, Flywheel Setting[06.1973 - 07.1980] B..BJ4#; H..HJ45 |
90105-12039 |
US $4.32 |
||
|
13411
|
13411
13411-47012
Crankshaft
[04.1972 - 07.1980] H..HJ45 |
13411-47012 |
— | ||
|
13411A
|
13411A
90363-15004 Bearing(For Input Shaft Front)[04.1979 - 08.1979] H..HJ45 6202 2NK |
90363-15004 |
from US $10.08 |
||
|
13411A
|
13411A
97120-06202 Bearing(For Input Shaft Front)[01.1975 - 04.1979] 2F..FJ4#,55 6202ZZ; H..HJ45 6202ZZ |
97120-06202 |
US $7.57 |
||
|
13453
|
13453
13453-47010 Gear, Flywheel Ring[04.1972 - 07.1980] H..HJ45 N=108 |
13453-47010 |
US $297.02 |
||
|
13471
|
13471
13470-47030
Pulley, Crankshaft
[09.1977 - 07.1980] H..HJ45 |
13470-47030 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
90280-05010 |
from US $1.83 |
||
|
13471E
|
13471E
90179-22062 Nut(For Crankshaft Pulley)[04.1972 - 07.1980] H..HJ45 |
90179-22062 |
US $5.44 |
||
|
13521
|
13521
13521-46010
Gear Or Sprocket, Crankshaft Timing
[04.1972 - 07.1980] H..HJ45 N=25 |
13521-46010 |
— | ||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[03.1969 - 07.1980] B..BJ4#; F,2F..FJ4#,55; H..HJ45 |
90280-05010 |
from US $1.83 |
||
|
13525
|
13525
13525-46010
Gear, Idle, No.1
[04.1972 - 07.1980] H..HJ45 N=24 |
13525-46010 |
— | ||
|
13572
|
13572
13572-48011
Plate, Idle Gear Thrust
[07.1972 - 07.1980] H..HJ45 |
13572-48011 |
— | ||
|
13577A
|
13577A
90101-08232
Bolt, Hexagon(For Idle Gear Bolt Lock)
[04.1972 - 07.1980] H..HJ45 |
90101-08232 |
— | ||
|
13581
|
13581
13581-48011
Shaft, Idle Gear, No.1
[07.1972 - 07.1980] H..HJ45 |
13581-48011 |
— | ||
