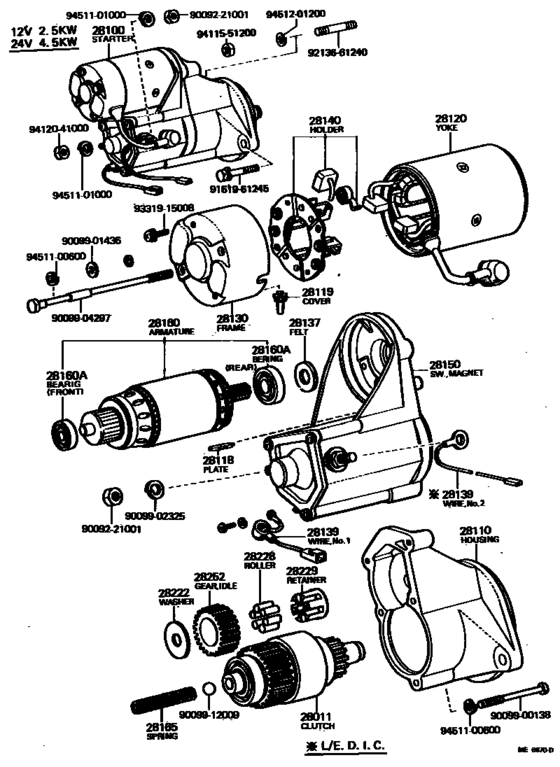

Starter ([09.1977 - 07.1980] (7709-8007)H) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-77090 Clutch Sub-Assy, StarterSTARTER [01.1979 - 07.1980] B..BJ4#; H..HJ45..ARL,GEN 12V 2.5KW; H..HJ45..EUR 24V 4.5KW,W/E.D.I.C. |
28011-77090 |
US $713.44 |
||
| replacement | |||||
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[01.1979 - 07.1980] B..BJ4#; H..HJ45..ARL,GEN 12V 2.5KW; H..HJ45..EUR 24V 4.5KW,W/E.D.I.C. |
28011-54010 |
from US $200.05 |
||
|
28100
|
28100
28100-47040 Starter Assy[01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW,REDUCTION.W/E.D.I.C. |
28100-47040 |
US $2,242.24 |
||
| replacement | |||||
|
28100
|
28100
28100-47050
Starter Assy
[01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW,REDUCTION.W/E.D.I.C. |
28100-47050 |
— | ||
|
28100
|
28100
28100-47050
Starter Assy
[01.1979 - 07.1980] H..HJ45..GEN;H..HJ45..VKC..ARL 12V 2.5KW,REDUCTION.L/E.D.I.C. |
28100-47050 |
— | ||
|
28110
|
28110
28115-47030
Housing Assy, Starter Drive
[09.1977 - 07.1980] H..HJ45 |
28115-47030 |
— | ||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28118-77090 |
— | ||
|
28119
|
28119
28119-77090
Cover, Starter End Frame
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28119-77090 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28199-77090 |
— | ||
|
28120
|
28120
28120-47040
Yoke Assy, Starter
[01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW |
28120-47040 |
— | ||
|
28130
|
28130
28130-47030 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [09.1977 - 07.1980] H..HJ45 |
28130-47030 |
US $81.54 |
||
| replacements | |||||
|
28130
|
28130
28130-47060
Frame Assy, Starter Commutator End
[09.1977 - 07.1980] H..HJ45 |
28130-47060 |
— | ||
|
28130
|
28130
28199-46080 Cover, Starter End Frame[09.1977 - 07.1980] H..HJ45 |
28199-46080 |
US $2.97 |
||
|
28130
|
28130
90099-04207
New Genuine Part
[09.1977 - 07.1980] H..HJ45 |
90099-04207 |
— | ||
|
28137
|
28137
90099-02205
Washer, Felt, Starter
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
90099-02205 |
— | ||
|
28139
|
28139
28139-47050
Wire, Lead, No.1(For Starter)
[09.1977 - 07.1980] H..HJ45..EUR,GEN;H..HJ45..VKC..ARL NO.2,L/E.D.I.C. |
28139-47050 |
— | ||
|
28139
|
28139
28139-77090
Wire, Lead, No.1(For Starter)
[09.1977 - 07.1980] B,H..BJ4#,HJ45 NO.1 |
28139-77090 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56230
Wire, Lead, No.1(For Starter)
[09.1977 - 07.1980] B,H..BJ4#,HJ45 NO.1 |
28139-56230 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28140-77090 |
from US $60.98 |
||
|
28150
|
28150
28150-47040 Switch Assy, Magnet StarterMAGNET STARTER [01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW |
28150-47040 |
US $572.21 |
||
|
28160
|
28160
28160-47040
Armature Assy, Starter
[01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW |
28160-47040 |
— | ||
| replacement | |||||
|
28160
|
28160
28160-54140 Armature Assy, Starter[01.1979 - 07.1980] H..HJ45..ARL,GEN 12V 2.5KW |
28160-54140 |
US $283.05 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[09.1977 - 07.1980] B,H..BJ4#,HJ45 REAR |
90099-10107 |
US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[09.1977 - 07.1980] B,H..BJ4#,HJ45 FRONT |
90099-10119 |
US $7.34 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28165-77090 |
— | ||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28222-77090 |
— | ||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28229-56080 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[09.1977 - 07.1980] B,H..BJ4#,HJ45 |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900138
|
9009900138
90099-00138
New Genuine Part
|
90099-00138 |
— | ||
| replacement | |||||
|
9009900138
|
9009900138
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
US $0.29 |
||
|
9009904297
|
9009904297
90099-04297
BOLT
|
90099-04297 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.92 |
||
|
9213661240
|
9213661240
92136-61240 Bolt, Stud(For Front Drive Shaft Bearing Bracket) |
92136-61240 |
US $1.05 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
