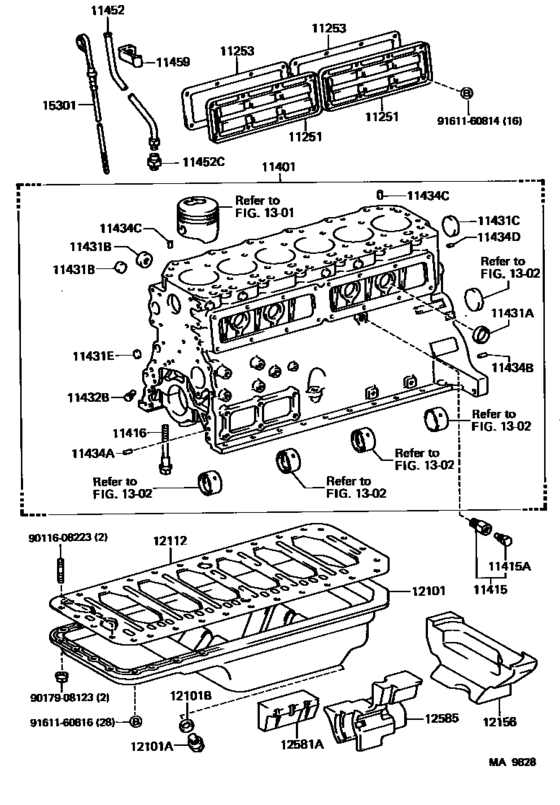

Cylinder Block ([08.1987 - ] (8708- )2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- HJ60
- grade
- GX
- Roof
- HRF
- ENGINE
- 2H
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11251-68010
Cover, Valve Push Rod
[08.1987 - 01.1990] 12HT,2H..HJ6# |
11251-68010 |
— | ||
|
11253
|
11253
11253-68010
Gasket, Valve Push Rod Cover
[08.1987 - 01.1990] 12HT,2H..HJ6# |
11253-68010 |
— | ||
| replacement | |||||
|
11253
|
11253
11253-68020 Gasket, Valve Push Rod Cover[08.1987 - 01.1990] 12HT,2H..HJ6# |
11253-68020 |
US $18.31 |
||
|
11401
|
11401
11401-69196 Block Sub-Assy, Cylinder[08.1987 - 01.1990] 2H..HJ60 |
11401-69196 |
US $5,489.12 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1987 - 01.1990] 3F#..FJ62; 2H..HJ60 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
96432-23814 |
— | ||
|
11416
|
11416
90105-14039
Bolt(For Crankshaft Bearing Cap Set)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
90105-14039 |
— | ||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1987 - 01.1990] 2H..HJ60 |
96411-43500 |
from US $3.57 |
||
|
11431B
|
11431B
90331-35002 Plug, Tight, No.1(For Cylinder Block)[08.1987 - 01.1990] 12HT,2H..HJ6# OD=35,ID=12 |
90331-35002 |
from US $2.62 |
||
|
11431B
|
11431B
90331-35003 Plug, Tight, No.2(For Cylinder Block)[08.1987 - 01.1990] 12HT,2H..HJ6# OD=35,ID=14 |
90331-35003 |
US $4.95 |
||
|
11431B
|
11431B
96411-42000 Plug, Tight, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# 外径＝２０ |
96411-42000 |
from US $2.73 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1987 - 01.1990] 12HT,2H..HJ6# |
96411-45000 |
from US $3.84 |
||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# |
96411-41800 |
from US $1.66 |
||
|
11432B
|
11432B
90345-51003
Plug, W/head Taper Screw, No.1
[08.1987 - 01.1990] 12HT,2H..HJ6# |
90345-51003 |
— | ||
| replacement | |||||
|
11432B
|
11432B
90345-51025 Plug, W/head Taper Screw, No.2[08.1987 - 01.1990] 12HT,2H..HJ6# |
90345-51025 |
US $3.76 |
||
|
11434A
|
11434A
90250-08054 Pin, Straight[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.01 |
||
|
11434B
|
11434B
90250-08054 Pin, Straight[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
11434C
|
11434C
90250-06037 Pin, Straight (For Cylinder Head Set)[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝１２，外径＝６ |
90250-06037 |
US $4.51 |
||
|
11434C
|
11434C
90250-08074 Pin, Straight(For Timing Gear Case)[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝１５，外径＝８ |
90250-08074 |
US $1.79 |
||
|
11434D
|
11434D
90250-08054 Pin, Straight[08.1987 - 01.1990] 12HT,2H..HJ6# 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
11452
|
11452
11409-68020
Guide, Oil Level Gage
[08.1987 - 01.1990] 12HT,2H..HJ6# |
11409-68020 |
— | ||
|
11452C
|
11452C
96335-11600
Union(For Oil Level Gage Guide)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
96335-11600 |
— | ||
|
11459
|
11459
11459-68020
Support, Oil Level Gage Guide
[08.1987 - 01.1990] 12HT,2H..HJ6# |
11459-68020 |
— | ||
|
12101
|
12101
12101-68030
Pan Sub-Assy, Oil
[08.1987 - 01.1990] 2H..HJ60;12HT..HJ61..MTM |
12101-68030 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-68040
Pan Sub-Assy, Oil
[08.1987 - 01.1990] 2H..HJ60;12HT..HJ61..MTM |
12101-68040 |
— | ||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90430-18023 |
from US $1.03 |
||
|
12112
|
12112
11429-68010 Pan, Oil No.2[08.1987 - 01.1990] 12HT,2H..HJ6# |
11429-68010 |
US $243.15 |
||
|
12156
|
12156
12156-68010
Insulator, Oil Pan
[08.1987 - 01.1990] 12HT,2H..HJ6# |
12156-68010 |
— | ||
|
12581A
|
12581A
12581-68011
Insulator, Cylinder Block, No.1
[08.1987 - 01.1990] 12HT,2H..HJ6# |
12581-68011 |
— | ||
|
12585
|
12585
12585-68010 Insulator, Cylinder Brock, No.5[08.1987 - 01.1990] 2H..HJ60;12HT..HJ61..ATM |
12585-68010 |
US $147.06 |
||
|
15301
|
15301
15301-68020
Gage Sub-Assy, Oil Level
[08.1987 - 01.1990] 12HT,2H..HJ6# |
15301-68020 |
— | ||
|
9011608223
|
9011608223
90116-08223
Bolt, Stud (For Front Axle Differential Carrier Setting)
|
90116-08223 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
