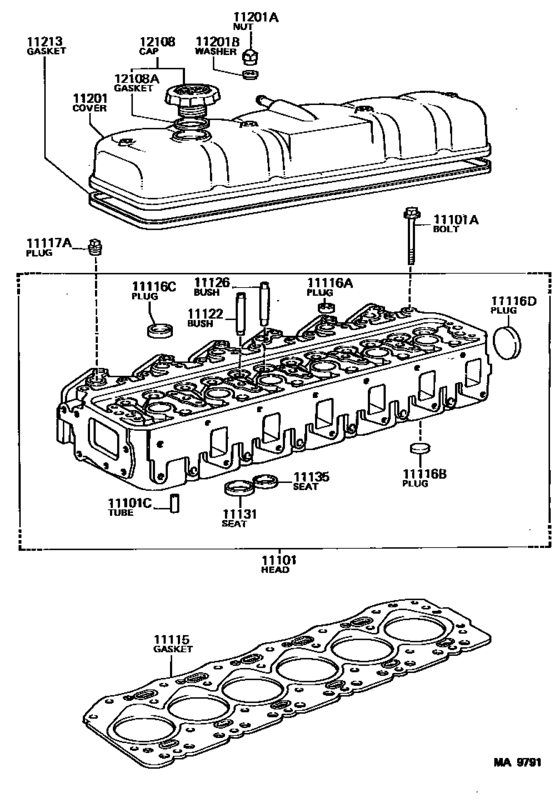

Cylinder Head ([08.1987 - ] (8708- )2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- HJ60
- grade
- GX
- Roof
- HRF
- ENGINE
- 2H
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-68011
Head Sub-Assy, Cylinder
[08.1987 - 08.1988] 2H..HJ60 |
11101-68011 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-68012
Head Sub-Assy, Cylinder
[08.1987 - 08.1988] 2H..HJ60 |
11101-68012 |
— | ||
|
11101
|
11101
87209-90B35
Pipe, Heater Water Outlet, B
[08.1987 - 08.1988] 2H..HJ60 |
87209-90B35 |
— | ||
|
11101
|
11101
87245-90A19
Hose, Heater Water, Outlet E
[08.1987 - 08.1988] 2H..HJ60 |
87245-90A19 |
— | ||
|
11101
|
11101
87248-90A31
Pipe, Heater Water Outlet, A
[08.1987 - 08.1988] 2H..HJ60 |
87248-90A31 |
— | ||
|
11101
|
11101
87248-90K18
Pipe, Heater Water Outlet, A
[08.1987 - 08.1988] 2H..HJ60 |
87248-90K18 |
— | ||
|
11101
|
11101
90467-21010 Clip(For Ventilation Hose No.2)[08.1987 - 08.1988] 2H..HJ60 |
90467-21010 |
from US $2.54 |
||
|
11101
|
11101
11101-68012
Head Sub-Assy, Cylinder
[08.1988 - 01.1990] 2H..HJ60 |
11101-68012 |
— | ||
|
11101A
|
11101A
90910-02070 Bolt(For Cylinder Head Set)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90910-02070 |
from US $8.91 |
||
|
11101C
|
11101C
90440-15141 Tube(For Cylinder Head)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90440-15141 |
US $8.67 |
||
|
11115
|
11115
11115-68020 Gasket, Cylinder Head[08.1987 - 01.1990] 2H..HJ60 |
11115-68020 |
US $164.53 |
||
| replacement | |||||
|
11115
|
11115
11115-68040 Gasket, Cylinder HeadCYLINDER HEAD [08.1987 - 01.1990] 2H..HJ60 |
11115-68040 |
from US $71.96 |
||
|
11116A
|
11116A
96411-42000 Plug, Tight, No.1[08.1987 - 01.1990] 2H..HJ60 |
96411-42000 |
from US $2.73 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
96411-43000 Plug, Tight, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# |
96411-43000 |
from US $3.67 |
||
|
11116D
|
11116D
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1987 - 01.1990] 12HT,2H..HJ6# |
96411-45000 |
from US $3.84 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# |
90345-54005 |
from US $3.90 |
||
|
11122
|
11122
11122-68010 Bush, Intake Valve Guide[08.1987 - 01.1990] 12HT,2H..HJ6# ＳＴＤ |
11122-68010 |
US $15.41 |
||
|
11126
|
11126
11122-68010 Bush, Intake Valve Guide[08.1987 - 01.1990] 12HT,2H..HJ6# ＳＴＤ |
11122-68010 |
US $15.41 |
||
|
11131
|
11131
11131-68010 Seat, Intake Valve[08.1987 - 01.1990] 2H..HJ60 ＳＴＤ |
11131-68010 |
US $29.99 |
||
|
11135
|
11135
11135-68010 Seat, Exhaust Valve[08.1987 - 01.1990] 12HT,2H..HJ6# ＳＴＤ |
11135-68010 |
US $24.32 |
||
|
11201
|
11201
11201-68011
Cover Sub-Assy, Cylinder Head
[08.1987 - 01.1990] 2H..HJ60 |
11201-68011 |
— | ||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90176-08014 |
from US $2.73 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90210-13001 |
from US $2.52 |
||
|
11213
|
11213
11213-68010 Gasket, Cylinder Head Cover[08.1987 - 01.1990] 2H..HJ60 |
11213-68010 |
from US $19.62 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1987 - 01.1990] 12HT,2H..HJ6# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1987 - 01.1990] 12HT,2H..HJ6# |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90430-37140 |
from US $1.17 |
||
