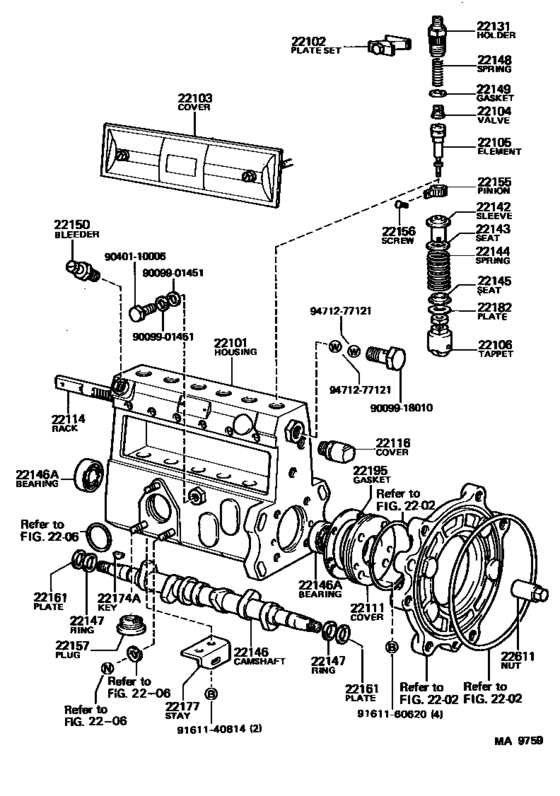

Injection Pump Body ([08.1987 - ] (8708- )2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- HJ60
- grade
- GX
- Roof
- HRF
- ENGINE
- 2H
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22190-68110 Housing Sub-Assy, Injection Pump[08.1987 - 01.1990] 2H..HJ60..ATM |
22190-68110 |
US $806.62 |
||
|
22102
|
22102
22102-77021
Plate Set, Valve Holder Lock
[08.1987 - 01.1990] 2H..HJ60 |
22102-77021 |
— | ||
|
22103
|
22103
22103-77130
Cover Sub-Assy, Injection Pump
[08.1987 - 01.1990] 2H..HJ60 |
22103-77130 |
— | ||
|
22104
|
22104
22104-68110
Valve Sub-Assy, Injection Pump Delivery
[08.1987 - 01.1990] 2H..HJ60 |
22104-68110 |
— | ||
|
22105
|
22105
22105-68110 Element Sub-Assy, Injection Pump[08.1987 - 01.1990] 2H..HJ60..ATM |
22105-68110 |
US $78.62 |
||
|
22105
|
22105
22105-68130 Element Sub-Assy, Injection Pump[08.1987 - 08.1988] 2H..HJ60..ATM ｶﾝﾚｲﾁ ｼﾖｳ |
22105-68130 |
US $78.62 |
||
|
22106
|
22106
22106-46010
Tappet Sub-Assy, Injection Pump
[08.1987 - 08.1988] 12HT,2H..HJ6# |
22106-46010 |
— | ||
|
22111
|
22111
22111-68010
Cover, Injection Pump Camshaft Bearing
[08.1987 - 01.1990] 2H..HJ60 |
22111-68010 |
— | ||
|
22114
|
22114
22114-47010
Rack, Control
[08.1987 - 01.1990] 2H..HJ60..ATM |
22114-47010 |
— | ||
|
22116
|
22116
22116-68110
Cover, Control Rack
[08.1987 - 01.1990] 2H..HJ60..ATM |
22116-68110 |
— | ||
|
22131
|
22131
22131-77020 Holder, Delivery Valve[08.1987 - 01.1990] 2H..HJ60 |
22131-77020 |
US $10.13 |
||
|
22142
|
22142
22142-77020
Sleeve, Plunger Control
[08.1987 - 01.1990] 2H..HJ60 |
22142-77020 |
— | ||
| replacement | |||||
|
22142
|
22142
22142-58230 Sleeve, Plunger Control[08.1987 - 01.1990] 2H..HJ60 |
22142-58230 |
US $6.64 |
||
|
22143
|
22143
22143-77020
Seat, Spring Upper
[08.1987 - 01.1990] 2H..HJ60 |
22143-77020 |
— | ||
|
22144
|
22144
22144-46010
Spring, Pump Plunger
[08.1987 - 08.1988] 12HT,2H..HJ6# |
22144-46010 |
— | ||
|
22145
|
22145
22145-46010
Seat, Spring, Lower
[08.1987 - 01.1990] 2H..HJ60 |
22145-46010 |
— | ||
|
22146
|
22146
22146-68110
Camshaft, Injection Pump
[08.1987 - 01.1990] 2H..HJ60..ATM |
22146-68110 |
— | ||
|
22146A
|
22146A
90099-10087
Bearing(For Injection Camshaft)
[08.1987 - 01.1990] 2H..HJ60 |
90099-10087 |
— | ||
|
22147
|
22147
22147-77020
Ring, Camshaft Adjust
[08.1987 - 01.1990] 2H..HJ60 |
22147-77020 |
— | ||
|
22148
|
22148
22148-68010
Spring, Delivery Valve
[08.1987 - 01.1990] 2H..HJ60 |
22148-68010 |
— | ||
|
22149
|
22149
22149-76010 Gasket, Delivery Valve[08.1987 - 01.1990] 2H..HJ60 |
22149-76010 |
US $4.12 |
||
|
22150
|
22150
22150-67010
Bleeder Sub-Assy, Air
[08.1987 - 01.1990] 2H..HJ60 |
22150-67010 |
— | ||
|
22155
|
22155
22155-76010
Pinion, Plunger Control
[08.1987 - 01.1990] 2H..HJ60 |
22155-76010 |
— | ||
|
22156
|
22156
22156-76010 Screw, Plunger Control Pinion Clamp[08.1987 - 08.1988] 12HT,2H..HJ6# |
22156-76010 |
US $2.04 |
||
|
22157
|
22157
22157-48024
Plug, Injection Pump Felt Plate
[08.1987 - 01.1990] 2H..HJ60..ATM |
22157-48024 |
— | ||
|
22161
|
22161
22161-76010 Plate, Camshaft Shim[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．１０,T=0.10,NO.1 |
22161-76010 |
US $2.04 |
||
|
22161
|
22161
22162-76010 Plate, Camshaft Shim[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．１２,T=0.12,NO.1 |
22162-76010 |
US $2.04 |
||
|
22161
|
22161
22163-76010 Plate, Camshaft Shim[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．１４,T=0.14,NO.1 |
22163-76010 |
US $2.04 |
||
|
22161
|
22161
22164-76010 Plate, Camshaft Shim[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．１６,T=0.16,NO.1 |
22164-76010 |
US $2.04 |
||
|
22161
|
22161
22165-76010 Plate, Camshaft Shim[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．１８,T=0.18,NO.1 |
22165-76010 |
US $2.04 |
||
|
22161
|
22161
22166-76010
Plate, Camshaft Shim
[08.1987 - 01.1990] 2H..HJ60 厚さ＝０．５０,T=0.50,NO.1 |
22166-76010 |
— | ||
|
22174A
|
22174A
90099-13020
Key(For Spline Shaft)
[08.1987 - 01.1990] 2H..HJ60 |
90099-13020 |
— | ||
|
22177
|
22177
22177-68010
Stay, Injection Pump Body
[08.1987 - 01.1990] 2H..HJ60 |
22177-68010 |
— | ||
|
22182
|
22182
22182-46010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．１０ |
22182-46010 |
— | ||
|
22182
|
22182
22183-46010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．２０ |
22183-46010 |
— | ||
|
22182
|
22182
22184-46010 Plate, Tappet Adjusting Shim[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．３０ |
22184-46010 |
US $2.33 |
||
|
22182
|
22182
22185-46010 Plate, Tappet Adjusting Shim[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．４０ |
22185-46010 |
US $2.33 |
||
|
22182
|
22182
22186-46010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．５０ |
22186-46010 |
— | ||
|
22182
|
22182
22186-48010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．１５ |
22186-48010 |
— | ||
| replacement | |||||
|
22182
|
22182
22185-48010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．１５ |
22185-48010 |
— | ||
|
22182
|
22182
22187-46010
Plate, Tappet Adjusting Shim
[08.1987 - 08.1988] 2H..HJ60..MTM 厚さ＝０．６０; 12HT..HJ61;2H..HJ60..ATM 厚さ＝０．６０ |
22187-46010 |
— | ||
|
22182
|
22182
22188-46010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．７０ |
22188-46010 |
— | ||
|
22182
|
22182
22189-46010
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．８０ |
22189-46010 |
— | ||
|
22182
|
22182
22189-48031
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝０．９０ |
22189-48031 |
— | ||
|
22182
|
22182
22189-48032
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝１．００ |
22189-48032 |
— | ||
|
22182
|
22182
22189-48033
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝１．１０ |
22189-48033 |
— | ||
|
22182
|
22182
22189-48034
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝１．２０ |
22189-48034 |
— | ||
|
22182
|
22182
22189-48035
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝１．３０ |
22189-48035 |
— | ||
|
22182
|
22182
22189-48036
Plate, Tappet Adjusting Shim
[08.1987 - 01.1990] 2H..HJ60..ATM 厚さ＝１．４０ |
22189-48036 |
— | ||
|
22195
|
22195
22195-68010
Gasket, Bearing Cover
[08.1987 - 01.1990] 2H..HJ60 |
22195-68010 |
— | ||
|
22611
|
22611
22611-68010
Nut, Timer Round
[08.1987 - 01.1990] 2H..HJ60 |
22611-68010 |
— | ||
|
9009901451
|
9009901451
90099-01451
Washer, Injection Pump Drain Union
|
90099-01451 |
— | ||
|
9009918010
|
9009918010
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
from US $3.32 |
||
|
9040110006
|
9040110006
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-10006 |
from US $2.81 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9471277121
|
9471277121
94712-77121 Gasket, Nipple Union(For Fuel) |
94712-77121 |
from US $1.12 |
||
