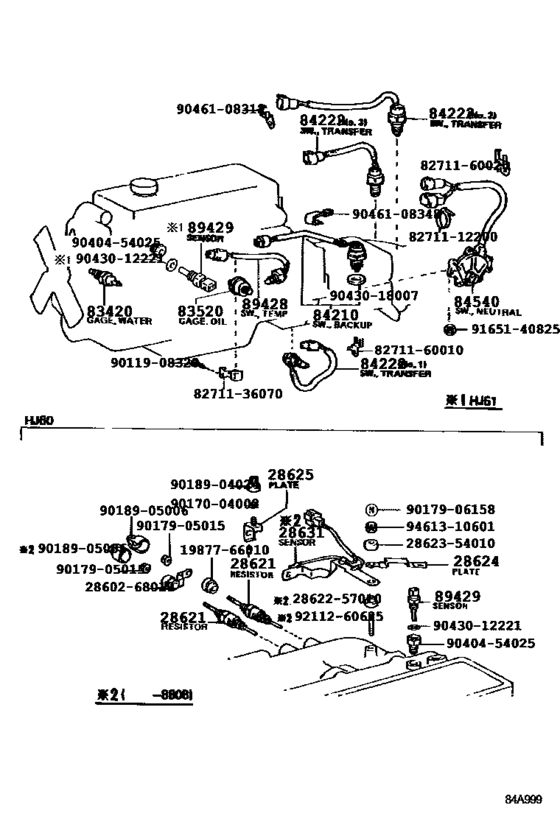

Switch & Relay & Computer ([08.1987 - ] (8708- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- HJ60
- grade
- GX
- Roof
- HRF
- ENGINE
- 2H
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-64011 Resistor, Glow Plug[08.1987 - 08.1988] 2H..HJ60 |
28621-64011 |
from US $147.21 |
||
|
28621
|
28621
28621-68020
Resistor, Glow Plug
[08.1988 - 01.1990] 2H..HJ60 |
28621-68020 |
— | ||
|
28624
|
28624
28624-68011 Plate, Current Sensor[08.1987 - 08.1988] 2H..HJ60 |
28624-68011 |
US $51.37 |
||
|
28625
|
28625
28625-68040
Plate, Glow Plug Resistor
[08.1987 - 01.1990] 2H..HJ60 |
28625-68040 |
— | ||
|
28631
|
28631
28631-68010 Sensor, Glow Plug Current[08.1987 - 08.1988] 2H..HJ60 |
28631-68010 |
US $266.45 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1987 - 01.1990] FJ62,HJ6# |
83420-20020 |
from US $29.21 |
||
|
83520
|
83520
83520-60020 Gage Assy,oil Pressure Sender[08.1987 - 01.1990] HJ6# |
83520-60020 |
from US $69.72 |
||
|
84222
|
84222
84222-60021 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62,HJ6# ＮＯ．１ |
84222-60021 |
from US $68.32 |
||
|
84222
|
84222
84222-60030 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62,HJ6# ＮＯ．２ |
84222-60030 |
US $73.92 |
||
|
84222
|
84222
84222-60040
Switch, Transfer Indicator, No.1
[08.1987 - 01.1990] FJ62,HJ6#..CBU ＮＯ．３ |
84222-60040 |
— | ||
| replacement | |||||
|
84222
|
84222
84222-60041 Switch, Transfer Indicator, No.3[08.1987 - 01.1990] FJ62,HJ6#..CBU ＮＯ．３ |
84222-60041 |
from US $44.66 |
||
|
84222
|
84222
84222-60071 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62..EFI ＮＯ．４; FJ62,HJ6#..CBU..(CBR,DSL,TD) ＮＯ．４ |
84222-60071 |
US $58.82 |
||
|
84540
|
84540
84540-60020
Switch Assy, Neutral Start
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
84540-60020 |
— | ||
|
89428
|
89428
89428-36010
Switch, Temperature Detect, No.2
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
89428-36010 |
— | ||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1987 - 01.1990] HJ6# |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1987 - 01.1990] HJ6# |
89422-12010 |
US $67.54 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2860268010
|
2860268010
28602-68010
New Genuine Part
|
28602-68010 |
— | ||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271136070
|
8271136070
82711-36070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-36070 |
US $8.30 |
||
|
8271160010
|
8271160010
82711-60010
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60010 |
— | ||
|
8271160020
|
8271160020
82711-60020
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60020 |
— | ||
|
9011908320
|
9011908320
90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock) |
90119-08320 |
US $1.89 |
||
| replacement | |||||
|
9011908320
|
9011908320
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9017004002
|
9017004002
90170-04002 Nut, Connecting(For Glow Plug) |
90170-04002 |
US $1.25 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9018904024
|
9018904024
90189-04024 Grommet, Screw(For Glow Plug) |
90189-04024 |
from US $0.70 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
US $6.99 |
||
|
9040454025
|
9040454025
90404-54025 New Genuine Part |
90404-54025 |
US $7.72 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9046108312
|
9046108312
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9046108348
|
9046108348
90461-08348
New Genuine Part
|
90461-08348 |
— | ||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.72 |
||
|
9211260625
|
9211260625
92112-60625
New Genuine Part
|
92112-60625 |
— | ||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
