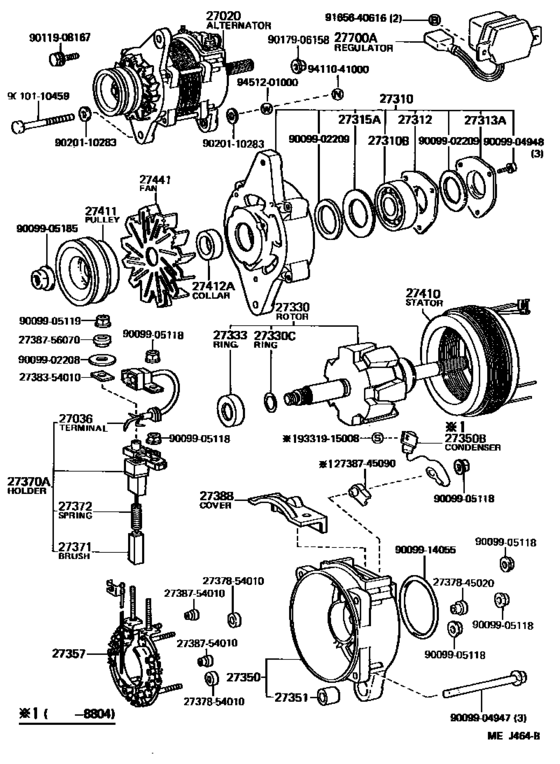

Alternator ([08.1987 - ] 24V 30A (8708- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-68130
Alternator Assy
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM 24V 30A |
27020-68130 |
— | ||
|
27020
|
27020
27020-68150 Alternator Assy[08.1987 - 01.1990] 2H..HJ60..ATM 24V 40A; 12HT,2H..HJ6#..MTM 24V 40A,COLD SPEC |
27020-68150 |
US $1,834.56 |
||
|
27036
|
27036
27036-54010
Terminal Sub-Assy, Lead Wire, Alternator
[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
27036-54010 |
— | ||
|
27036
|
27036
27036-54250
Terminal Sub-Assy, Lead Wire, Alternator
[04.1988 - 01.1990] 12HT,2H..HJ6#..MTM |
27036-54250 |
— | ||
|
27036
|
27036
27036-68150
Terminal Sub-Assy, Lead Wire, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27036-68150 |
— | ||
|
27310
|
27310
27310-56180
Frame Assy, Drive End, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27310-56180 |
— | ||
|
27310
|
27310
27310-68140
Frame Assy, Drive End, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27310-68140 |
— | ||
|
27310B
|
27310B
90099-10120
Bearing(For Alternator Drive End Frame)
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
90099-10120 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
90099-10137 |
US $12.58 |
||
|
27312
|
27312
27312-56070
Plate, Bearing Retainer, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27312-56070 |
— | ||
|
27312
|
27312
27312-57060
Plate, Bearing Retainer, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27312-57060 |
— | ||
|
27313A
|
27313A
27313-57060
Cover, Alternator Felt, Inner No.2
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27313-57060 |
— | ||
|
27315A
|
27315A
27315-56070
Cover, Alternator Felt, Inner No.1
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27315-56070 |
— | ||
|
27315A
|
27315A
27315-57060
Cover, Alternator Felt, Inner No.1
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27315-57060 |
— | ||
|
27330
|
27330
27330-56110
Rotor Assy, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27330-56110 |
— | ||
|
27330
|
27330
27330-68150
Rotor Assy, Alternator
[08.1987 - 11.1987] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27330-68150 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-68152
Rotor Assy, Alternator
[08.1987 - 11.1987] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27330-68152 |
— | ||
|
27330
|
27330
27330-68151
Rotor Assy, Alternator
[11.1987 - 02.1988] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27330-68151 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-68152
Rotor Assy, Alternator
[11.1987 - 02.1988] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27330-68152 |
— | ||
|
27330
|
27330
27330-68152
Rotor Assy, Alternator
[02.1988 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27330-68152 |
— | ||
|
27330C
|
27330C
90099-07103
Ring, Snap(For Alternator Rotor)
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
90099-07103 |
— | ||
|
27330C
|
27330C
90099-07108
Ring, Snap(For Alternator Rotor)
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
90099-07108 |
— | ||
|
27333
|
27333
27333-57060
Ring, Space(For Alternator Rotor)
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27333-57060 |
— | ||
|
27350
|
27350
27350-68040
Frame Assy, Rectifier End
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27350-68040 |
— | ||
|
27350
|
27350
27350-68140
Frame Assy, Rectifier End
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27350-68140 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035 Condenser, AlternatorRECTIFIER END [08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
90099-52035 |
US $13.11 |
||
|
27350B
|
27350B
90099-52082 Condenser, Alternator[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
90099-52082 |
US $10.19 |
||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
27351-56013 |
— | ||
|
27357
|
27357
27357-56310
Holder, Alternator, W/rectifier
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27357-56310 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-64060
Holder, Alternator, W/rectifier
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27357-64060 |
— | ||
|
27370A
|
27370A
27370-54010
Holder Assy, Alternator Brush
[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
27370-54010 |
— | ||
| replacement | |||||
|
27370A
|
27370A
27370-54250 Holder Assy, Alternator Brush[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
27370-54250 |
from US $22.71 |
||
|
27370A
|
27370A
27370-54250 Holder Assy, Alternator Brush[04.1988 - 01.1990] 12HT,2H..HJ6#..MTM |
27370-54250 |
from US $22.71 |
||
|
27371
|
27371
27371-56070
Brush, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6# |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[08.1987 - 01.1990] 12HT,2H..HJ6# |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[08.1987 - 01.1990] 12HT,2H..HJ6# |
27372-56070 |
— | ||
|
27388
|
27388
27388-54250
Cover, Alternator Brush
[04.1988 - 01.1990] 12HT,2H..HJ6#..MTM |
27388-54250 |
— | ||
| replacement | |||||
|
27388
|
27388
27388-54110
Cover, Alternator Brush
[04.1988 - 01.1990] 12HT,2H..HJ6#..MTM |
27388-54110 |
— | ||
|
27388
|
27388
27388-68040
Cover, Frame Brush
[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
27388-68040 |
— | ||
| replacement | |||||
|
27388
|
27388
27388-54110
Cover, Alternator Brush
[08.1987 - 04.1988] 12HT,2H..HJ6#..MTM |
27388-54110 |
— | ||
|
27388
|
27388
27388-68140
Cover, Frame Brush
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27388-68140 |
— | ||
| replacement | |||||
|
27388
|
27388
27388-56430
Cover, Frame Brush
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27388-56430 |
— | ||
|
27410
|
27410
27410-56310
Stator Assy, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27410-56310 |
— | ||
|
27410
|
27410
27410-68150
Stator Assy, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27410-68150 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-56430
Stator Assy, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27410-56430 |
— | ||
|
27411
|
27411
27411-68041
Pulley, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27411-68041 |
— | ||
|
27411
|
27411
27411-68140
Pulley, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27411-68140 |
— | ||
|
27412A
|
27412A
27412-54040
Ring, Space(For Alternator Rotor)
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27412-54040 |
— | ||
|
27412A
|
27412A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27412-57060 |
— | ||
|
27441
|
27441
27441-54070
Fan, Alternator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27441-54070 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27441-56090 |
— | ||
|
27700A
|
27700A
27700-57051
Regulator Assy, Generator
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM COLD SPEC |
27700-57051 |
— | ||
|
27700A
|
27700A
27700-57090
Regulator Assy, Generator
[08.1987 - 01.1990] 12HT,2H..HJ6#..MTM |
27700-57090 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009902209
|
9009902209
90099-02209
Felt(For Alternator Drive End Frame)
|
90099-02209 |
— | ||
|
9009904947
|
9009904947
90099-04947
New Genuine Part
|
90099-04947 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009914055
|
9009914055
90099-14055
Packing, Vacuum Pump
|
90099-14055 |
— | ||
|
9010110459
|
9010110459
90101-10459 New Genuine Part |
90101-10459 |
US $8.44 |
||
|
9011908167
|
9011908167
90119-08167 New Genuine Part |
90119-08167 |
US $1.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
from US $0.76 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
