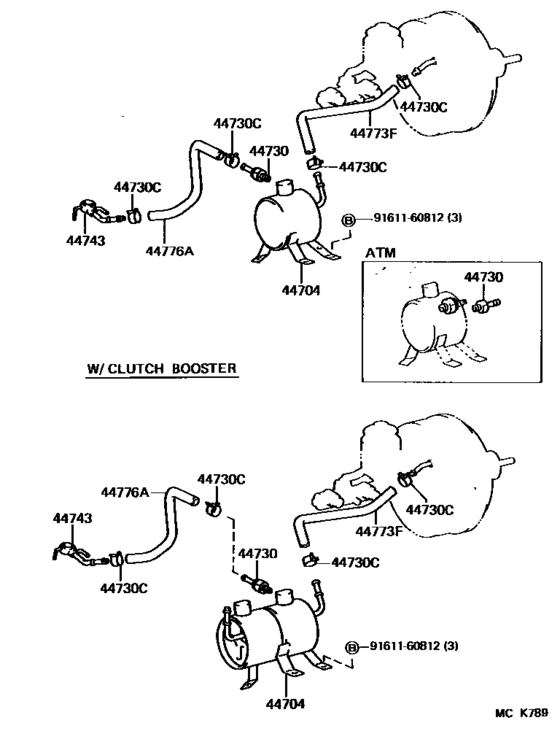

Brake Booster & Vacuum Tube ([08.1987 - ] (8708- )HJ6#..LHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-60130
Reservoir Sub-Assy, Vacuum
[08.1987 - 01.1990] HJ61 W(CLUTCH BOOSTER); HJ60..LHD..MTM..LUB W(CLUTCH BOOSTER); HJ60..SOB W(CLUTCH BOOSTER) |
44704-60130 |
— | ||
|
44704
|
44704
44704-60140 Reservoir Sub-Assy, VacuumVACUUM [08.1987 - 01.1990] HJ6#..LHD..MTM |
44704-60140 |
US $135.41 |
||
|
44730
|
44730
44730-60040 Booster Kit, Brake[08.1987 - 08.1988] HJ6#..MTM; HJ60..ATM VACUUM PUMP SIDE |
44730-60040 |
US $77.93 |
||
|
44730
|
44730
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1988 - 01.1990] HJ6#..MTM; HJ60..ATM VACUUM PUMP SIDE |
44730-60050 |
from US $22.85 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1987 - 01.1990] FJ62,HJ6#..LHD |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 01.1990] FJ62,HJ6#..LHD |
96133-41500 |
from US $2.26 |
||
|
44743
|
44743
90405-09115
Union(For Vacuum Pump)
[08.1987 - 01.1990] HJ61; HJ60..SOB;HJ60..RHD W(*ELC); HJ60..LHD..MTM..LUB W(*ELC) OR W(AIR CONDITIONER) |
90405-09115 |
— | ||
|
44773F
|
44773F
44771-60040 Hose(For Vacuum Reservoir To Brake Booster)UNION TO CHECK VALVE [08.1987 - 01.1990] HJ6#..LHD..MTM |
44771-60040 |
US $17.76 |
||
|
44776A
|
44776A
44771-60040 Hose(For Vacuum Reservoir To Brake Booster)UNION TO CHECK VALVE [08.1987 - 01.1990] HJ6#..LHD |
44771-60040 |
US $17.76 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
