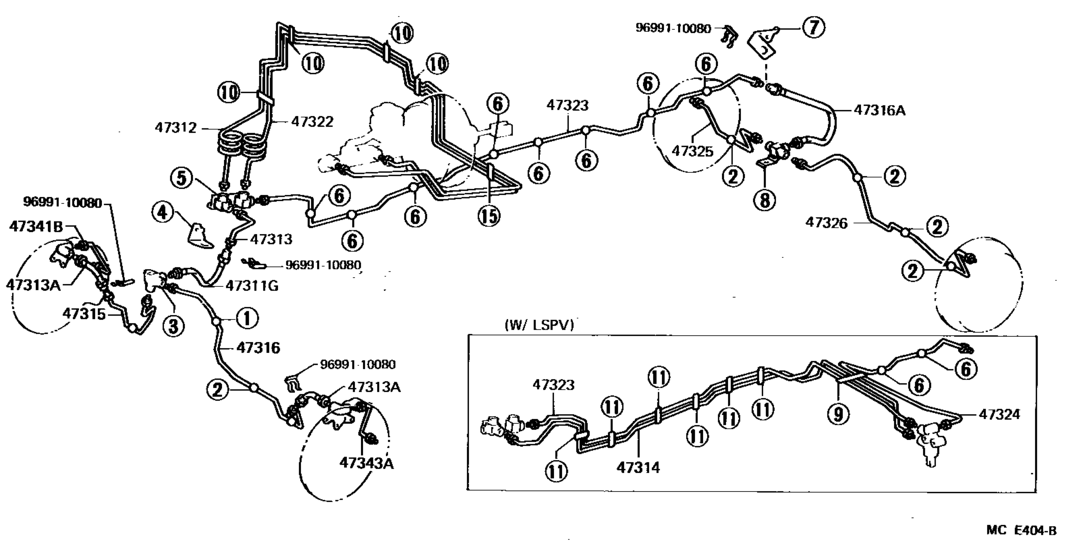

Brake Tube & Clamp ([08.1987 - ] (8708- )HJ6#..LHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311G
|
47311G
96940-33005 Hose, Clutch, No.1[08.1987 - 01.1990] FJ62,HJ6# |
96940-33005 |
US $17.81 |
||
|
47312
|
47312
47312-60202
Tube, Front Brake, No.2
[08.1987 - 01.1990] HJ6#..LHD |
47312-60202 |
— | ||
|
47313
|
47313
47313-60180
Tube, Front Brake, No.3
[08.1987 - 01.1990] FJ62,HJ6# |
47313-60180 |
— | ||
|
47313A
|
47313A
96940-39855 Hose, Flexible, No.1(For Front)[08.1987 - 01.1990] FJ62,HJ6# |
96940-39855 |
from US $16.49 |
||
|
47314
|
47314
47314-60180
Tube, Front Brake, No.4
[08.1987 - 01.1990] FJ62,HJ6# |
47314-60180 |
— | ||
|
47315
|
47315
47315-60340
Tube, Front Brake, No.4
[08.1987 - 01.1990] FJ62,HJ6# |
47315-60340 |
— | ||
|
47316
|
47316
47316-60310
Tube, Front Brake, No.5
[08.1987 - 01.1990] FJ62,HJ6# |
47316-60310 |
— | ||
|
47316A
|
47316A
96940-33805 Hose, Clutch, No.1[08.1987 - 01.1990] FJ62,HJ6# |
96940-33805 |
from US $22.18 |
||
|
47322
|
47322
47322-60102
Tube, Rear Brake, No.2
[08.1987 - 01.1990] HJ6#..LHD |
47322-60102 |
— | ||
|
47323
|
47323
47323-60041
Tube, Rear Brake, No.3
[08.1987 - 01.1990] FJ62,HJ6# |
47323-60041 |
— | ||
|
47324
|
47324
47324-60021
Tube, Rear Brake, No.4
[08.1987 - 01.1990] FJ62,HJ6# |
47324-60021 |
— | ||
|
47325
|
47325
47325-60100
Tube, Rear Brake, No.5
[08.1987 - 01.1990] FJ62,HJ6# |
47325-60100 |
— | ||
|
47326
|
47326
47326-60110
Tube, Rear Brake, No.6
[08.1987 - 01.1990] FJ62,HJ6# |
47326-60110 |
— | ||
|
47341B
|
47341B
47341-60031 Tube, Wheel Cylinder, Front Rh No.1[08.1987 - 01.1990] FJ62,HJ6# |
47341-60031 |
from US $4.66 |
||
|
47343A
|
47343A
47343-60021 Tube, Wheel Cylinder, Front Lh No.1[08.1987 - 01.1990] FJ62,HJ6# |
47343-60021 |
from US $4.64 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
