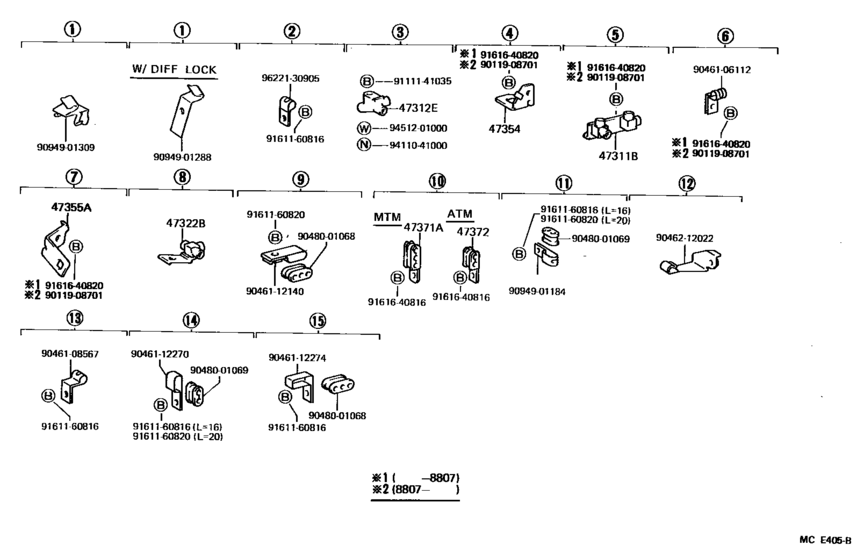

Brake Tube & Clamp ([08.1987 - ] (8708- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311B
|
47311B
90413-10214 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [08.1987 - 01.1990] FJ62,HJ6# |
90413-10214 |
US $16.02 |
||
|
47312E
|
47312E
90413-10042
Union(For Front Brake Tube)
[08.1987 - 01.1990] FJ62,HJ6# |
90413-10042 |
— | ||
|
47322B
|
47322B
90413-10106
Way(For Rear Brake Tube)
[08.1987 - 01.1990] FJ62,HJ6# |
90413-10106 |
— | ||
|
47354
|
47354
47354-60030
Bracket, Front Flexible Hose
[08.1987 - 01.1990] FJ62,HJ6# |
47354-60030 |
— | ||
|
47355A
|
47355A
47355-60030
Bracket, Flexible Hose(For Rear)
[08.1987 - 01.1990] FJ62,HJ6# |
47355-60030 |
— | ||
|
47371A
|
47371A
47371-35020
Clamp, Brake Tube, No.1
[08.1987 - 01.1990] FJ62,HJ61;HJ60..LHD..MTM |
47371-35020 |
— | ||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046108567
|
9046108567
90461-08567 New Genuine Part |
90461-08567 |
US $1.43 |
||
|
9046112140
|
9046112140
90461-12140
New Genuine Part
|
90461-12140 |
— | ||
|
9046112270
|
9046112270
90461-12270 New Genuine Part |
90461-12270 |
US $3.64 |
||
|
9046112274
|
9046112274
90461-12274
New Genuine Part
|
90461-12274 |
— | ||
|
9046212022
|
9046212022
90462-12022
New Genuine Part
|
90462-12022 |
— | ||
|
9048001068
|
9048001068
90480-01068
New Genuine Part
|
90480-01068 |
— | ||
|
9048001069
|
9048001069
90480-01069 Grommet(For Brake Tube) |
90480-01069 |
US $4.30 |
||
|
9094901184
|
9094901184
90949-01184 New Genuine Part |
90949-01184 |
US $5.38 |
||
|
9094901288
|
9094901288
90949-01288 New Genuine Part |
90949-01288 |
US $3.20 |
||
|
9094901309
|
9094901309
90949-01309 New Genuine Part |
90949-01309 |
US $3.20 |
||
|
9111141035
|
9111141035
91111-41035 Bolt(For Clutch Pedal Stopper) |
91111-41035 |
US $0.79 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9622130905
|
9622130905
96221-30905 CLAMP |
96221-30905 |
from US $6.63 |
||
