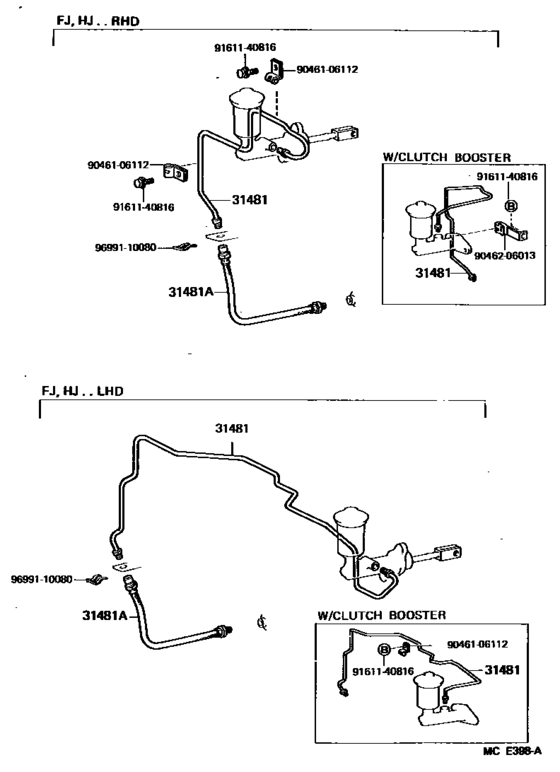

Clutch Pedal & Flexible Hose ([08.1987 - ] (8708- )MTM) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-60301
Tube, Clutch Master Cylinder To Flexible Hose
[08.1987 - 01.1990] HJ6#..LHD..MTM |
31481-60301 |
— | ||
|
31481
|
31481
31481-60311 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1987 - 01.1990] HJ6#..LHD..MTM W(CLUTCH BOOSTER) |
31481-60311 |
US $17.18 |
||
|
31481A
|
31481A
96812-50320 Hose, Clutch, No.1[08.1987 - 01.1990] HJ6#..MTM |
96812-50320 |
US $29.90 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046206013
|
9046206013
90462-06013
New Genuine Part
|
90462-06013 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
