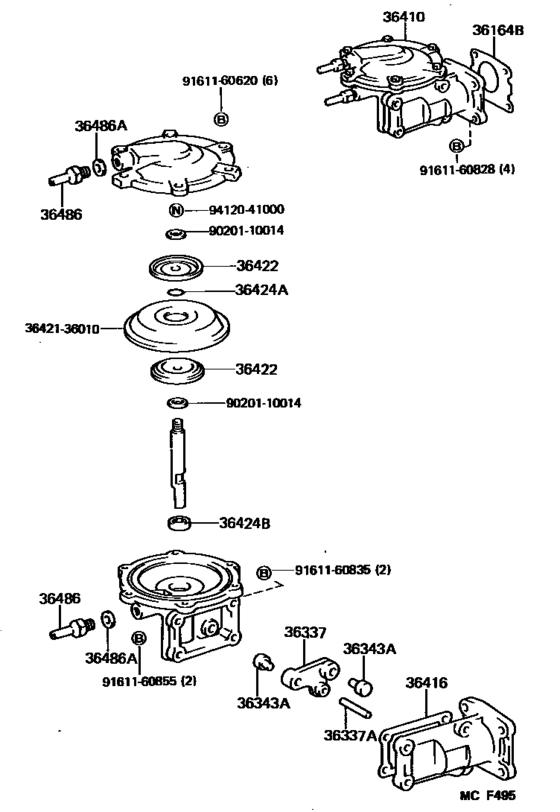

Diaphragm Cylinder & Transfer Vacuum Actuator ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36164B
|
36164B
36164-60040 Gasket, Transfer Shift Shaft Guide[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36164-60040 |
US $3.76 |
||
|
36337
|
36337
36337-60080 Lever, Front Drive Shift Link[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36337-60080 |
US $16.58 |
||
|
36337A
|
36337A
90250-08024 Pin, Straight (For Front Drive Shift Link Lever)[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
90250-08024 |
US $1.75 |
||
|
36343A
|
36343A
36343-60010 Shoe, Front Drive Shift Link Lever (For Direct Type)[08.1987 - 01.1990] FJ62,HJ60..ATM OD=18; HJ60..RHD OD=18; HJ60..STD OD=18; HJ61..GX;HJ60..LHD..MTM..SRF..LUB OD=18; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX OD=18 |
36343-60010 |
US $8.04 |
||
|
36343A
|
36343A
36343-60040 Shoe, Shift Outer Lever[08.1987 - 01.1990] FJ62,HJ60..ATM OD=12; HJ60..RHD OD=12; HJ60..STD OD=12; HJ61..GX;HJ60..LHD..MTM..SRF..LUB OD=12; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX OD=12 |
36343-60040 |
US $5.69 |
||
|
36410
|
36410
36410-60030 Cylinder Assy, Diaphragm[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36410-60030 |
US $520.67 |
||
|
36416
|
36416
36416-36010 Gasket, Diaphragm Cylinder[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36416-36010 |
US $3.40 |
||
|
36422
|
36422
36422-36010 Plate, Transfer Diaphragm[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36422-36010 |
US $5.07 |
||
|
36424A
|
36424A
96711-19010 Ring, O(For Oil Level Gage Guide)[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
96711-19010 |
from US $2.20 |
||
|
36424B
|
36424B
90311-13066 Seal, Type T, Oil (For Diaphragm Push Rod)[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
90311-13066 |
US $5.20 |
||
|
36486
|
36486
36486-60010 Tube, Suction[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
36486-60010 |
US $9.50 |
||
|
36486A
|
36486A
90430-10022 Gasket, No.2(For Transaxle Housing & Case)[08.1987 - 01.1990] FJ62,HJ60..ATM; HJ60..RHD; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX |
90430-10022 |
US $1.79 |
||
|
3642136010
|
3642136010
36421-36010 Diaphragm (For Diaphragm Cylinder) |
36421-36010 |
US $19.49 |
||
|
9020110014
|
9020110014
90201-10014 Plate, Spring Set |
90201-10014 |
US $2.18 |
||
| replacement | |||||
|
9020110014
|
9020110014
94612-11000 Plate, Spring Set |
94612-11000 |
US $3.05 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161160855
|
9161160855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.79 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
