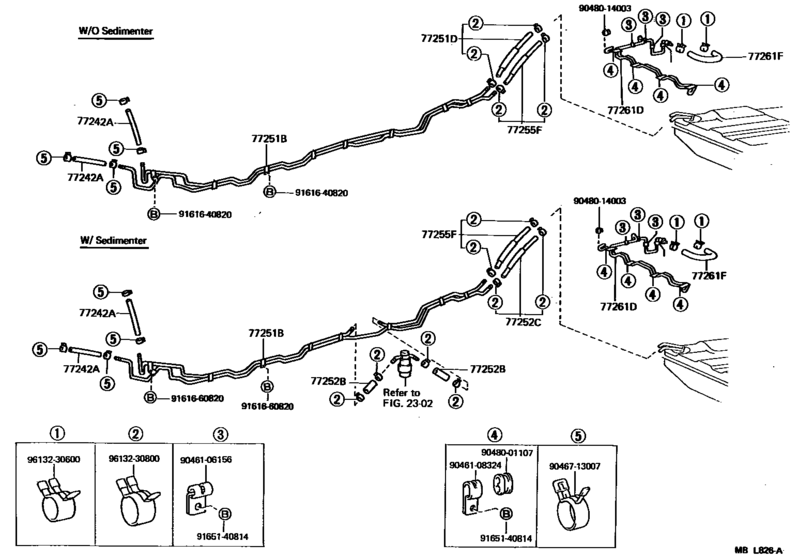

Fuel Tank & Tube ([08.1987 - ] (8708- )HJ61) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77242A
|
77242A
23271-68010
Hose, Fuel, No.1 (For Main Tube, No.2)
[08.1987 - 01.1990] HJ61 W/PROTECTOR |
23271-68010 |
— | ||
|
77242A
|
77242A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1987 - 01.1990] HJ60 *H,L=300; HJ61 *H,L=300 |
95333-08030 |
US $11.83 |
||
|
77251B
|
77251B
77205-60280
Tube Sub-Assy, Fuel Main
[08.1987 - 01.1990] HJ61 |
77205-60280 |
— | ||
|
77251B
|
77251B
77205-60290
Tube Sub-Assy, Fuel Main
[08.1987 - 01.1990] HJ61 W(SEDIMENTER) |
77205-60290 |
— | ||
|
77251D
|
77251D
77260-60060
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1987 - 01.1990] HJ61 |
77260-60060 |
— | ||
|
77252B
|
77252B
95333-08020
Hose, Lpg Injector
[08.1987 - 01.1990] HJ6# L=200,ID=8 |
95333-08020 |
— | ||
| replacement | |||||
|
77252B
|
77252B
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1987 - 01.1990] HJ6# L=200,ID=8 |
95337-08020 |
from US $5.56 |
||
|
77252C
|
77252C
77260-60060
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1987 - 01.1990] HJ61 |
77260-60060 |
— | ||
|
77255F
|
77255F
77250-60050
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1987 - 01.1990] HJ61 |
77250-60050 |
— | ||
|
77261D
|
77261D
77244-60140
Tube, Fuel Emission, No.3
[08.1987 - 01.1990] HJ6# |
77244-60140 |
— | ||
|
77261F
|
77261F
95333-06030
Hose, Fuel
[08.1987 - 01.1990] HJ6# *H,L=300 |
95333-06030 |
— | ||
| replacement | |||||
|
77261F
|
77261F
95338-06030 HOSE, FUEL[08.1987 - 01.1990] HJ6# *H,L=300 |
95338-06030 |
from US $10.39 |
||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9048001107
|
9048001107
90480-01107 Grommet(For Brake Tube) |
90480-01107 |
US $1.97 |
||
|
9048014003
|
9048014003
90480-14003 New Genuine Part |
90480-14003 |
US $1.22 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
