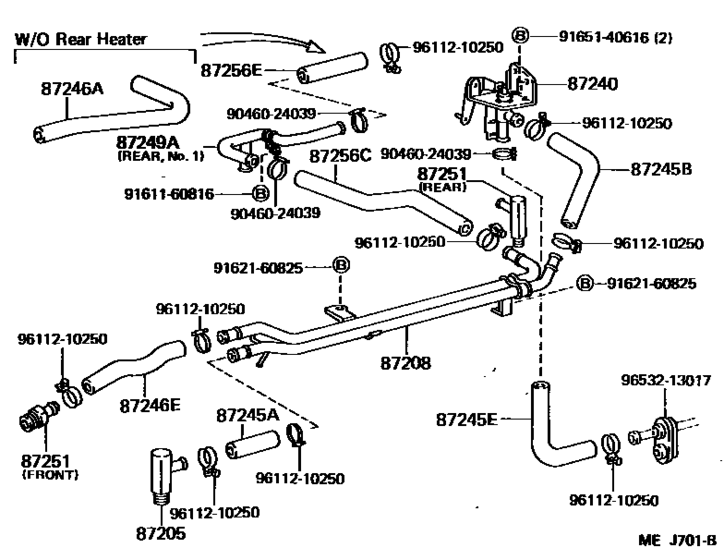

Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )HJ61) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87205
|
87205
87251-30200 Union(For Water By-Pass Hose)[08.1987 - 01.1990] HJ61 |
87251-30200 |
from US $5.24 |
||
|
87208
|
87208
87208-90A13 Pipe Sub-Assy, Heater Water[08.1987 - 01.1990] HJ61 |
87208-90A13 |
US $74.08 |
||
|
87240
|
87240
87240-90A00 Valve Assy, Heater Water[08.1987 - 01.1990] FJ62,HJ6# |
87240-90A00 |
US $54.43 |
||
|
87245A
|
87245A
87245-90A36
Hose, Heater Water, Outlet E
[08.1987 - 01.1990] HJ61 |
87245-90A36 |
— | ||
|
87245B
|
87245B
87245-90A37
Hose, Heater Water, Inlet B
[08.1987 - 01.1990] HJ61 |
87245-90A37 |
— | ||
|
87245E
|
87245E
87245-90A00
Hose, Heater Water, Inlet E
[08.1987 - 01.1990] FJ62,HJ6# |
87245-90A00 |
— | ||
|
87246A
|
87246A
87245-90A38
Hose, Heater Water, Outlet A
[08.1987 - 01.1990] HJ61 |
87245-90A38 |
— | ||
|
87246E
|
87246E
87245-90A48
Hose, Heater Water, Inlet A
[08.1987 - 01.1990] HJ61 |
87245-90A48 |
— | ||
| replacement | |||||
|
87246E
|
87246E
87245-14500 Hose, Heater Water, Inlet A[08.1987 - 01.1990] HJ61 |
87245-14500 |
US $18.82 |
||
|
87249A
|
87249A
87248-90A24
Pipe, Heater Water Outlet, A
[08.1987 - 01.1990] HJ60..ATM REAR NO.2; HJ6#..LHD..MTM..LUB..GX REAR NO.2; HJ6#..STD,VX REAR NO.2; FJ62;HJ60..RHD;HJ6#..SOB..GX REAR NO.2 |
87248-90A24 |
— | ||
|
87249A
|
87249A
87248-90A25
Pipe, Heater Water Outlet, A
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX REAR NO.1; HJ6#..STD,VX REAR NO.1; FJ62;HJ60..RHD;HJ6#..SOB..GX REAR NO.1 |
87248-90A25 |
— | ||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[08.1987 - 01.1990] HJ6# FRONT |
87251-30200 |
from US $5.24 |
||
|
87251
|
87251
87251-90A05
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[08.1987 - 01.1990] HJ60..ATM REAR; HJ6#..LHD..MTM..LUB..GX REAR; HJ60..RHD;HJ6#..SOB..GX REAR; HJ6#..STD,VX REAR |
87251-90A05 |
— | ||
| replacement | |||||
|
87251
|
87251
87251-90A04
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[08.1987 - 01.1990] HJ60..ATM REAR; HJ6#..LHD..MTM..LUB..GX REAR; HJ60..RHD;HJ6#..SOB..GX REAR; HJ6#..STD,VX REAR |
87251-90A04 |
— | ||
|
87256C
|
87256C
87245-90A44
Hose, Rear Heater Water Outlet, C
[08.1987 - 01.1990] HJ61..VX; HJ61..LUB..GX; HJ61..SOB |
87245-90A44 |
— | ||
|
87256E
|
87256E
99556-30100 Hose, Water Inlet[08.1987 - 01.1990] HJ61..VX *H,L=60; HJ61..LUB..GX *H,L=60; FJ62;HJ61..SOB *H,L=60 |
99556-30100 |
from US $2.96 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.22 |
||
|
9653213017
|
9653213017
96532-13017 Grommet, Heater Hose |
96532-13017 |
from US $1.75 |
||
