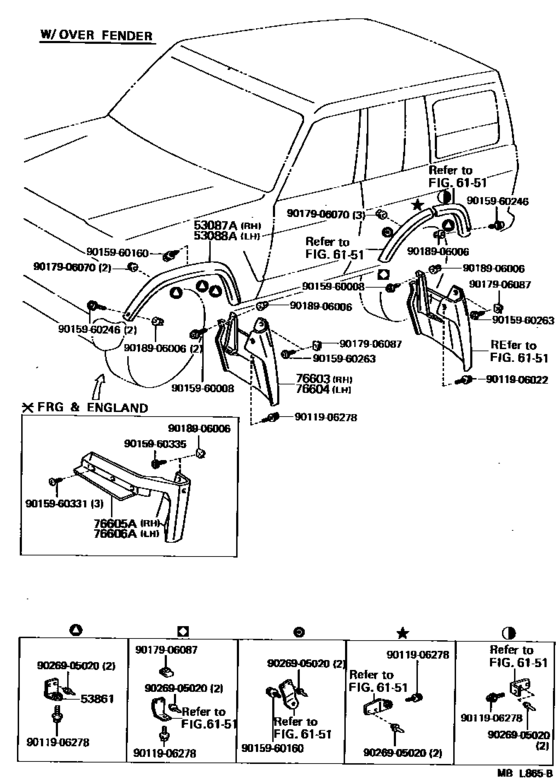

Hood & Front Fender ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53087A
|
53087A
53087-90A00
Extension Sub-Assy, Front Wheel Opening, Rh
[08.1987 - 01.1990] FJ62; HJ6#..LHD..(GX,VX) |
53087-90A00 |
— | ||
|
53088A
|
53088A
53088-90A00
Extension Sub-Assy, Front Wheel Opening, Lh
[08.1987 - 01.1990] FJ62; HJ6#..LHD..(GX,VX) |
53088-90A00 |
— | ||
|
53861
|
53861
53861-90A00
Bracket, Front Wheel Opening, No.1
[08.1987 - 01.1990] FJ62; HJ6#..LHD..(GX,VX) |
53861-90A00 |
— | ||
|
76603
|
76603
76603-69015
Mudguard Sub-Assy, Front Fender, Rh
[08.1987 - 01.1990] HJ60..STD; HJ60..LHD..MTM..GX; HJ61;HJ60..ATM;HJ60..RHD |
76603-69015 |
— | ||
|
76603
|
76603
76603-90A01 Mudguard Sub-Assy, Front Fender, Rh[08.1987 - 01.1990] FJ62; HJ6#..LHD..(GX,VX) W(OVER FENDER) |
76603-90A01 |
from US $80.09 |
||
|
76604
|
76604
76604-69015
Mudguard Sub-Assy, Front Fender, Lh
[08.1987 - 01.1990] HJ60..STD; HJ60..LHD..MTM..GX; HJ61;HJ60..ATM;HJ60..RHD |
76604-69015 |
— | ||
|
76604
|
76604
76604-90A01 Mudguard Sub-Assy, Front Fender, Lh[08.1987 - 01.1990] FJ62; HJ6#..LHD..(GX,VX) W(OVER FENDER) |
76604-90A01 |
from US $80.09 |
||
|
76605A
|
76605A
76605-90A01 Mudguard Sub-Assy, Front Forward, RhFRONT FORWARD, RH [08.1987 - 01.1990] HJ60..RHD; HJ61..VX |
76605-90A01 |
US $158.70 |
||
|
76606A
|
76606A
76606-90A01 Mudguard Sub-Assy, Front Forward, LhFRONT FORWARD, LH [08.1987 - 01.1990] HJ60..RHD; HJ61..VX |
76606-90A01 |
US $158.70 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906278
|
9011906278
90119-06278 BOLT |
90119-06278 |
from US $0.89 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9015960160
|
9015960160
90159-60160
New Genuine Part
|
90159-60160 |
— | ||
|
9015960246
|
9015960246
90159-60246
New Genuine Part
|
90159-60246 |
— | ||
|
9015960263
|
9015960263
90159-60263
New Genuine Part
|
90159-60263 |
— | ||
|
9015960331
|
9015960331
90159-60331 New Genuine Part |
90159-60331 |
US $1.75 |
||
|
9015960335
|
9015960335
90159-60335 New Genuine Part |
90159-60335 |
US $1.75 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906087
|
9017906087
90179-06087
New Genuine Part
|
90179-06087 |
— | ||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9026905020
|
9026905020
90269-05020 PIN |
90269-05020 |
from US $1.08 |
||
|
9826905020
|
9826905020
98269-05020
New Genuine Part
|
98269-05020 |
— | ||
