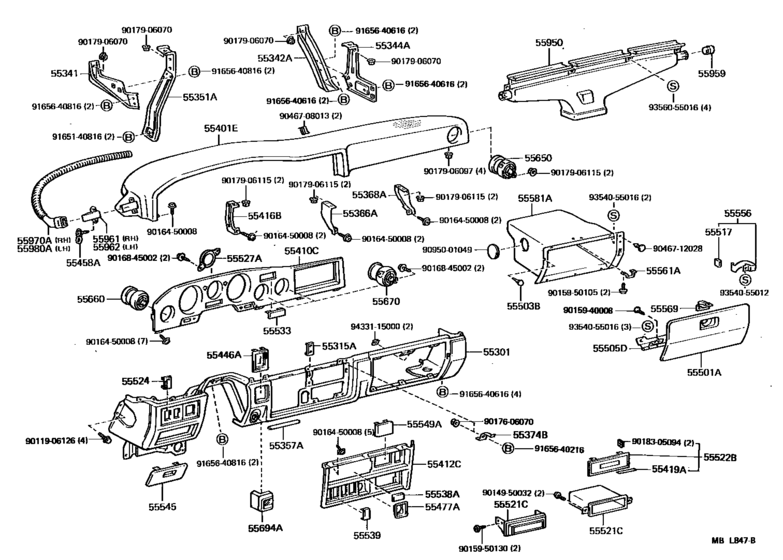

Instrument Panel & Glove Compartment ([08.1987 - ] (8708- )LHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-90A77-03 Panel Sub-Assy, InstrumentINSTRUMENT [08.1987 - 01.1990] FJ62,HJ6#..LHD..(GX,VX) SHADOW GRAY,TRIM1# |
55301-90A77-03 |
US $647.92 |
||
|
55301
|
55301
55301-90A77-05 Panel Sub-Assy, InstrumentINSTRUMENT [08.1987 - 01.1990] FJ62,HJ6#..LHD SEPIA BROWN,TRIM4# |
55301-90A77-05 |
US $647.92 |
||
|
55315A
|
55315A
55315-90A00
Spacer, Instrument Panel, No.1
[08.1987 - 01.1990] FJ62,HJ6# |
55315-90A00 |
— | ||
|
55341
|
55341
55341-90A03
Brace, Instrument Panel, No.1
[08.1987 - 01.1990] HJ6#..LHD |
55341-90A03 |
— | ||
|
55342A
|
55342A
55342-90A01 Brace, Instrument Panel, No.2INSTRUMENT PANEL TO COWL, NO.2 [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55342-90A01 |
US $52.71 |
||
|
55344A
|
55344A
55344-90A01 Brace, Instrument Panel, No.3INSTRUMENT PANEL TO COWL, NO.3 [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55344-90A01 |
US $59.84 |
||
|
55351A
|
55351A
55351-90A03 Brace, Instrument Panel To FloorINSTRUMENT PANEL TO FLOOR [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55351-90A03 |
US $88.82 |
||
|
55357A
|
55357A
55357-90A00 Protector, Edge, No.1[08.1987 - 01.1990] FJ62,HJ6# |
55357-90A00 |
US $4.02 |
||
|
55366A
|
55366A
55366-90A02 Bracket, Radio Mounting, No.1[08.1987 - 01.1990] FJ62,HJ6# |
55366-90A02 |
US $58.53 |
||
|
55368A
|
55368A
55368-90A03 Bracket, Radio Mounting, No.2[08.1987 - 01.1990] FJ62,HJ6# |
55368-90A03 |
US $59.26 |
||
|
55374B
|
55374B
55374-90A01 Bracket, Instrument PanelINSTRUMENT PANEL [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55374-90A01 |
US $3.64 |
||
|
55401E
|
55401E
55401-90A05-03 Pad Sub-Assy, Instrument Panel Safety[08.1987 - 10.1987] HJ6#..LHD..MTM..(GX,VX) SHADOW GRAY,TRIM1# |
55401-90A05-03 |
from US $617.34 |
||
|
55401E
|
55401E
55401-90A05-05
Pad Sub-Assy, Instrument Panel Safety
[08.1987 - 10.1987] HJ6#..LHD..MTM SEPIA BROWN,TRIM4# |
55401-90A05-05 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-90A05-03 Pad Sub-Assy, Instrument Panel Safety[08.1987 - 10.1987] HJ6#..LHD..MTM SEPIA BROWN,TRIM4# |
55401-90A05-03 |
from US $617.34 |
||
|
55401E
|
55401E
55401-90A07-03
Pad Sub-Assy, Instrument Panel Safety
[08.1987 - 10.1987] HJ60..ATM SHADOW GRAY,TRIM1#; HJ6#..LHD..MTM..(GX,VX) COLD SPEC,SHADOW GRAY,TRIM1# |
55401-90A07-03 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-90A05-03 Pad Sub-Assy, Instrument Panel Safety[08.1987 - 10.1987] HJ60..ATM SHADOW GRAY,TRIM1#; HJ6#..LHD..MTM..(GX,VX) COLD SPEC,SHADOW GRAY,TRIM1# |
55401-90A05-03 |
from US $617.34 |
||
|
55401E
|
55401E
55401-90A07-05
Pad Sub-Assy, Instrument Panel Safety
[08.1987 - 10.1987] HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..LHD..MTM COLD SPEC,SEPIA BROWN,TRIM4# |
55401-90A07-05 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-90A05-03 Pad Sub-Assy, Instrument Panel Safety[08.1987 - 10.1987] HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..LHD..MTM COLD SPEC,SEPIA BROWN,TRIM4# |
55401-90A05-03 |
from US $617.34 |
||
|
55410C
|
55410C
55410-90G28
Panel Assy, Instrument Cluster Finish
[08.1987 - 01.1990] FJ62,HJ6#..LHD W(RADIO) |
55410-90G28 |
— | ||
|
55410C
|
55410C
55410-90G29
Panel Assy, Instrument Cluster Finish
[08.1987 - 01.1990] FJ62,HJ6#..LHD |
55410-90G29 |
— | ||
|
55412C
|
55412C
55412-90A10-03
Panel, Instrument Cluster Finish, Center No.1
[08.1987 - 01.1990] FJ62,HJ6#..LHD..(GX,VX) SHADOW GRAY,TRIM1# |
55412-90A10-03 |
— | ||
|
55412C
|
55412C
55412-90A10-05
Panel, Instrument Cluster Finish, Center No.1
[08.1987 - 01.1990] FJ62,HJ6#..LHD SEPIA BROWN,TRIM4# |
55412-90A10-05 |
— | ||
|
55416B
|
55416B
55416-90A01 Bracket, Instrument Pad, No.2INSTRUMENT PAD, NO.2 [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55416-90A01 |
US $48.63 |
||
|
55419A
|
55419A
55419-14020 Cushion, Instrument Cluster Finish Panel[08.1987 - 01.1990] FJ62,HJ6#..LHD |
55419-14020 |
US $0.73 |
||
|
55446A
|
55446A
55446-90A01-06
Base, Switch Hole, No.1
[08.1987 - 01.1990] HJ6#..MTM SEPIA BROWN,TRIM4# |
55446-90A01-06 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-90A01-13
Spacer, Instrument Panel Safety Pad, Set
[08.1987 - 01.1990] HJ6#..MTM SEPIA BROWN,TRIM4# |
55446-90A01-13 |
— | ||
|
55446A
|
55446A
55446-90A01-13
Spacer, Instrument Panel Safety Pad, Set
[08.1987 - 01.1990] HJ6#..MTM..(GX,VX) SHADOW GRAY,TRIM1# |
55446-90A01-13 |
— | ||
|
55446A
|
55446A
55446-90A02-06
Base, Switch Hole, No.1
[08.1987 - 01.1990] FJ62,HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..MTM W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4# |
55446-90A02-06 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-90A02-13
Base, Switch Hole, No.1
[08.1987 - 01.1990] FJ62,HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..MTM W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4# |
55446-90A02-13 |
— | ||
|
55446A
|
55446A
55446-90A02-13
Base, Switch Hole, No.1
[08.1987 - 01.1990] FJ62,HJ60..ATM SHADOW GRAY,TRIM1#; HJ6#..MTM..(GX,VX) W(ONE TOUCH 2-4 SELECTOR),SHADOW GRAY,TRIM1# |
55446-90A02-13 |
— | ||
|
55458A
|
55458A
55458-90A00
Cap, Instrument Panel Safety Pad
[08.1987 - 01.1990] FJ62,HJ6# |
55458-90A00 |
— | ||
|
55477A
|
55477A
55477-90A02
Bezel, Cigarette Lighter Hole
[08.1987 - 01.1990] HJ60..STD; HJ6#..GX,VX |
55477-90A02 |
— | ||
|
55501A
|
55501A
55501-90A00-06
Door Sub-Assy, Glove Compartment
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
55501-90A00-06 |
— | ||
|
55501A
|
55501A
55501-90A00-23
Door Sub-Assy, Glove Compartment
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SHADOW GRAY,TRIM1# |
55501-90A00-23 |
— | ||
|
55503B
|
55503B
90541-03015 Cushion, Instrument Panel Box[08.1987 - 01.1990] FJ62,HJ6# |
90541-03015 |
from US $1.52 |
||
|
55505D
|
55505D
55505-90A00
Hinge Sub-Assy, Glove Compartment Door
[08.1987 - 01.1990] FJ62,HJ6# |
55505-90A00 |
— | ||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[08.1987 - 01.1990] FJ62,HJ6# |
55517-14010 |
— | ||
|
55521C
|
55521C
55521-14050-01
Cover, Stereo Opening
[08.1987 - 01.1990] FJ62,HJ6#..LHD BLACK,TRIM1#,4# |
55521-14050-01 |
— | ||
|
55521C
|
55521C
55521-20110 Cover, Stereo OpeningSTEREO OPENING [08.1987 - 01.1990] FJ62,HJ6#..LHD |
55521-20110 |
US $20.68 |
||
|
55521C
|
55521C
55521-20120
Cover, Stereo Opening
[08.1987 - 01.1990] HJ60..RHD; FJ62,HJ6#..LHD W(RADIO) |
55521-20120 |
— | ||
|
55522B
|
55522B
55522-20060
Cover, Radio Tuner Opening
[08.1987 - 01.1990] FJ62,HJ6#..LHD |
55522-20060 |
— | ||
|
55522B
|
55522B
55522-32010
Cover, Radio Tuner Opening
[08.1987 - 01.1990] FJ62,HJ6#..LHD W/O(RADIO) |
55522-32010 |
— | ||
| replacement | |||||
|
55522B
|
55522B
55522-20070 Cover, Radio Tuner Opening[08.1987 - 01.1990] FJ62,HJ6#..LHD W/O(RADIO) |
55522-20070 |
US $28.39 |
||
|
55524
|
55524
55524-90A00
Cover, Switch Bace Hole
[08.1987 - 01.1990] FJ62,HJ6#..LHD |
55524-90A00 |
— | ||
|
55538A
|
55538A
55538-22010
Cover, Cooler Switch Hole
[08.1987 - 01.1990] FJ62,HJ6# |
55538-22010 |
— | ||
|
55539
|
55539
55539-32010-01
Cover, Rear Window Wiper Switch Hole
[08.1987 - 12.1987] HJ6# BLACK,TRIM1#,4# |
55539-32010-01 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[08.1987 - 12.1987] HJ6# BLACK,TRIM1#,4# |
55539-32010-C0 |
from US $3.12 |
||
|
55545
|
55545
55545-90A01-03 Cover, Fuse Box Opening (Gray color)[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SHADOW GRAY,TRIM1# |
55545-90A01-03 |
from US $34.61 |
||
|
55545
|
55545
55545-90A01-06 Cover, Fuse Box Opening[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
55545-90A01-06 |
US $34.61 |
||
| replacement | |||||
|
55545
|
55545
55545-90A01-03 Cover, Fuse Box Opening (Gray color)[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
55545-90A01-03 |
from US $34.61 |
||
|
55549A
|
55549A
55549-90A00
Cover, Rear Cooler Switch Hole
[08.1987 - 01.1990] FJ62,HJ6# |
55549-90A00 |
— | ||
|
55556
|
55556
55556-90A01
Arm, Glove Compartment Door Check
[08.1987 - 01.1990] FJ62,HJ6#..LHD |
55556-90A01 |
— | ||
|
55561A
|
55561A
55561-90A00
Striker, Glove Compartment Door Lock
[08.1987 - 01.1990] FJ62,HJ6# |
55561-90A00 |
— | ||
|
55569
|
55569
55569-90A00-06 Cover, Glove Compartment Door Lock[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
55569-90A00-06 |
US $9.17 |
||
| replacement | |||||
|
55569
|
55569
55569-90A00-23 Cover, Glove Compartment Door Lock[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
55569-90A00-23 |
US $9.17 |
||
|
55569
|
55569
55569-90A00-23 Cover, Glove Compartment Door Lock[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SHADOW GRAY,TRIM1# |
55569-90A00-23 |
US $9.17 |
||
|
55581A
|
55581A
55581-90A05
Compartment Sub-Assy, Glove
[08.1987 - 01.1990] HJ6#..LHD |
55581-90A05 |
— | ||
|
55650
|
55650
55650-90A02
Register Assy, Instrument Panel, No.1
[08.1987 - 01.1990] FJ62,HJ6# |
55650-90A02 |
— | ||
|
55660
|
55660
55660-90A00
Register Assy, Instrument Panel, No.2
[08.1987 - 01.1990] FJ62,HJ6# |
55660-90A00 |
— | ||
|
55670
|
55670
55670-90A02
Register Assy, Instrument Panel, No.3
[08.1987 - 01.1990] FJ62,HJ6# |
55670-90A02 |
— | ||
|
55694A
|
55694A
55694-90A00-06 Protector, Control Knob, No.2CONTROL KNOB, NO.2 [08.1987 - 01.1990] HJ61..VX SEPIA BROWN,TRIM4# |
55694-90A00-06 |
US $74.26 |
||
| replacement | |||||
|
55694A
|
55694A
55694-90A00-23 Protector, Control Knob, No.2CONTROL KNOB, NO.2 [08.1987 - 01.1990] HJ61..VX SEPIA BROWN,TRIM4# |
55694-90A00-23 |
US $74.26 |
||
|
55694A
|
55694A
55694-90A00-23 Protector, Control Knob, No.2CONTROL KNOB, NO.2 [08.1987 - 01.1990] HJ61..VX SHADOW GRAY,TRIM1# |
55694-90A00-23 |
US $74.26 |
||
|
55950
|
55950
55950-90A01 Nozzle Assy, DefrosterDEFROSTER [08.1987 - 05.1988] HJ6#..LHD |
55950-90A01 |
US $59.55 |
||
| replacement | |||||
|
55950
|
55950
55950-90A03 Nozzle Assy, DefrosterDEFROSTER [08.1987 - 05.1988] HJ6#..LHD |
55950-90A03 |
US $59.40 |
||
|
55950
|
55950
55950-90A03 Nozzle Assy, DefrosterDEFROSTER [05.1988 - 01.1990] FJ62,HJ6#..LHD |
55950-90A03 |
US $59.40 |
||
|
55959
|
55959
55959-14010 Cover, Defroster Nozzle Opening, No.1[08.1987 - 01.1990] FJ62,HJ61;HJ60..MTM |
55959-14010 |
US $2.62 |
||
|
55961
|
55961
55961-90A00-03
Nozzle, Side Defroster, No.1
[08.1987 - 01.1990] FJ62 GRAY,TRIM1#; HJ60..ATM GRAY,TRIM1#; HJ6#..MTM..(GX,VX) GRAY,TRIM1# |
55961-90A00-03 |
— | ||
|
55961
|
55961
55961-90A00-16
Nozzle, Side Defroster, No.1
[08.1987 - 01.1990] FJ62 SEPIA BROWN,TRIM4#; HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..MTM SEPIA BROWN,TRIM4# |
55961-90A00-16 |
— | ||
|
55962
|
55962
55961-90A00-03
Nozzle, Side Defroster, No.1
[08.1987 - 01.1990] FJ62 GRAY,TRIM1#; HJ60..ATM GRAY,TRIM1#; HJ6#..MTM..(GX,VX) GRAY,TRIM1# |
55961-90A00-03 |
— | ||
|
55962
|
55962
55961-90A00-16
Nozzle, Side Defroster, No.1
[08.1987 - 01.1990] FJ62 SEPIA BROWN,TRIM4#; HJ60..ATM SEPIA BROWN,TRIM4#; HJ6#..MTM SEPIA BROWN,TRIM4# |
55961-90A00-16 |
— | ||
|
55970A
|
55970A
55970-90A00
Duct Assy, Side Defroster, Rh
[08.1987 - 01.1990] FJ62; HJ60..ATM; HJ6#..MTM |
55970-90A00 |
— | ||
|
55980A
|
55980A
55980-90A00 Nozzle, Side Defroster[08.1987 - 01.1990] FJ62; HJ60..ATM; HJ6#..MTM |
55980-90A00 |
US $37.13 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.16 |
||
|
9015940008
|
9015940008
90159-40008
New Genuine Part
|
90159-40008 |
— | ||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9015950130
|
9015950130
90159-50130 Cap, Instrument Panel Safety Pad |
90159-50130 |
US $1.75 |
||
| replacement | |||||
|
9015950130
|
9015950130
55458-90A00
Cap, Instrument Panel Safety Pad
|
55458-90A00 |
— | ||
|
9016450008
|
9016450008
90164-50008 SCREW |
90164-50008 |
from US $0.76 |
||
|
9016845002
|
9016845002
90168-45002 New Genuine Part |
90168-45002 |
US $1.65 |
||
|
9017606070
|
9017606070
90176-06070
New Genuine Part
|
90176-06070 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9046708013
|
9046708013
90467-08013
New Genuine Part
|
90467-08013 |
— | ||
|
9046712028
|
9046712028
90467-12028 New Genuine Part |
90467-12028 |
US $2.18 |
||
|
9095001049
|
9095001049
90950-01049
New Genuine Part
|
90950-01049 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165640216
|
9165640216
91656-40216
New Genuine Part
|
91656-40216 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9165640816
|
9165640816
91656-40816 New Genuine Part |
91656-40816 |
US $1.89 |
||
| replacement | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.65 |
||
|
9433115000
|
9433115000
94331-15000 New Genuine Part |
94331-15000 |
US $2.48 |
||
