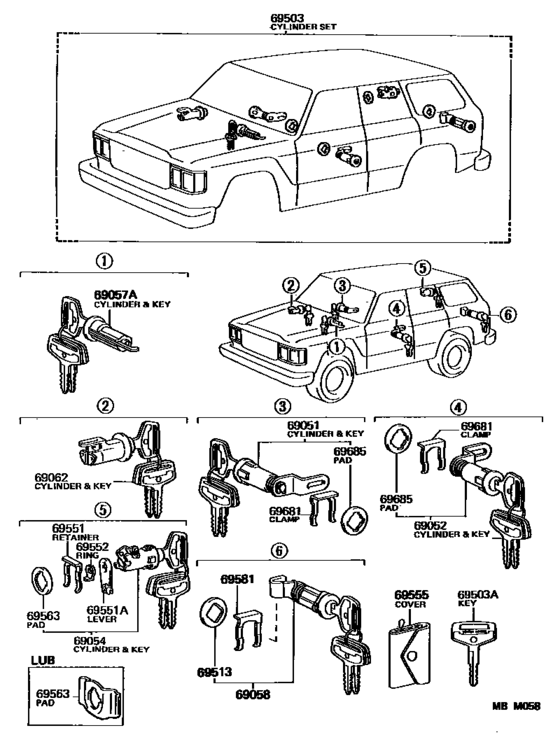

Lock Cylinder Set ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-90A05 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [08.1987 - 01.1990] FJ62,HJ6# |
69051-90A05 |
US $49.50 |
||
| replacement | |||||
|
69051
|
69051
69051-90A06
Cylinder & Key Set, Door Lock, Rh
[08.1987 - 01.1990] FJ62,HJ6# |
69051-90A06 |
— | ||
|
69052
|
69052
69052-90A05 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.1987 - 01.1990] FJ62,HJ6# |
69052-90A05 |
US $49.50 |
||
| replacement | |||||
|
69052
|
69052
69052-90A06
Cylinder & Key Set, Door Lock, Lh
[08.1987 - 01.1990] FJ62,HJ6# |
69052-90A06 |
— | ||
|
69054
|
69054
69055-90A02
Cylinder & Key Set, Back Door Lock
[08.1987 - 01.1990] FJ62,HJ6#..LUB |
69055-90A02 |
— | ||
| replacement | |||||
|
69054
|
69054
69055-90A06
Cylinder & Key Set, Back Door Lock
[08.1987 - 01.1990] FJ62,HJ6#..LUB |
69055-90A06 |
— | ||
|
69054
|
69054
69055-90A07
Cylinder & Key Set, Back Door Lock
[08.1987 - 01.1990] HJ6#..LUB W(MAGNET LOCK) |
69055-90A07 |
— | ||
| replacement | |||||
|
69054
|
69054
69055-90A11
Cylinder & Key Set, Back Door Lock
[08.1987 - 01.1990] HJ6#..LUB W(MAGNET LOCK) |
69055-90A11 |
— | ||
|
69057A
|
69057A
69057-95704
Cylinder & Key Set, Ignition Switch Lock
[08.1987 - 01.1990] HJ6# |
69057-95704 |
— | ||
| replacement | |||||
|
69057A
|
69057A
69057-90A05
Cylinder & Key Set, Ignition Switch Lock
[08.1987 - 01.1990] HJ6# |
69057-90A05 |
— | ||
|
69058
|
69058
69058-90A05 Cylinder & Key Set, Fuel Inlet LockFUEL FILLER LID [08.1987 - 01.1990] HJ6#;FJ62..SOB |
69058-90A05 |
US $48.19 |
||
| replacement | |||||
|
69058
|
69058
69058-90A02
Cylinder & Key Set, Fuel Tank Filler
[08.1987 - 01.1990] HJ6#;FJ62..SOB |
69058-90A02 |
— | ||
|
69062
|
69062
69056-90A00 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.1987 - 01.1990] HJ6#;FJ62..SOB |
69056-90A00 |
US $69.89 |
||
| replacement | |||||
|
69062
|
69062
69056-90A01 Cylinder & Key Set, Glove Compartment Lock[08.1987 - 01.1990] HJ6#;FJ62..SOB |
69056-90A01 |
US $67.70 |
||
|
69503
|
69503
69005-90A48
Cylinder Set, Lock
[08.1987 - 01.1990] HJ6#..LUB |
69005-90A48 |
— | ||
|
69503
|
69503
69005-90A52
Cylinder Set, Lock
[08.1987 - 01.1990] HJ6#..LUB W(POWER WINDOW) |
69005-90A52 |
— | ||
|
69503A
|
69503A
90999-00066
Key, Blank
[08.1987 - 01.1990] FJ62,HJ6# MASTER KEY |
90999-00066 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00085 Key, Blank[08.1987 - 01.1990] FJ62,HJ6# MASTER KEY |
90999-00085 |
from US $7.75 |
||
|
69513
|
69513
69513-14010
Pad, Fuel Filler Lid Cylinder
[08.1987 - 01.1990] FJ62,HJ6# |
69513-14010 |
— | ||
|
69551
|
69551
69551-13020
Retainer, Back Door Lock Cylinder
[08.1987 - 01.1990] FJ62,HJ6#..LUB |
69551-13020 |
— | ||
|
69551A
|
69551A
69551-90A00
Lever, Back Door Key Cylinder
[08.1987 - 01.1990] FJ62..LUB; HJ6#..LUB |
69551-90A00 |
— | ||
|
69552
|
69552
69552-95A00
Ring, Back Door Key Cylinder Lever
[08.1987 - 01.1990] FJ62..LUB; HJ6#..LUB |
69552-95A00 |
— | ||
|
69555
|
69555
69555-20010 Cover Sub-Assy, Key[08.1987 - 01.1990] FJ62,HJ6# |
69555-20010 |
from US $13.15 |
||
|
69563
|
69563
69563-90A00
Pad, Back Door Lock Cylinder
[08.1987 - 01.1990] FJ62,HJ6#..LUB |
69563-90A00 |
— | ||
|
69581
|
69581
69581-14010
Retainer, Fuel Filler Lid Cylinder
[08.1987 - 01.1990] FJ62,HJ6# |
69581-14010 |
— | ||
|
69681
|
69681
69681-20040 Retainer, Back Door Lock Cylinder[08.1987 - 01.1990] FJ62,HJ6#..LUB |
69681-20040 |
from US $1.84 |
||
|
69685
|
69685
69513-90A00
Pad, Back Door Lock Cylinder
[08.1987 - 01.1990] FJ62,HJ6# |
69513-90A00 |
— | ||
| replacement | |||||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[08.1987 - 01.1990] FJ62,HJ6# |
69513-32010 |
from US $1.37 |
||
