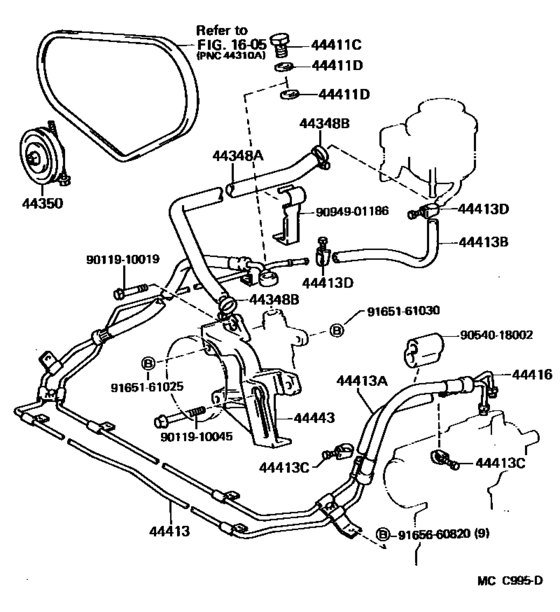

Power Steering Tube ([08.1987 - ] (8708- )HJ6#..LHD) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-60070
Hose, Oil Reservoir To Pump, No.1
[08.1987 - 01.1990] HJ6# |
44348-60070 |
— | ||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1987 - 01.1990] HJ6# |
90460-26001 |
US $10.57 |
||
|
44350
|
44350
16630-47020
Pulley Assy, Power Steering Idle
[08.1987 - 01.1990] HJ6# |
16630-47020 |
— | ||
|
44411C
|
44411C
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1987 - 01.1990] HJ6# |
90401-16008 |
from US $10.93 |
||
|
44411D
|
44411D
90430-16242 Gasket, W/head Straight Screw Plug[08.1987 - 01.1990] HJ6# |
90430-16242 |
from US $0.80 |
||
|
44413
|
44413
44410-60130 Tube, Pressure Feed, No.1PRESSURE FEED, NO.1 [08.1987 - 01.1990] HJ6#..LHD |
44410-60130 |
US $524.16 |
||
|
44413A
|
44413A
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1987 - 01.1990] HJ6#..LHD |
90445-18089 |
from US $8.97 |
||
|
44413B
|
44413B
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1987 - 01.1990] HJ6#..LHD |
90445-18089 |
from US $8.97 |
||
|
44413C
|
44413C
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 01.1990] HJ6#..LHD |
90460-01001 |
US $10.39 |
||
|
44413D
|
44413D
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 01.1990] HJ6#..LHD |
90460-01001 |
US $10.39 |
||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[08.1987 - 01.1990] FJ62,HJ6# |
44416-60061 |
— | ||
|
44443
|
44443
44443-60071
Bracket, Pump
[08.1987 - 01.1990] HJ6# |
44443-60071 |
— | ||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $5.02 |
||
|
9011910045
|
9011910045
90119-10045
New Genuine Part
|
90119-10045 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9094901186
|
9094901186
90949-01186
New Genuine Part
|
90949-01186 |
— | ||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.39 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
