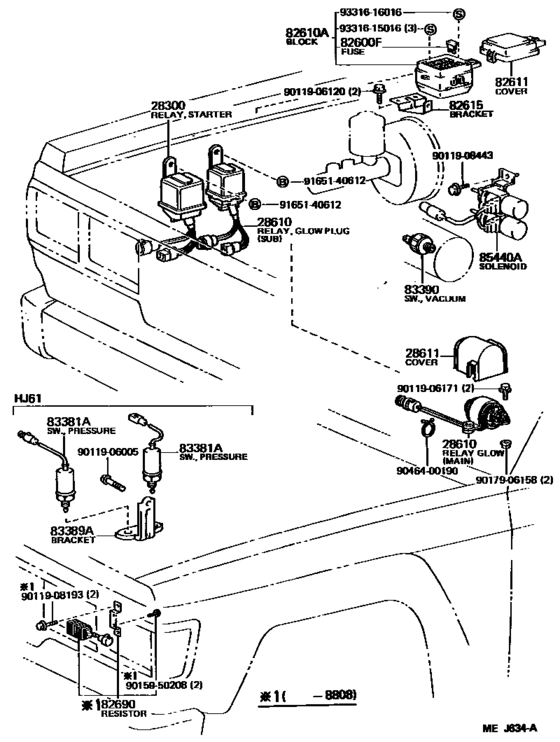

Switch & Relay & Computer ([08.1987 - ] (8708- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-56020 Relay Assy, Starter[08.1987 - 01.1990] 12HT,2H..HJ6# |
28300-56020 |
US $142.68 |
||
|
28610
|
28610
28610-57090 Relay Assy, Glow Plug[08.1987 - 01.1990] 12HT..HJ61 MAIN |
28610-57090 |
from US $152.78 |
||
|
28611
|
28611
28611-55010 Cover, Glow Plug Relay[08.1987 - 01.1990] 12HT..HJ61 |
28611-55010 |
from US $4.02 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 01.1990] HJ6# 10A |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 01.1990] FJ62,HJ6# 15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 01.1990] FJ62,HJ6# 20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 01.1990] HJ6# 7.5A |
90982-09005 |
from US $0.97 |
||
|
82610A
|
82610A
82610-90K03
Block Assy, Fuse
[08.1987 - 01.1990] HJ6# |
82610-90K03 |
— | ||
|
82611
|
82611
82611-90K01
Cover, Fuse Block
[08.1987 - 01.1990] HJ6# |
82611-90K01 |
— | ||
|
82615
|
82615
82615-90A02
Bracket, Fuse
[08.1987 - 01.1990] HJ6# |
82615-90A02 |
— | ||
|
83381A
|
83381A
83381-30010
Switch Assy, Presure
[08.1987 - 01.1990] HJ61 P=100 |
83381-30010 |
— | ||
|
83381A
|
83381A
83381-36010
Switch Assy, Presure
[08.1987 - 01.1990] HJ61 P=800 |
83381-36010 |
— | ||
| replacement | |||||
|
83381A
|
83381A
83381-36030 Switch, Pressure[08.1987 - 01.1990] HJ61 P=800 |
83381-36030 |
US $126.67 |
||
|
83389A
|
83389A
83389-60040 Bracket, Pressure Switch[08.1987 - 01.1990] HJ61 |
83389-60040 |
US $12.81 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[08.1987 - 01.1990] HJ6# |
83390-30020 |
— | ||
|
85440A
|
85440A
85440-60130
Solenoid Assy, Front Drive
[08.1987 - 01.1990] HJ60..ATM; HJ6#..MTM |
85440-60130 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011908193
|
9011908193
90119-08193
Bolt (For Oil Cooler Tube)
|
90119-08193 |
— | ||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9015950208
|
9015950208
90159-50208
New Genuine Part
|
90159-50208 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9046400190
|
9046400190
90464-00190 CLAMP |
90464-00190 |
US $1.40 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331615016
|
9331615016
93316-15016 New Genuine Part |
93316-15016 |
US $0.61 |
||
|
9331616016
|
9331616016
93316-16016
New Genuine Part
|
93316-16016 |
— | ||
| replacement | |||||
|
9331616016
|
9331616016
90159-60286 SCREW |
90159-60286 |
from US $0.95 |
||
