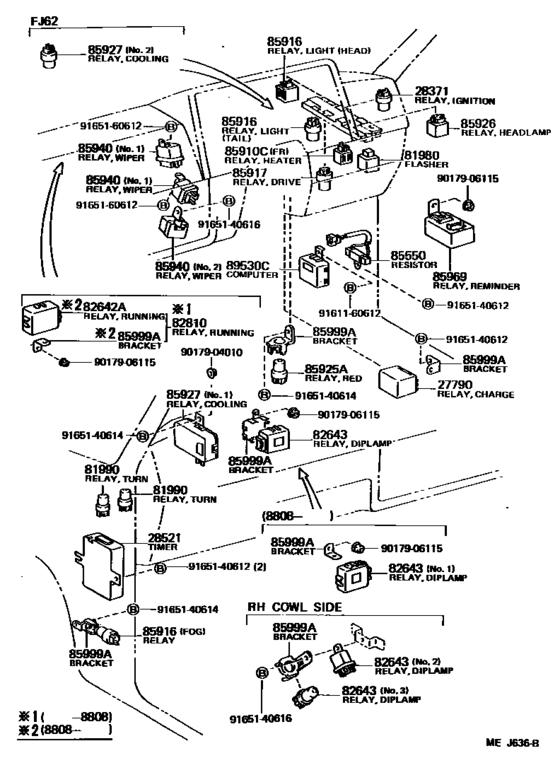

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-57010
Relay Assy, Charge Lamp
[08.1987 - 01.1990] 2H..HJ60..ATM; 12HT,2H..HJ6#..MTM |
27790-57010 |
— | ||
|
28371
|
28371
90987-02005 Relay, Ignition, No.1[08.1987 - 01.1990] 12HT,2H..HJ6# |
90987-02005 |
from US $28.80 |
||
|
28521
|
28521
28521-68060
Timer, Preheating
[08.1987 - 01.1990] 12HT..HJ61 |
28521-68060 |
— | ||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[08.1987 - 01.1990] HJ6# |
81980-36060 |
US $129.56 |
||
|
81990
|
81990
90987-02005 Relay, Ignition, No.1[08.1987 - 01.1990] HJ6# |
90987-02005 |
from US $28.80 |
||
|
85550
|
85550
85550-90A00 Resistor Assy, Pilot Lamp[08.1987 - 01.1990] HJ6# |
85550-90A00 |
US $37.27 |
||
|
85910C
|
85910C
85913-90K00 Relay Assy (For Heater Blower Motor)[08.1987 - 01.1990] HJ6# FRONT |
85913-90K00 |
from US $71.40 |
||
|
85910C
|
85910C
85980-90A00
Relay Assy (For Heater Blower Motor)
[08.1987 - 08.1988] HJ61..VX;HJ60..RHD;HJ6#..SOB REAR; HJ6#..LHD..MTM..LUB..GX W(FRONT BENCH SEAT),REAR |
85980-90A00 |
— | ||
| replacement | |||||
|
85910C
|
85910C
85980-25030 Relay Assy, Door Control[08.1987 - 08.1988] HJ61..VX;HJ60..RHD;HJ6#..SOB REAR; HJ6#..LHD..MTM..LUB..GX W(FRONT BENCH SEAT),REAR |
85980-25030 |
US $126.67 |
||
|
85916
|
85916
90987-01004 Relay, Heater Pump[08.1987 - 01.1990] HJ6# TAIL |
90987-01004 |
US $35.78 |
||
|
85916
|
85916
90987-02005 Relay, Ignition, No.1[08.1987 - 01.1990] HJ6# REAR FOG LAMP |
90987-02005 |
from US $28.80 |
||
|
85916
|
85916
90987-02007 Relay, Light Control[08.1987 - 01.1990] HJ6# HEAD |
90987-02007 |
from US $34.64 |
||
|
85917
|
85917
90987-03002 Relay, Turbo Indicator[08.1987 - 01.1990] HJ60..ATM; HJ6#..MTM |
90987-03002 |
US $22.85 |
||
|
85925A
|
85925A
90987-03002 Relay, Turbo Indicator[08.1987 - 01.1990] HJ6#..LHD |
90987-03002 |
US $22.85 |
||
|
85926
|
85926
85926-90K00 Relay, Headlamp Dimmer[08.1987 - 01.1990] HJ6# |
85926-90K00 |
US $55.56 |
||
|
85940
|
85940
85940-26010 Relay Assy (For Heater Blower Motor)[08.1987 - 01.1990] HJ6# NO.1 |
85940-26010 |
US $50.67 |
||
|
85940
|
85940
85940-90A07
Relay Assy, Windshield Wiper
[08.1987 - 01.1990] HJ6#..LHD NO.2 |
85940-90A07 |
— | ||
|
85940
|
85940
85940-90A11 Relay Assy, Windshield Wiper[08.1987 - 01.1990] HJ6#..LUB NO.3 |
85940-90A11 |
US $187.82 |
||
|
85969
|
85969
85969-90A00
Relay, Light Reminder
[08.1987 - 01.1990] HJ6# |
85969-90A00 |
— | ||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[08.1987 - 01.1990] FJ62,HJ6# REAR FOG LAMP RELAY; FJ62,HJ6#..LHD RED INDICATOR RELAY |
85999-12050 |
— | ||
|
85999A
|
85999A
85999-89101 Bracket Sub-Assy, Flasher[08.1987 - 01.1990] HJ6#..MTM CHAGE LAMP RELAY; FJ62,HJ60..ATM CHAGE LAMP RELAY |
85999-89101 |
US $2.77 |
||
|
9017904010
|
9017904010
90179-04010
New Genuine Part
|
90179-04010 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
