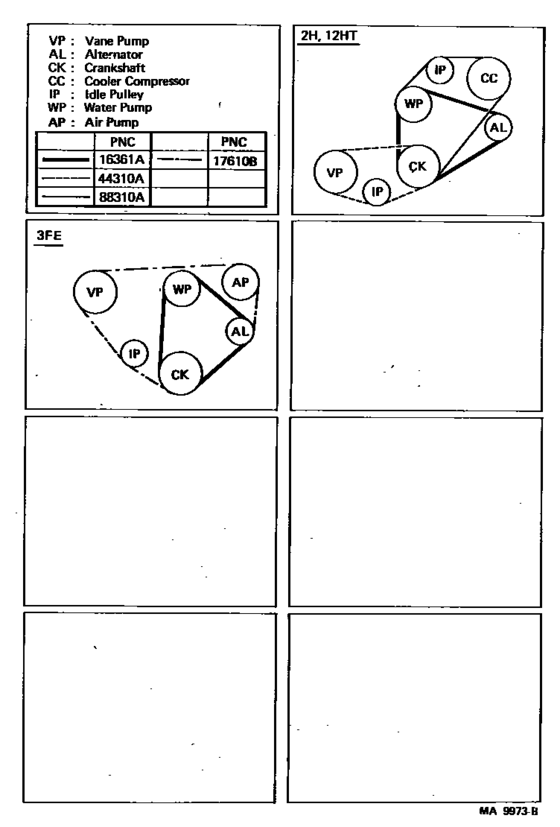

V-Belt ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361A
|
16361A
90916-02243 Belt, V(For Fan & Alternator)[01.1989 - 01.1990] 2H..HJ60..ATM; 2H..HJ60..MTM;12HT..HJ61..VX;12HT..HJ61..SOB COLD SPEC; 12HT..HJ61..LUB..GX COLD SPEC OR AIR CONDITIONER |
90916-02243 |
US $37.56 |
||
|
16361A
|
16361A
90916-02251
Belt, V(For Fan & Alternator)
[02.1989 - 01.1990] 12HT..HJ61 |
90916-02251 |
— | ||
|
16361A
|
16361A
99343-11090
Belt, V(For Fan & Alternator)
[08.1987 - 02.1989] 12HT..HJ61 |
99343-11090 |
— | ||
|
16361A
|
16361A
99343-11095 Belt, V(For Fan & Alternator)[08.1987 - 01.1989] 2H..HJ60..ATM; 2H..HJ60..MTM;12HT..HJ61..VX;12HT..HJ61..SOB COLD SPEC; 12HT..HJ61..LUB..GX COLD SPEC OR AIR CONDITIONER |
99343-11095 |
US $17.65 |
||
|
44310A
|
44310A
90916-02153
Belt, V(For Vane Pump)
[08.1987 - 01.1990] HJ6# |
90916-02153 |
— |
