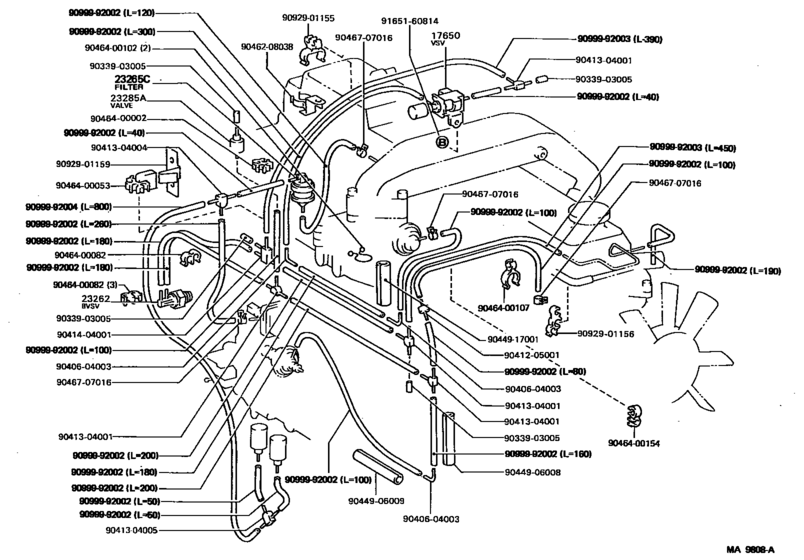

Vacuum Piping ([08.1987 - ] (8708- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
90910-12013 Valve Assy, Vacuum Switching[08.1987 - 01.1990] 12HT..HJ61 |
90910-12013 |
US $85.28 |
||
|
23262
|
23262
90925-05052
Valve, Bimetal Vacuum Switching, No.1
[08.1987 - 01.1990] 12HT..HJ61 |
90925-05052 |
— | ||
|
23265C
|
23265C
90917-11009
Filter, Gas, No.1
[08.1987 - 01.1990] 12HT..HJ61 |
90917-11009 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1987 - 01.1990] 3FE..FJ62; 12HT..HJ61 |
90917-10049 |
from US $5.87 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9040604003
|
9040604003
90406-04003
New Genuine Part
|
90406-04003 |
— | ||
|
9041205001
|
9041205001
90412-05001 Way, 2 |
90412-05001 |
US $2.61 |
||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $5.56 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9041404001
|
9041404001
90414-04001 Joint, No.1 (For Idle Up Divice) |
90414-04001 |
US $5.59 |
||
|
9044906008
|
9044906008
90449-06008
New Genuine Part
|
90449-06008 |
— | ||
|
9044906009
|
9044906009
90449-06009
New Genuine Part
|
90449-06009 |
— | ||
|
9044917001
|
9044917001
90449-17001
New Genuine Part
|
90449-17001 |
— | ||
|
9046208038
|
9046208038
90462-08038
New Genuine Part
|
90462-08038 |
— | ||
|
9046400002
|
9046400002
90464-00002
Clamp, Resistive Cord, No.1
|
90464-00002 |
— | ||
|
9046400053
|
9046400053
90464-00053
Clamp, Resistive Cord, No.1
|
90464-00053 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400107
|
9046400107
90464-00107
New Genuine Part
|
90464-00107 |
— | ||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046707016
|
9046707016
90467-07016
Clip, Hose Fuel(For Injection Pump)
|
90467-07016 |
— | ||
| replacement | |||||
|
9046707016
|
9046707016
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $2.15 |
||
|
9092901155
|
9092901155
90929-01155
New Genuine Part
|
90929-01155 |
— | ||
|
9092901156
|
9092901156
90929-01156
New Genuine Part
|
90929-01156 |
— | ||
|
9092901159
|
9092901159
90929-01159
New Genuine Part
|
90929-01159 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9099992004
|
9099992004
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
