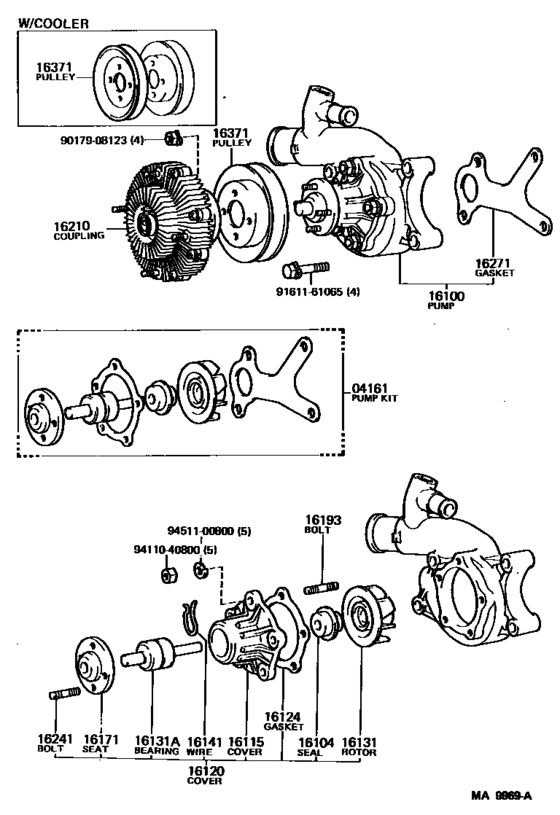

Water Pump ([08.1987 - ] (8708- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-68010
Pump Kit, Water
[08.1987 - 01.1990] 12HT,2H..HJ6# |
04161-68010 |
— | ||
|
16100
|
16100
16100-69035
Pump Assy, Engine Water
[08.1987 - 01.1990] 12HT,2H..HJ6# |
16100-69035 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-69037 Pump Assy, Engine Water[08.1987 - 01.1990] 12HT,2H..HJ6# |
16100-69037 |
US $297.60 |
||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
16104-15020 |
US $21.26 |
||
|
16115
|
16115
16115-68010 Cover, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
16115-68010 |
US $37.86 |
||
|
16120
|
16120
16120-69015 Cover Assy, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
16120-69015 |
US $198.40 |
||
|
16124
|
16124
16129-68010
Gasket, Water Pump Cover
[08.1987 - 01.1990] 12HT,2H..HJ6# |
16129-68010 |
— | ||
| replacement | |||||
|
16124
|
16124
16129-68011
Gasket, Water Pump Cover
[08.1987 - 01.1990] 12HT,2H..HJ6# |
16129-68011 |
— | ||
|
16131
|
16131
16131-68010 Rotor, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
16131-68010 |
US $12.81 |
||
|
16131A
|
16131A
90369-35016 Bearing, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
90369-35016 |
US $43.68 |
||
| replacement | |||||
|
16131A
|
16131A
90029-36842 Bearing, Water Pump[08.1987 - 01.1990] 12HT,2H..HJ6# |
90029-36842 |
US $55.47 |
||
|
16141
|
16141
16141-68010 Wire, Water Pump Bearing Retaining[08.1987 - 01.1990] 12HT,2H..HJ6# |
16141-68010 |
US $2.48 |
||
|
16171
|
16171
16171-41170 Seat, Water Pump Pulley[08.1987 - 01.1990] 12HT,2H..HJ6# |
16171-41170 |
US $14.85 |
||
|
16193
|
16193
16193-47020
Bolt, Stud(For Water Pump Cover)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
16193-47020 |
— | ||
|
16210
|
16210
16210-68021
Coupling Assy, Fluid
[08.1987 - 01.1990] 12HT,2H..HJ6# |
16210-68021 |
— | ||
|
16241
|
16241
90116-08112 Bolt, Stud(For Water Pump Coupling)[08.1987 - 01.1990] 12HT,2H..HJ6# |
90116-08112 |
from US $0.82 |
||
|
16271
|
16271
16271-68010
Gasket, Water Pump
[08.1987 - 08.1989] 12HT,2H..HJ6# |
16271-68010 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-68020 Gasket, Water PumpWATER PUMP [08.1987 - 08.1989] 12HT,2H..HJ6# |
16271-68020 |
US $17.92 |
||
|
16371
|
16371
16371-68040
Pulley, Fan
[08.1987 - 01.1990] 12HT..HJ61;2H..HJ60..ATM; 2H..HJ60..MTM COLD SPEC |
16371-68040 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9161161065
|
9161161065
91611-61065
Bolt(For Transaxle & Engine Setting)
|
91611-61065 |
— | ||
| replacement | |||||
|
9161161065
|
9161161065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
