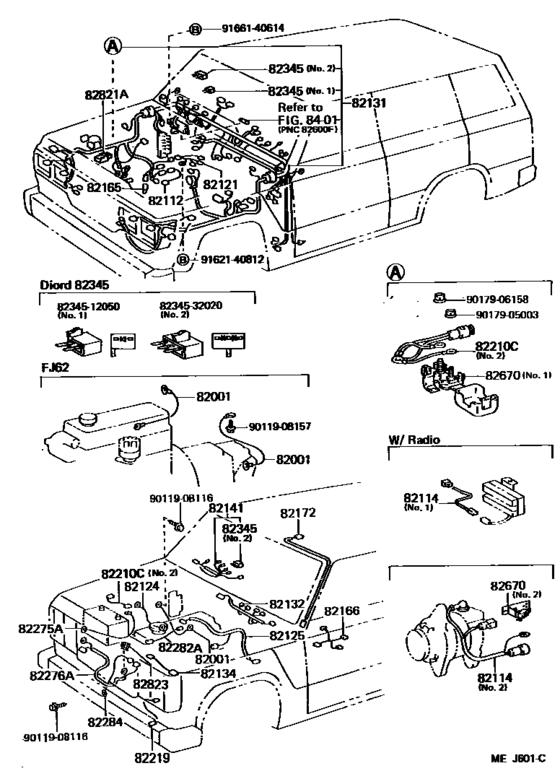

Wiring & Clamp ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- VX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07003
Cable, Bond, No.1
[08.1987 - 01.1990] FJ62,HJ6# FRAME-ENGINE |
90980-07003 |
— | ||
|
82114
|
82114
82114-90A02 Wire, Engine Room, No.4ENGINE ROOM, NO.4 [08.1987 - 01.1990] HJ60..RHD NO.1; HJ6#..LHD W(RADIO),NO.1 |
82114-90A02 |
US $6.99 |
||
|
82114
|
82114
82114-90K05
Wire, Engine Room, No.4
[08.1987 - 01.1990] HJ60..ATM NO.2; HJ61..VX;HJ60..RHD;HJ6#..SOB COLD SPEC,NO.2 |
82114-90K05 |
— | ||
|
82121
|
82121
82121-90A01 Wire, Engine[08.1987 - 01.1990] HJ6# |
82121-90A01 |
US $6.26 |
||
|
82124
|
82124
82124-90A02 Wire, Engine, No.4[08.1987 - 01.1990] HJ61 |
82124-90A02 |
US $6.99 |
||
|
82125
|
82125
82125-90A03
Wire, Transmission
[08.1987 - 01.1990] HJ6#..MTM |
82125-90A03 |
— | ||
|
82131
|
82131
82131-90G87 Wire, CowlCOWL [08.1987 - 01.1990] HJ61 |
82131-90G87 |
US $2,271.36 |
||
|
82131
|
82131
82131-90G88 Wire, CowlCOWL [08.1987 - 01.1990] HJ61 COLD SPEC |
82131-90G88 |
US $2,271.36 |
||
|
82132
|
82132
82132-90A17 Wire, Cowl, No.2COWL, NO.2 [08.1987 - 01.1990] FJ62,HJ6#..GX,VX; HJ60..STD W(REAR WINDOW DEFOGGER) OR W(ONE TOUCH 2-4 SELECTOR) |
82132-90A17 |
US $55.76 |
||
|
82134
|
82134
82134-90A00 Wire, Cowl, No.4[08.1987 - 01.1990] HJ6# |
82134-90A00 |
US $4.22 |
||
|
82141
|
82141
82141-90A20 Wire, Instrument Panel[08.1987 - 01.1990] HJ61..VX; FJ62 W(CLOCK); HJ6#..GX,STD W(CLOCK) |
82141-90A20 |
US $38.58 |
||
|
82141
|
82141
82141-90A21 Wire, Instrument Panel[08.1987 - 01.1990] HJ61..VX W(DIFFERENTIAL LOCK); FJ62 W(DIFFERENTIAL LOCK) OR W(CLOCK & DIFFERENTIAL LOCK); HJ6#..GX,STD W(DIFFERENTIAL LOCK) OR W(CLOCK & DIFFERENTIAL LOCK) |
82141-90A21 |
US $38.58 |
||
|
82166
|
82166
82166-90A00 Wire, Console Box[08.1987 - 01.1990] HJ60..ATM; HJ6#..STD,VX; FJ62,HJ61..GX;HJ60..MTM..GX |
82166-90A00 |
US $31.16 |
||
|
82172
|
82172
82172-90A03 Wire, Roof, No.2ROOF, NO.2 [08.1987 - 01.1990] FJ62,HJ6#..LHD..(GX,VX) |
82172-90A03 |
US $91.73 |
||
|
82210C
|
82210C
90982-08115
Fusible Link
[08.1987 - 01.1990] HJ61 L=110,G,NO.1 |
90982-08115 |
— | ||
|
82210C
|
82210C
90982-08212
Fusible Link
[08.1987 - 01.1990] HJ61 L=120,GX2,B,L,NO.2 |
90982-08212 |
— | ||
|
82219
|
82219
82219-90A00
Wire, Thermo Sensor
[08.1987 - 01.1990] HJ6#..LHD..(GX,VX) W(ACCESSORY METER) |
82219-90A00 |
— | ||
|
82219
|
82219
82219-90K02
Wire, Thermo Sensor
[08.1987 - 01.1990] FJ62; HJ61..VX; HJ61..GX;HJ60..LHD..MTM..SRF..LUB W(MECHANICAL & ACCESSORY METER) |
82219-90K02 |
— | ||
|
82282A
|
82282A
82282-90A04
Wire, Diff Lock Indicator
[08.1987 - 01.1990] FJ62,HJ6# FRONT |
82282-90A04 |
— | ||
|
82282A
|
82282A
82282-90A05 Wire, Diff Lock Indicator[08.1987 - 01.1990] FJ62,HJ6# REAR |
82282-90A05 |
US $31.16 |
||
|
82345
|
82345
82345-12050 Diode[08.1987 - 08.1988] HJ61;HJ60..RHD NO.1 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-32020 Diode[08.1987 - 01.1990] FJ62,HJ6# NO.2 |
82345-32020 |
US $13.45 |
||
|
82670
|
82670
82670-90A01
Block Assy, Junction, No.1
[08.1987 - 01.1990] HJ61 NO.1 |
82670-90A01 |
— | ||
|
82670
|
82670
82670-90K02
Block Assy, Junction, No.1
[08.1987 - 01.1990] HJ60..ATM NO.2; HJ61..VX;HJ60..RHD;HJ6#..SOB COLD SPEC,NO.2 |
82670-90K02 |
— | ||
|
82821A
|
82821A
82821-12150 Cover, Connector(For Battery Terminal)[08.1987 - 01.1990] FJ62,HJ6# |
82821-12150 |
from US $6.35 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $14.16 |
||
|
8234532020
|
8234532020
82345-32020 Diode |
82345-32020 |
US $13.45 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9011908157
|
9011908157
90119-08157
New Genuine Part
|
90119-08157 |
— | ||
| replacement | |||||
|
9011908157
|
9011908157
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
|
9017905003
|
9017905003
90179-05003 NUT |
90179-05003 |
US $2.33 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.97 |
||
