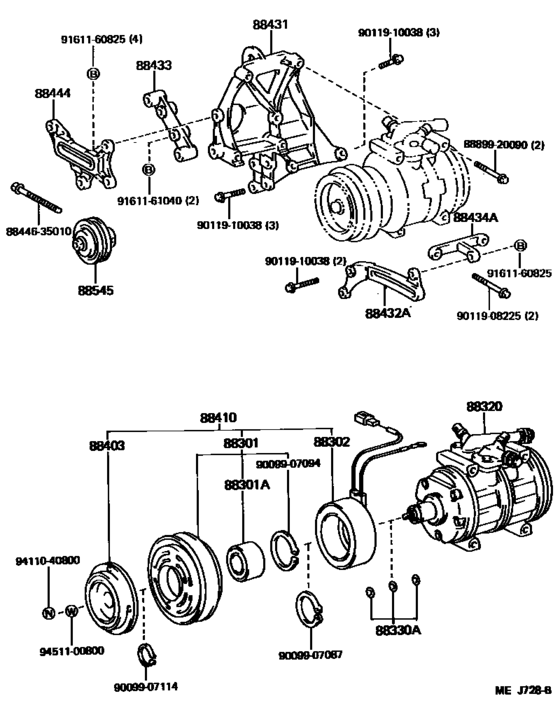

Heating & Air Conditioning - Compressor ([08.1987 - ] (8708- )LHD..MTM..LUB..GX) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88412-22030 |
— | ||
|
88301A
|
88301A
90099-10133
Bearing, Ball(For Clutch Pully)
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
90099-10133 |
— | ||
|
88302
|
88302
88411-25020
Stator Sub-Assy, Magnet Clutch
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88411-25020 |
— | ||
|
88320
|
88320
88320-60191
Compressor Assy, Cooler
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88320-60191 |
— | ||
|
88330A
|
88330A
88335-12050 Washer (For Magnet Clutch)[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88335-12050 |
from US $0.70 |
||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88403-12030 |
— | ||
|
88410
|
88410
88410-60070
Clutch Assy, Magnet
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88410-60070 |
— | ||
|
88431
|
88431
88431-60060
Bracket, Compressor Mounting, No.1
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88431-60060 |
— | ||
|
88432A
|
88432A
88437-60200
Bracket, Compressor Mounting, No.2
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88437-60200 |
— | ||
|
88433
|
88433
88437-60141
Bracket, Compressor Mounting, No.3
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88437-60141 |
— | ||
|
88434A
|
88434A
88437-60240
Bracket, Compressor Mounting, No.4
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88437-60240 |
— | ||
|
88444
|
88444
88444-60041
Bracket, Idle Pulley
[08.1987 - 08.1988] HJ6#..LHD..MTM..LUB..GX |
88444-60041 |
— | ||
|
88444
|
88444
88444-60042
Bracket, Idle Pulley
[08.1988 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88444-60042 |
— | ||
|
88545
|
88545
88440-35010 Pulley Assy, Idle[08.1987 - 08.1988] HJ6#..LHD..MTM..LUB..GX |
88440-35010 |
from US $59.98 |
||
|
88545
|
88545
88440-60030
Pulley Assy, Idle
[08.1988 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88440-60030 |
— | ||
|
8844635010
|
8844635010
88446-35010 Bolt, Idle Pulley |
88446-35010 |
from US $3.32 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009907087
|
9009907087
90099-07087
Bearing, Magnet Clutch
|
90099-07087 |
— | ||
|
9009907094
|
9009907094
90099-07094
Ring, Snap (For Magnet Clutch)
|
90099-07094 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
