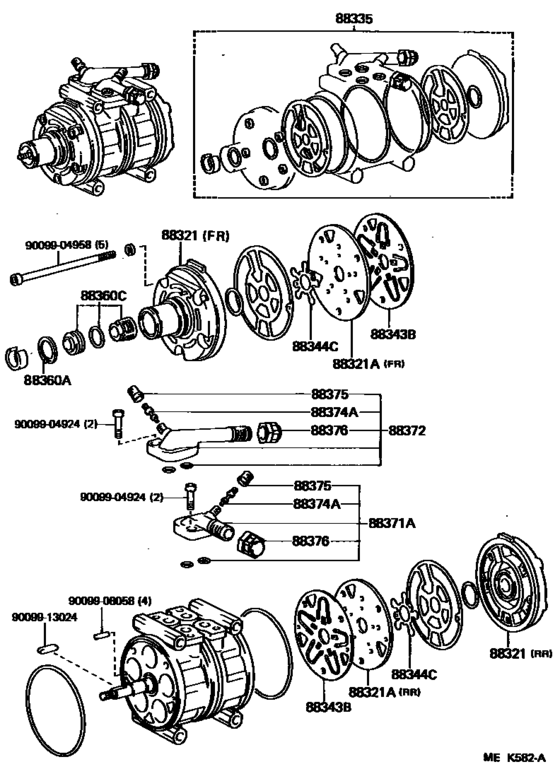

Heating & Air Conditioning - Compressor ([08.1987 - ] (8708- )LHD..MTM..LUB..GX) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX FRONT |
88321-14011 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX REAR |
88322-14011 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX FRONT |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX REAR |
88342-14010 |
— | ||
|
88335
|
88335
04881-10010
Gasket Kit, Cooler Compressor Overhaul
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
04881-10010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88335-28020 |
— | ||
|
88343B
|
88343B
88343-14011
Reed, Suction Valve
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88343-14011 |
— | ||
|
88344C
|
88344C
88344-14011
Reed Sub-Assy, Valve
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88344-14011 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-40010
Seal Assy, Cooler Compressor Shaft
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88360-40010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-26020 Seal Assy, Cooler Compressor Shaft[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88360-26020 |
US $125.25 |
||
|
88371A
|
88371A
88371-22120
Valve, Cooler Compressor Suction Service
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88371-22120 |
— | ||
|
88372
|
88372
88372-60041
Valve, Cooler Compressor Discharge Service
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88372-60041 |
— | ||
|
88374A
|
88374A
88374-12020
Valve, Service, No.1
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88374-12020 |
— | ||
| replacement | |||||
|
88374A
|
88374A
88374-20020 Valve, Service, No.1[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-20010
Cap, Service Valve (For Cooler Pipe)
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX DISCHARGE |
88375-20010 |
— | ||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX SUCTION |
88375-30270 |
— | ||
|
88376
|
88376
88376-26010
Cap, Blind
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX SUCTION |
88376-26010 |
— | ||
|
88376
|
88376
88376-26020
Cap, Blind
[08.1987 - 01.1990] HJ6#..LHD..MTM..LUB..GX DISCHARGE |
88376-26020 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009904958
|
9009904958
90099-04958
Bolt, Through
|
90099-04958 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9009913024
|
9009913024
90099-13024
Key, Compressor Crankshaft
|
90099-13024 |
— | ||
