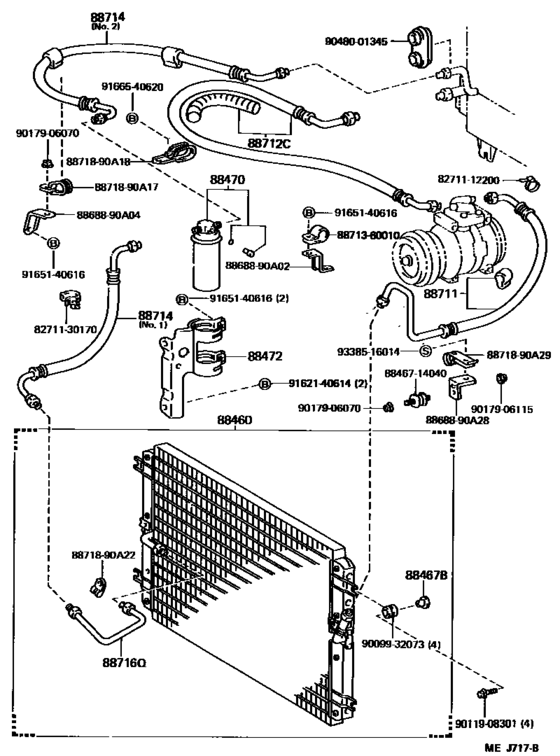

Heating & Air Conditioning - Cooler Piping ([08.1987 - ] (8708- )LHD..MTM..LUB..GX) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-90A15
Condenser Assy, Cooler
[08.1988 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..GX |
88460-90A15 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-90A16
Condenser Assy, Cooler
[08.1988 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..GX |
88460-90A16 |
— | ||
|
88460
|
88460
88460-90A16
Condenser Assy, Cooler
[08.1987 - 08.1988] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88460-90A16 |
— | ||
|
88467B
|
88467B
88469-22010
Collar(For Radiator)
[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88469-22010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88470-14010 |
— | ||
| replacement | |||||
|
88470
|
88470
04884-33110 New Genuine Part[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
04884-33110 |
US $85.28 |
||
|
88472
|
88472
88472-90A01
Bracket, Receiver Tank, No.1
[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88472-90A01 |
— | ||
|
88711
|
88711
88711-90A10 Hose, Cooler Refrigerant Discharge, No.1[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88711-90A10 |
US $227.14 |
||
|
88712C
|
88712C
88712-90A13 Hose, Cooler Refrigerant Suction, No.1SUCTION [08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88712-90A13 |
US $311.58 |
||
|
88714
|
88714
88721-90A07
Hose, Cooler Refrigerant Liquid, No.1
[08.1987 - 01.1990] HJ60..HRF..LUB NO.1; HJ61..LUB..GX NO.1; HJ60..LHD..MTM..SRF..LUB NO.1 |
88721-90A07 |
— | ||
|
88714
|
88714
88721-90A08
Hose, Cooler Refrigerant Liquid, No.1
[08.1987 - 01.1990] HJ60..HRF..LUB NO.2; HJ61..LUB..GX NO.2; HJ60..LHD..MTM..SRF..LUB NO.2 |
88721-90A08 |
— | ||
|
88716Q
|
88716Q
88716-90A44
Pipe, Cooler Refrigerant Liquid, Q
[08.1987 - 01.1990] HJ60..HRF..LUB; HJ61..LUB..GX; HJ60..LHD..MTM..SRF..LUB |
88716-90A44 |
— | ||
|
8868890A02
|
8868890A02
88688-90A02
Bracket, Cooler Diaphragm
|
88688-90A02 |
— | ||
|
8868890A04
|
8868890A04
88688-90A04
Bracket, Cooler Diaphragm
|
88688-90A04 |
— | ||
|
8868890A28
|
8868890A28
88688-90A28
Bracket, Cooler Diaphragm
|
88688-90A28 |
— | ||
|
8871890A17
|
8871890A17
88718-90A17
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A17 |
— | ||
|
8871890A18
|
8871890A18
88718-90A18
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A18 |
— | ||
|
8871890A22
|
8871890A22
88718-90A22
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A22 |
— | ||
|
8871890A29
|
8871890A29
88718-90A29
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A29 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271130170
|
8271130170
82711-30170 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30170 |
US $9.17 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8871360010
|
8871360010
88713-60010
Hose, Cooler Refrigerant Suction, No.2
|
88713-60010 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9048001345
|
9048001345
90480-01345
New Genuine Part
|
90480-01345 |
— | ||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.82 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
