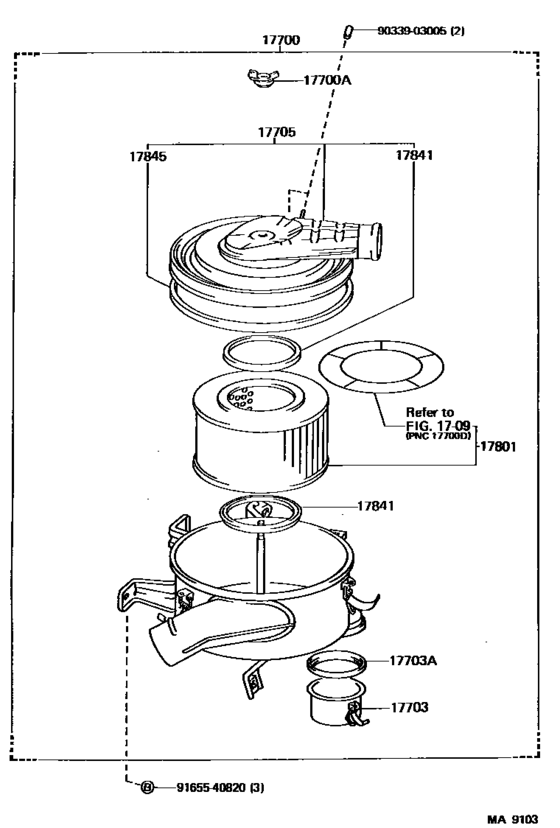

Air Cleaner ([10.1985 - ] (8510- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- HJ61
- body
- WGV
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-68180 Cleaner Assy, Air[10.1985 - 08.1986] 12HT..HJ61 |
17700-68180 |
US $428.06 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1980 - 08.1987] 3B..BJ60; 12HT,2H..HJ6#; 2F,3F..FJ6#..ARL,GEN,ME CYCLONE OR OIL BATH |
90175-08008 |
from US $2.45 |
||
|
17703
|
17703
17703-68010
Case Sub-Assy, Bottom Air Cleaner Filter
[10.1985 - 08.1987] 12HT..HJ61 |
17703-68010 |
— | ||
| replacement | |||||
|
17703
|
17703
17703-17010 Cap Sub-Assy, Dust[10.1985 - 08.1987] 12HT..HJ61 |
17703-17010 |
from US $11.51 |
||
|
17703A
|
17703A
90430-98001
Gasket(For Bottom Air Cleaner Filter Case)
[10.1985 - 08.1987] 12HT..HJ61 |
90430-98001 |
— | ||
|
17705
|
17705
17705-68120
Cap Sub-Assy, Air Cleaner
[10.1985 - 08.1987] 12HT..HJ61 |
17705-68120 |
— | ||
|
17801
|
17801
17801-68030 Element Sub-Assy, Air Cleaner Filter[10.1985 - 08.1986] 12HT..HJ61 |
17801-68030 |
US $83.64 |
||
|
17841
|
17841
17841-68010 Gasket, Filter Element[08.1980 - 08.1987] 3B..BJ60 PAPER ELEMENT; 12HT,2H..HJ6# PAPER ELEMENT |
17841-68010 |
from US $2.80 |
||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[10.1982 - 08.1987] 3B..BJ60 *G,L=933; 3F..FJ62 *G,L=933; 12HT,2H..HJ6# *G,L=933 |
17845-61011 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
