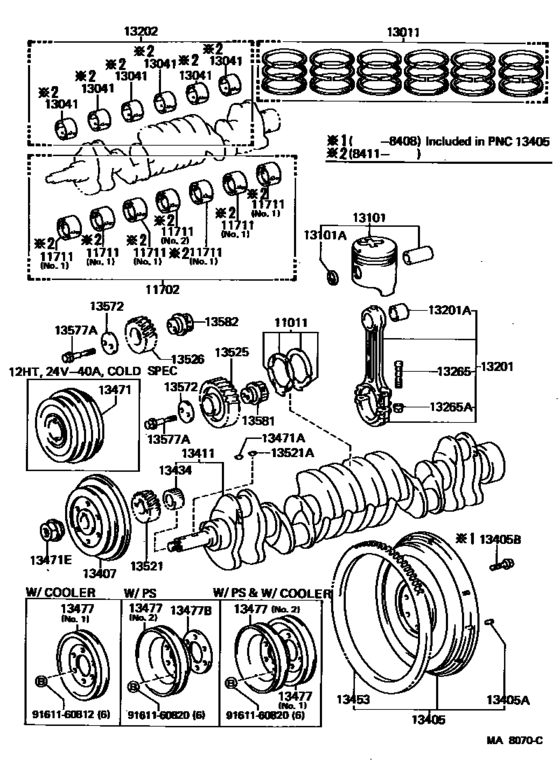

Crankshaft & Piston ([08.1980 - ] (8008- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGV
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-68020
Washer Set, Crankshaft Thrust
[10.1985 - 08.1987] 12HT,2H..HJ6# STD,STD |
11011-68020 |
— | ||
|
11011
|
11011
11012-68020
Washer Set, Crankshaft Thrust
[10.1985 - 08.1987] 12HT,2H..HJ6# O/S 0.125,O/S 0.125 |
11012-68020 |
— | ||
|
11011
|
11011
11013-68020
Washer Set, Crankshaft Thrust
[10.1985 - 08.1987] 12HT,2H..HJ6# O/S 0.250,O/S 0.250 |
11013-68020 |
— | ||
|
11702
|
11702
11704-68021 Bearing Set, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# U/S 0.25,U/S 0.25 |
11704-68021 |
US $361.09 |
||
|
11702
|
11702
11705-68021 Bearing Set, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# U/S 0.50,U/S 0.50 |
11705-68021 |
US $347.98 |
||
|
11702
|
11702
11706-68021 Bearing Set, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# U/S 0.75,U/S 0.75 |
11706-68021 |
US $347.98 |
||
|
11702
|
11702
11707-68021 Bearing Set, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# U/S 1.00,U/S 1.00 |
11707-68021 |
US $347.98 |
||
|
11711
|
11711
11071-68020-01 Bearing, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# NO.2,MARK"1",MARK 1 |
11071-68020-01 |
US $53.87 |
||
|
11711
|
11711
11071-68020-02 Bearing, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# NO.2,MARK"2",MARK 2 |
11071-68020-02 |
US $56.61 |
||
|
11711
|
11711
11071-68020-03
Bearing, Crankshaft
[10.1985 - 08.1987] 12HT,2H..HJ6# NO.2,MARK"3",MARK 3 |
11071-68020-03 |
— | ||
|
11711
|
11711
11701-68020-01
Bearing, Crankshaft
[11.1984 - 08.1987] 12HT,2H..HJ6# NO.1,MARK"1",MARK 1 |
11701-68020-01 |
— | ||
|
11711
|
11711
11701-68020-02 Bearing, Crankshaft[11.1984 - 08.1987] 12HT,2H..HJ6# NO.1,MARK"2",MARK 2 |
11701-68020-02 |
US $63.77 |
||
|
11711
|
11711
11701-68020-03 Bearing, Crankshaft[10.1985 - 08.1987] 12HT,2H..HJ6# NO.1,MARK"3",MARK 3 |
11701-68020-03 |
US $60.72 |
||
|
13011
|
13011
13011-68030 Ring Set, Piston[10.1985 - 08.1987] 12HT..HJ61 STD,STD |
13011-68030 |
US $470 |
||
|
13011
|
13011
13013-68030 Ring Set, Piston[10.1985 - 08.1987] 12HT..HJ61 O/S 0.50,O/S 0.50 |
13013-68030 |
US $470 |
||
|
13041
|
13041
13041-68040-01 Bearing, Connecting Rod[10.1985 - 08.1987] 12HT,2H..HJ6# MARK"1",MARK 1 |
13041-68040-01 |
US $27.26 |
||
|
13041
|
13041
13041-68040-02 Bearing, Connecting Rod[10.1985 - 08.1987] 12HT,2H..HJ6# MARK"2",MARK 2 |
13041-68040-02 |
US $27.26 |
||
|
13101
|
13101
13101-68020
Piston Sub-Assy, W/pin
[10.1985 - 08.1987] 12HT..HJ61 STD,STD |
13101-68020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-68020-02
Piston Sub-Assy, W/pin
[10.1985 - 08.1987] 12HT..HJ61 STD,STD |
13101-68020-02 |
— | ||
|
13101
|
13101
13103-68020
Piston Sub-Assy, W/pin
[10.1985 - 08.1987] 12HT..HJ61 O/S 0.50,O/S 0.50 |
13103-68020 |
— | ||
|
13101A
|
13101A
90521-34004 Ring, Hole Snap(For Piston Pin)[10.1985 - 08.1987] 12HT..HJ61 |
90521-34004 |
US $2.48 |
||
|
13201
|
13201
13201-68020
Rod Sub-Assy, Connecting
[10.1985 - 08.1987] 12HT..HJ61 |
13201-68020 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-69095
Rod Sub-Assy, Connecting
[10.1985 - 08.1987] 12HT..HJ61 |
13201-69095 |
— | ||
|
13201A
|
13201A
90999-73108
Bush(For Connecting Rod Small End)
[10.1985 - 08.1987] 12HT..HJ61 |
90999-73108 |
— | ||
|
13202
|
13202
13204-68040
Bearing Set, Connecting Rod
[10.1985 - 08.1987] 12HT,2H..HJ6# U/S 0.25,U/S 0.25 |
13204-68040 |
— | ||
|
13202
|
13202
13205-68040 Bearing Set, Connecting Rod[10.1985 - 08.1987] 12HT,2H..HJ6# U/S 0.50,U/S 0.50 |
13205-68040 |
from US $123.16 |
||
|
13202
|
13202
13206-68040 Bearing Set, Connecting Rod[10.1985 - 08.1987] 12HT,2H..HJ6# U/S 0.75,U/S 0.75 |
13206-68040 |
US $177.63 |
||
|
13202
|
13202
13207-68040 Bearing Set, Connecting Rod[10.1985 - 08.1987] 12HT,2H..HJ6# U/S 1.00,U/S 1.00 |
13207-68040 |
US $177.63 |
||
|
13265
|
13265
13265-68010 Bolt, Connecting Rod[08.1980 - 08.1987] 12HT,2H..HJ6# |
13265-68010 |
US $22.34 |
||
|
13265A
|
13265A
90179-12015 Nut, Hexagon(For Connecting Rod Bolt)[08.1980 - 08.1987] 12HT,2H..HJ6# |
90179-12015 |
US $4.84 |
||
|
13405
|
13405
13405-68011
Flywheel Sub-Assy
[07.1984 - 08.1987] 12HT,2H..HJ6#..MTM |
13405-68011 |
— | ||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1980 - 08.1987] 3B..BJ60 L=22,OD=10,L=22,OD=10; 12HT,2H..HJ6#..MTM L=22,OD=10,L=22,OD=10; 2F,3F..FJ6#..MTM L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $0.97 |
||
|
13405B
|
13405B
90105-12039 Bolt, Flywheel Setting[08.1980 - 08.1987] 12HT,2H..HJ6#..MTM |
90105-12039 |
US $4.84 |
||
|
13411
|
13411
13401-68020
Crankshaft
[10.1985 - 08.1987] 12HT..HJ61 |
13401-68020 |
— | ||
|
13434
|
13434
13519-68010
Spline, Oil Pump Drive
[08.1980 - 08.1987] 12HT,2H..HJ6# |
13519-68010 |
— | ||
|
13453
|
13453
13453-47010 Gear, Flywheel Ring[08.1980 - 08.1987] 12HT,2H..HJ6#..MTM N=108 |
13453-47010 |
US $297.02 |
||
|
13471
|
13471
13470-68020
Pulley, Crankshaft
[10.1985 - 08.1987] 12HT..HJ61; 2H..HJ60..ARL; 2H..HJ60..EUR 24V-40A OR COLD SPEC; 2H..HJ60..GEN 12V-80A |
13470-68020 |
— | ||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[08.1980 - 08.1987] 12HT,2H..HJ6# |
95161-10519 |
from US $1.60 |
||
|
13471E
|
13471E
90179-22062 Nut(For Crankshaft Pulley)[08.1980 - 08.1987] 12HT,2H..HJ6# |
90179-22062 |
US $6.09 |
||
|
13521
|
13521
13521-68010
Gear Or Sprocket, Crankshaft Timing
[08.1980 - 08.1987] 12HT,2H..HJ6# |
13521-68010 |
— | ||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[08.1980 - 09.1986] 3B..BJ60; 12HT,2H..HJ6# |
95161-10519 |
from US $1.60 |
||
|
13525
|
13525
13525-68010
Gear, Idle, No.1
[08.1980 - 08.1987] 12HT,2H..HJ6# N=51 |
13525-68010 |
— | ||
|
13526
|
13526
13526-68010
Gear, Idle, No.2
[08.1980 - 08.1987] 12HT,2H..HJ6# N=37 |
13526-68010 |
— | ||
|
13572
|
13572
13572-68010 Plate, Idle Gear Thrust[08.1980 - 08.1987] 12HT,2H..HJ6# |
13572-68010 |
US $17.04 |
||
|
13577A
|
13577A
90105-10036 Bolt, Hexagon(For Idle Gear Bolt Lock)[08.1980 - 08.1987] 12HT,2H..HJ6# |
90105-10036 |
US $4.95 |
||
|
13581
|
13581
13581-68010 Shaft, Idle Gear, No.1[08.1980 - 08.1987] 12HT,2H..HJ6# |
13581-68010 |
US $199.47 |
||
|
13582
|
13582
13582-68010 Shaft, Idle Gear, No.2[08.1980 - 08.1987] 12HT,2H..HJ6# |
13582-68010 |
US $221.31 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
